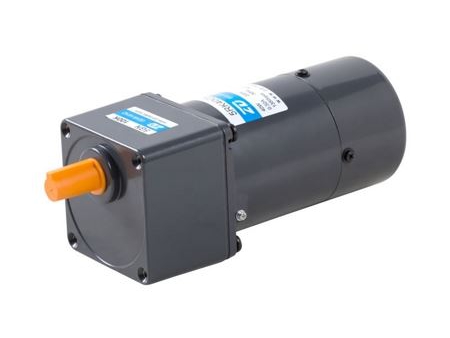

80mm 25W Brake Motor

80mm 25W  Brake Motor
80mm 25W  Brake Motor
80mm 25W  Brake Motor
80mm 25W  Brake Motor
80mm 25W  Brake Motor
Request a Quote

Motor Specifications
Model Rating Output
Power
W
Voltage
V
Frequency
Hz
Current
A
Starting Torque
mN.m
Rated Torque
mN.m
Rated Speed
r/min
Capacitor
μF
4RK25GN-AM 30min 25 1ph 100 50 0.59 160 200 1250 10
60 0.69 140 165 1550
4RK25GN-EM 30min 25 1ph 110 60 0.45 140 165 1550 8.0
1ph 120 0.50
4RK25GN-CM 30min 25 1ph 220 50 0.29 140 200 1250 2.2
1ph 230 0.30 160
4RK25GN-HM 30min 25 1ph 220 60 0.35 140 165 1550 2.2
1ph 230
4RK25GN-SM 30min 25 3ph 220 50 0.185 350 200 1250 -
60 0.170 250 165 1550
4RK25GN-S3M 30min 25 3ph 380 50 0.107 350 200 1250 -
60 0.098 250 165 1550
Gear Motor-Torque TableAllowance Torque Unit: N.m
Type
Motor/Gearhead
Gear Ratio 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Speed
r/min
50Hz 200 166 120 100 83 60 50 41 30 25 20 16 15 12 10 8
60Hz 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
4RK25GN-AM
4RK25GN-EM
4RK25GN-CM
4RK25GN-HM
4RK25GN-SM
4RK25GN-S3M

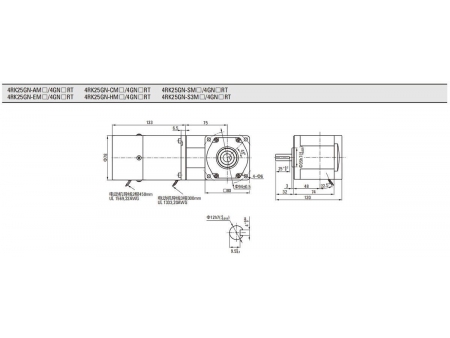

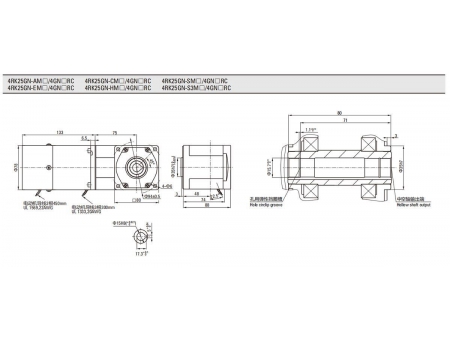

4GN()RC
4GN()RT
Allowance
Torque
50Hz 0.99 1.18 1.64 1.97 2.37 3.29 3.95 4.73 6.58 7.10 8.00 8.00  8.00 8.00 8.00 8.00
60Hz 0.80 0.95 1.33 1.59 1.91 2.65 3.18 3.82 5.30 5.73 7.16 8.00  8.00 8.00 8.00 8.00
Type
Motor/Gearhead
Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Speed r/min 50Hz 500 417 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 2.5 10 8.3 7.5
60Hz 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9
4RK25GN-AM
4RK25GN-EM
4RK25GN-CM
4RK25GN-HM
4RK25GN-SM
4RK25GN-S3M
4GN()K 50Hz 0.49 0.58 0.81 0.97 1.20 1.50 1.55 2.00 2.40 2.90 3.17 3.70 4.40 5.30 5.57 6.60 7.90 8.00 8.00 8.00 8.00 8.00 8.00 8.00
60Hz 0.40 0.48 0.67 0.80 10.0 1.20 1.25 1.70 2.00 2.40 2.64 3.00 3.60 4.30 4.49 5.40 6.50 8.00 8.00 8.00 8.00 8.00 8.00 8.00

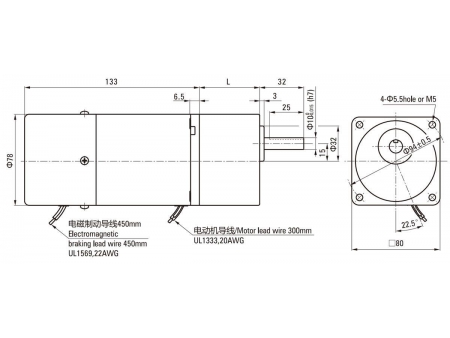

L1=43.5mm
