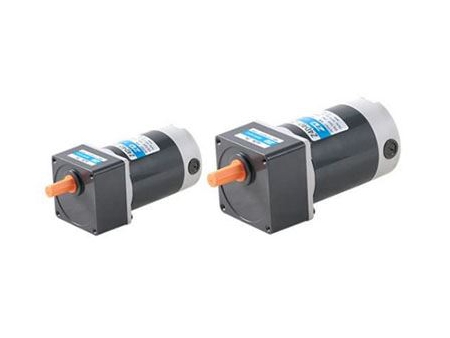

80mm 25W Brush DC Gear Motor Manufacturer

80mm 25W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-5-brush-dc-gear-motor.html

Motor Specifications

Mode	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z4D25-12	12	25	3200	1.4Max.	3100	77	3.6	2000	1.7
Z4D25-24	24	25	3000	0.7Max	2850	84	1.7	2000	1.7
Z4025-90	90	25	3200	0.2Max.	3000	80	0.5	2000	1.7

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	380	316	228	190	158	114	95	79	57	47	38	90	100	120	150	180
Z4D25-24GN-28.5S	4GN()RC 4GN()RT	0.46	0.55	0.76	0.92	1.10	1.53	1.80	2.20	3.05	3.30	4.12	4.95	5.50	6.60	80.0	80.0
Z4D25-24GN-28.5S	4GN()RC 4GN()RT	1.69	5.61	7.75	9.38	11.2	15.6	18.4	22.4	31.1	33.7	42.0	50.5	56.1	67.3	80.0	80.0

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z4D25-24GN	Speed r/min	950	792	570	475	380	317	285	228	190	158	143	114	95	79	71	57	48	38	32	29	24	19	16	14
	4GN()K	0.20	0.24	0.34	0.41	0.51	0.61	0.68	0.85	1.02	1.22	1.36	1.53	1.83	2.20	2.44	3.05	3.30	4.12	4.95	5.50	6.60	8.00	8.00	8.00
	4GN()K	1.99	2.39	3.32	3.99	4.99	5.98	6.65	8.31	10.0	12.0	13.3	15.0	18.0	21.5	23.9	29.9	32.3	40.4	48.5	53.9	64.6	80.0	80.0	80.0

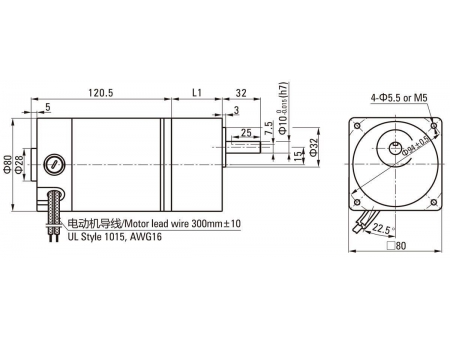

L1=42.5mm
