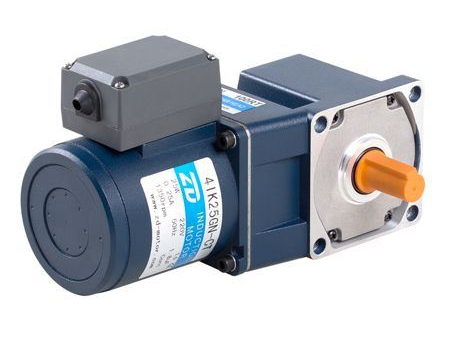

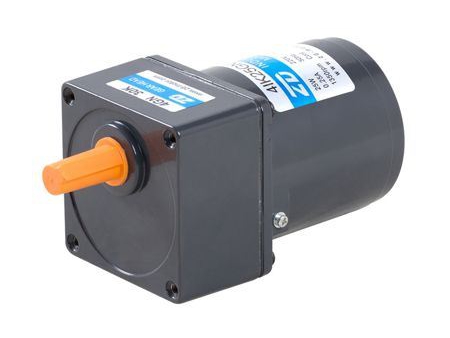

80mm 25W Induction Motor

Request a Quote

View All: http://zd-drivers.com/1-1-3-induction-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
4IK25GN-A	25	1ph 100	50	0.500	120	200	1250	8.0
			60	0.550		165	1550
4IK25GN-E	25	1ph 110	60	0.450	120	165	1550	7.0
		1ph 120		0.500
4IK25GN-C	25	1ph 220	50	0.250	120	200	1250	1.8
		1ph 230		0.230
4IK25GN-H	25	1ph 220	60	0.230	120	165	1550	1.8
		1ph 230
4IK25GN-S	25	3ph 220	50	0.185	350	200	1250	-
			60	0.170	250	165	1550
4IK25GN-S3	25	3ph 380	50	0.107	350	200	1250	-
			60	0.098	250	165	1550

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
4IK25GN-A 4IK25GN-E 4IK25GN-C 4IK25GN-H 4IK25GN-S 4IK25GN-S3	4GN()RC 4GN()RT	Allowance Torque	50Hz	0.99	1.18	1.64	1.97	2.37	3.29	3.95	4.73	6.58	7.10	8.00	8.00	8.00	8.00	8.00	8.00
	4GN()RC 4GN()RT	Allowance Torque	60Hz	0.80	0.95	1.33	1.59	1.91	2.65	3.18	3.82	5.30	5.73	7.16	8.00	8.00	8.00	8.00	8.00

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	2.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	2.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
4IK25GN-A 4IK25GN-E 4IK25GN-C 4IK25GN-H 4IK25GN-S 4IK25GN-S3	4GN()K	50Hz	0.49	0.58	0.81	0.97	1.20	1.50	1.55	2.00	2.40	2.90	3.17	3.70	4.40	5.30	5.57	6.60	7.90	8.00	8.00	8.00	8.00	8.00	8.00	8.00
	4GN()K	60Hz	0.40	0.48	0.67	0.80	1.00	1.20	1.25	1.70	2.00	2.40	2.64	3.00	3.60	4.30	4.49	5.40	6.50	8.00	8.00	8.00	8.00	8.00	8.00	8.00

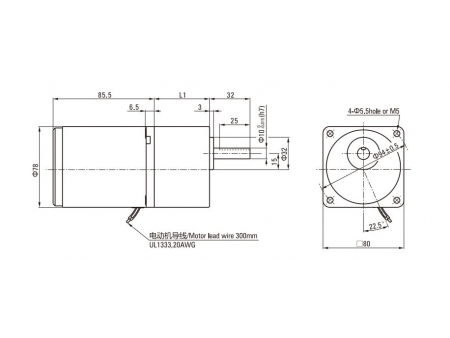

L1=43.5mm
