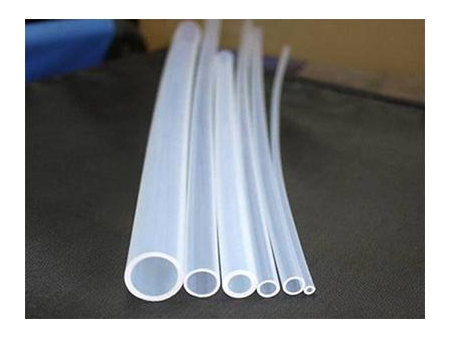

PTFE Heat Shrink Tubing
Model: CB-PTFE
Material: Irradiated cross-linked modified PTFE
Shrink ratio: 2:1
Description

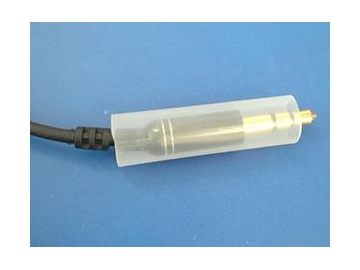

PTFE heat shrink tubing can be used as coating for chemical accessories, thanks to its outstanding diesel resistance, acid resistance, alkali resistance and corrosion resistance properties, thus allowing it to be used as corrosion resistant heat shrink tubing. Used as insulating protection tubing, the zero halogen heat shrinkable tubing is designed to provide an excellent high temperature resistance, low temperature resistance and insulating coating for electrical components. The PTFE heat shrink tubing also provides coating to accessories such as rollers in many industries, including dyeing, printing, chemical and paper. Rollers protected by PTFE tubing have no sticky residue accumulation thanks to the tubing’s lubricity, and will have little to no impact on repeated mechanical component movement because of the tubing’s lower friction coefficient.
Standard: AS23053/12
Size| Size | Inside diameter | Wall thickness after recovery (mm) | |
| Min. inside diameter as supplied | Max. inside diameter after recovery | ||
| Awg 30 | 0.8 | 0.38 | 0.23 |
| Awg 28 | 0.9 | 0.46 | 0.23 |
| Awg 26 | 1.1 | 0.53 | 0.25 |
| Awg 24 | 1.2 | 0.66 | 0.25 |
| Awg 22 | 1.4 | 0.81 | 0.30 |
| Awg 20 | 1.5 | 0.97 | 0.30 |
| Awg 18 | 1.9 | 1.17 | 0.30 |
| Awg 16 | 2.3 | 1.47 | 0.30 |
| Awg 14 | 3.0 | 1.83 | 0.30 |
| Awg 12 | 3.8 | 2.31 | 0.30 |
| Awg 10 | 4.8 | 2.84 | 0.30 |
| Awg 8 | 6.1 | 3.53 | 0.38 |
| Awg 6 | 7.6 | 4.41 | 0.38 |
| Awg 4 | 9.4 | 5.53 | 0.38 |
| Awg 2 | 10.9 | 6.93 | 0.38 |
| Awg 0 | 11.9 | 8.69 | 0.38 |
Standard Color: Clear (Natural)
* Other sizes are available upon special order
| Item | Test method | Unit | Specifications |
| Specific gravity | ASTM D792 | G/cm3 | 2.16 |
| Operating temperature | ℃ | -55℃ to 260℃ | |
| Min. full recovery temperature: | °C | 327°C | |
| Tensile strength | ASTM D638 | M Pa | 24.5 |
| Elongation at break | ASTM D638 | % | 350 |
| Bending modulus | ASTM D790 | M Pa | 490 |
| Impact strength | ASTM D256 23℃-54℃j/m | No crack | |
| Hardness (shore) | ASTM D2240 | Shore D | 55 |
| Coefficient of dynamic friction | 0.1 | ||
| Flammability | UL-224 | VW-1 | |
| Dielectric constant 103-106hz | ASTM D150 | 2.1 | |
| Dielectric dissipation factor 106hz | ASMT D150 | 0.0002 | |
| Arc resistance | ASMT D495 | S | ﹥300 |
| Linear coefficient of expansion | ASTM D257 | Ώ/cm | ﹥1018 |
| Weather resistance | "Weather-o-meter"(2000h) | No crack | |
| Fluid resistance | ASTM D543 | Excellent | |
| Chemical resistance | ASTM D543 | Excellent |
- The operating temperature of this heat shrink tubing is -55℃~260℃.
- The minimum shrink temperature of this heat shrink tubing is 327℃.
