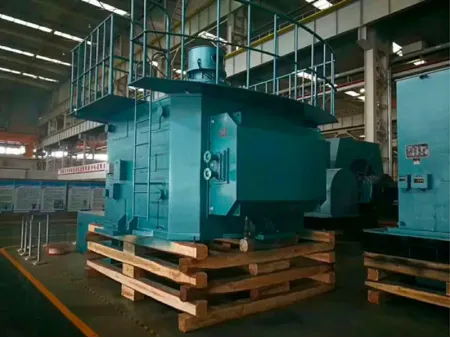

High Voltage Three-Phase AC Synchronous Motor

High Voltage Three-Phase AC Synchronous Motor
High Voltage Three-Phase AC Synchronous Motor
Request a Quote
View All: http://semc-motors.com/1-4-8-high-voltage-three-phase-ac-synchronous-motor.html
TL/TDL Series
High voltage electric motor for industrial applications

Our high voltage three-phase AC synchronous motors (TL/TDL series) present reliable performance, low temperature rise, low loss, high efficiency, low vibration, large starting torque, simple structure, and easy maintenance. They are mainly used in power, metallurgy, petroleum, chemical, and coal mining industries, to drive blowers, water pumps, motor generator sets, and other general machinery.

In addition, our motors comply with JB/T8667.2, and their power grades and installation dimensions meet IEC standards.

  • Power: 500-15000kW
  • Voltage: 6000V/10000V
  • Speed: 375/333/300/250/214/188/167/150/136/125RPM
  • Frequency: 50/60Hz
  • Protection degree: IP23/IP44/IP54
  • Insulation class: class F (or class B)
  • Duty cycle: S1
  • Cooling method: IC01, IC81W
  • Mounting method: IM8421
  • Standard: IEC, GB
