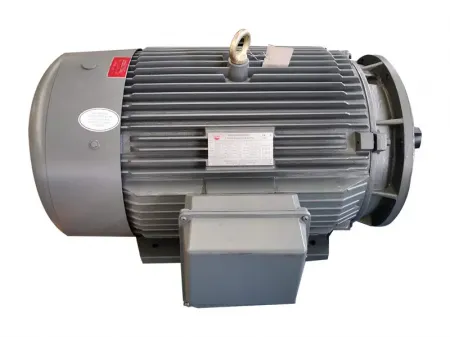

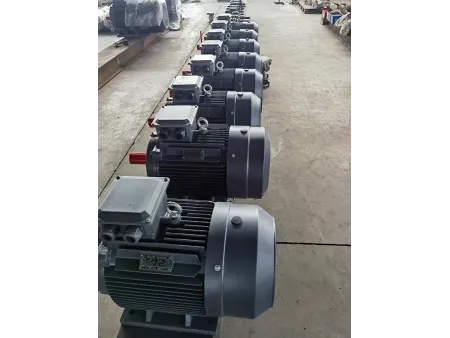

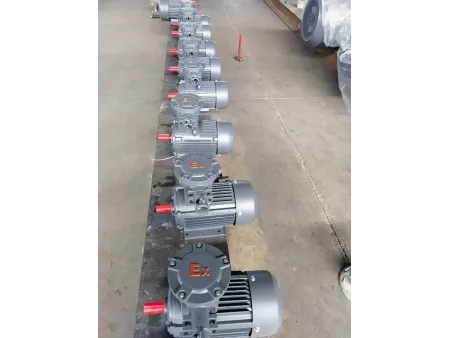

Three-Phase Asynchronous AC Motor

Request a Quote

Website: http://semc-motors.com/1-3-1-three-phase-asynchronous-ac-motor.html

YE3 Series

Electric motor compliant with energy efficiency class up to IE4

Our three-phase asynchronous AC motors (YE3 series) are highly efficient and energy-saving, significantly reducing power consumption compared to traditional motors. With lower energy loss and carbon emissions, our motors offer frequency control for improved efficiency, and are characterized by high starting torque, low noise, low vibration, and long lifespan, making them ideal for noise-sensitive applications and reducing maintenance costs.

• Power: 0.18-200kW
• Voltage: 230/380/440/460/575V
• Frequency: 50/60Hz
• Number of poles: 2/4/6/8 poles
• Protection degree: IP55/IP56
• Insulation class: class F (155℃)/ class H (180℃)
• Efficiency: IE2 (High Efficiency), IE3 (Premium Efficiency), IE4 (Super Premium Efficiency)
• Mounting type: B3/B5/B34/B35

Specifications

Model	Output Power (kW)	Rated Current (A)	Speed (RPM)	Efficiency (%)	Locked-rotor Torque / Rated Torque (Tst/TN)	Locked-rotor Current / Rated Current (Ist/IN)	Maximum Torque / Rated Torque (Tmax/TN)	Noise (dB(A))	Type
Synchronous Speed (1500 RPM)
YE3-80M2-4	0.75	1.8	1430	82.5	0.75	2.3	6.6	2.3	56
YE3-90S-4	1.1	2.6	1430	84.1	0.76	2.3	6.8	2.3	59
YE3-90L-4	1.5	3.5	1430	85.3	0.77	2.3	7.0	2.3	59
YE3-100L1-4	2.2	4.8	1440	86.7	0.81	2.3	7.6	2.3	64
YE3-100L2-4	3	6.3	1440	87.7	0.82	2.3	7.6	2.3	64
YE3-112M-4	4	8.4	1455	88.6	0.82	2.2	7.8	2.3	65
YE3-132S-4	5.5	11.2	1465	89.6	0.83	2.0	7.9	2.3	71
YE3-132M-4	7.5	15.0	1465	90.4	0.84	2.0	7.5	2.3	71
YE3-160M-4	11	21.5	1470	91.4	0.85	2.2	7.7	2.3	73
YE3-160L-4	15	28.8	1470	92.1	0.86	2.2	7.8	2.3	73
YE3-180M-4	18.5	35.3	1470	92.6	0.86	2.0	7.8	2.3	76
YE3-180L-4	22	41.8	1470	93.0	0.86	2.0	7.8	2.3	76
YE3-200L-4	30	56.6	1475	93.6	0.86	2.0	7.3	2.3	76
YE3-225S-4	37	69.6	1480	93.9	0.86	2.0	7.4	2.3	78
YE3-225M-4	45	84.4	1480	94.2	0.86	2.0	7.4	2.3	78
YE3-250M-4	55	103	1485	94.6	0.86	2.2	7.4	2.3	79
YE3-280S-4	75	136	1490	95.0	0.88	2.0	6.9	2.3	80
YE3-280M-4	90	163	1490	95.2	0.88	2.0	6.9	2.3	80
YE3-315S-4	110	197	1490	95.4	0.89	2.0	7.0	2.2	88
YE3-315M-4	132	236	1490	95.6	0.89	2.0	7.0	2.2	88
YE3-315L1-4	160	285	1490	95.8	0.89	2.0	7.1	2.2	88
YE3-315L2-4	200	352	1490	96.0	0.90	2.0	7.1	2.2	88
YE3-355M1-4	220	387	1490	96.0	0.90	2.0	7.1	2.2	95
YE3-355M2-4	250	440	1490	96.0	0.90	2.0	7.1	2.2	95
YE3-355L1-4	280	492	1490	96.0	0.88	2.0	7.1	2.2	95
YE3-355L2-4	315	554	1490	96.0	0.88	2.0	7.1	2.2	95

Features

• Our three-phase asynchronous AC moors are certified by UL, CSA, CE, CCC, and PSE for global sales.
• Our motors are produced to international standards using automated robotics.
• Our motors features precision die-cast housings, light weight, and durability with high-temperature annealing.
• Our motors present low vibration and noise, high torque, with corrosion-resistant paint and components from international brands.
• Our three-phase asynchronous AC motor meets efficiency index level 2, in compliance with GB18613-2012 regulation.
