ET60/40(Easy Touch) industrial borescopes feature a direct/side dual camera system, which easily presents a side view where direct views are undetectable. The direct view and side view can be switched freely through the touch screen, giving users a comprehensive understanding of internal part conditions. This borescope is your best choice for situations where interiors are so small a direct lens will not directly detect part sides, which is why this borescope is most often used to observe welding seams inside parts, as well as the inspection of narrow, long pipes.

Features

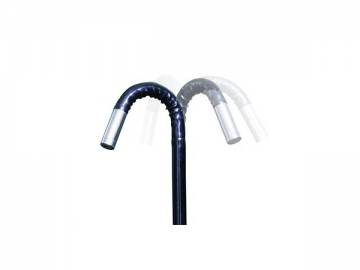

  • The angled motor is easy to control and features a 360° adjustment while supporting three modes in fast, slow, and hover. The bending process is completely silent, the control modes are either mechanical or motor controlled.

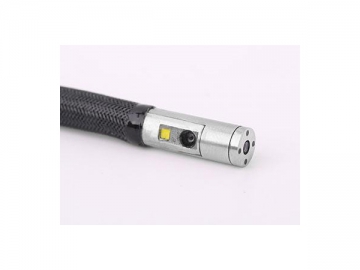

  • Dual camera with direct and side view supports 6.0mm/4.0mm specifications, as well as multi-light source switching, multi-image comparison, multi-mode bending control and other functions to meet your diverse detection requirements.

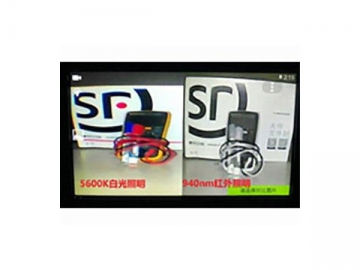

    1. Infrared light/white light UV-light/ various types of light source lighting. 940nm infrared light ensures a clear night vision up to 10 meters away from the user’s body, while the 5600k white light is a vivid reduction of the color environment of your detection target; UV-light meets professional investigation needs.

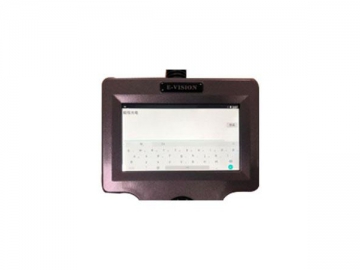

    1. The touch screen allows users to freely switch the viewing angle and features a wider viewing field. Users can also customize the file name and picture name through the touch keyboard, which also supports multiple input modes.
ET60/40 SPECIFICATION
Probe Pixel: 480,000 Pixel
Diameter: 6.0mm / 4.3mm / 3.9mm
FOV: 90°
View Direction Direct View/ Direct view + Side view Dual Camera
Probe Length 1~8 meters with tungsten mesh
Articulation 360°with Motor or Mechanical control
System Displayer 5 Inch Touch Screen LCD (1920*1080)
Memory TF Card Support 8G~128G
Output Interface USB2.0/HDMI out/ Earphone out
Power 2x26650 Li-battery/110~220V AC
Wireless WiFi/Bluetooth for Android
Size 330*148*150 (L*W*H)
Weight 1.2Kg (Include Battery)
Waterproof Probe: IP67
Working Temperature -10~50°
Software Menu Touch Screen control
Image process Image Zoom In & Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename
Lightness 5 level LED/ Fiber light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust
Storage Image/Video/Audio record
Language English/Chinese/French/Korean/German/Russian/Japanese/ etc.
