Flake ice machine is a kind of ice production machines used to produce dry, flat and thin pieces of ice with thickness range of 1.5-2.2mm and diameter range of 12-45mm. Ice flakes have a relatively large surface contact area, providing faster and better cooling effect than other types of ice, and the flat shape of ice will not damage the delicate or fragile products. Flake ice machine is widely found in applications of seafood processing, fish farming, concrete cooling, etc.

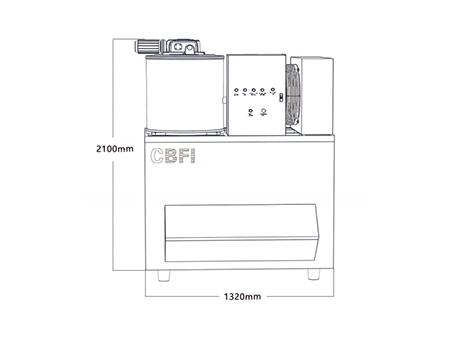

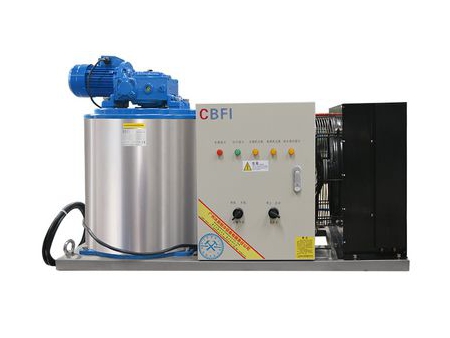

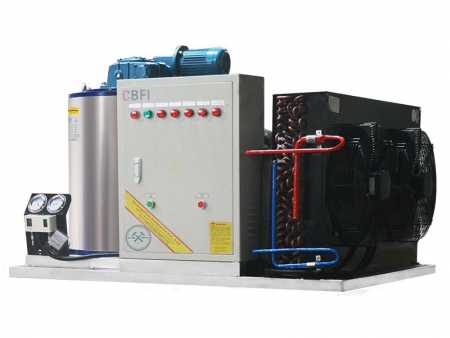

BF1000 Flake Ice Machine

  • Daily output (T/24h): 1
  • Cooling Method: Air
  • Compressor Power: 7.44kw
  • Unit size (L*W*H): 1320*900*900 mm
  • Unit N.W. (kg): 210

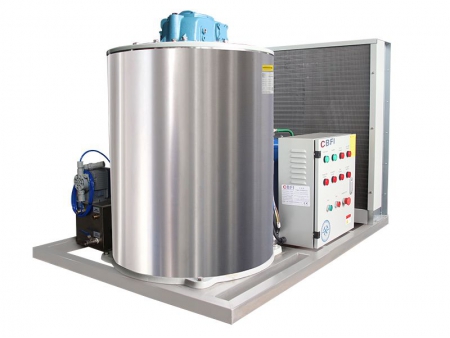

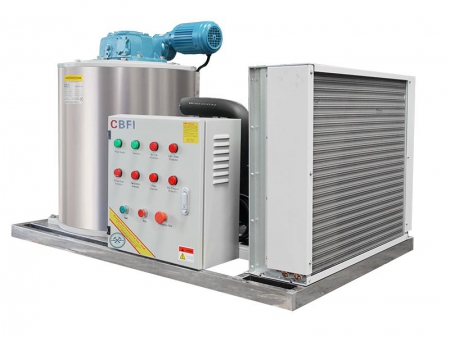

BF2000 Flake Ice Machine

  • Daily output (T/24h): 2
  • Cooling Method: Air
  • Compressor Power: 10kw
  • Unit size (L*W*H): 1750*1100*1050 mm
  • Unit N.W. (kg): 360

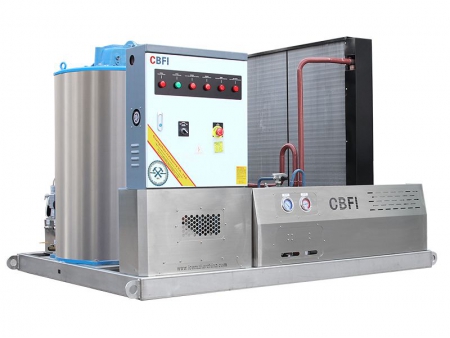

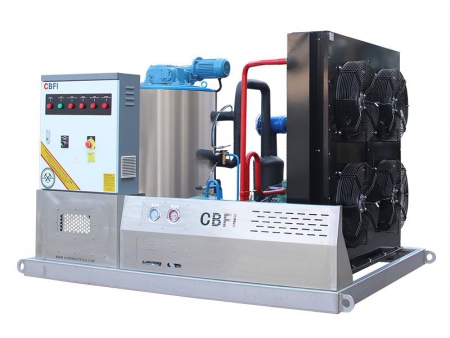

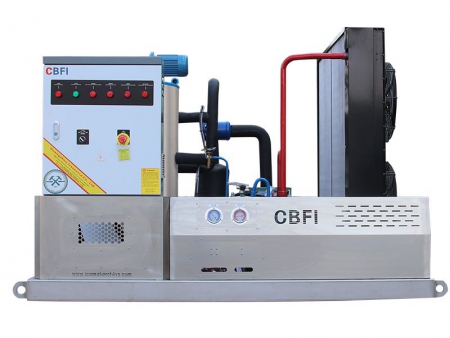

BF3000 Flake Ice Machine

  • Daily output (T/24h): 3
  • Cooling Method: Water
  • Compressor Power: 8.45kw
  • Fan Power for Cooling Tower: 0.37kw
  • Cooling Pump Power: 1.5kw
  • Unit size (L*W*H): 1500*1250*1260 mm
  • Unit N.W. (kg): 1000

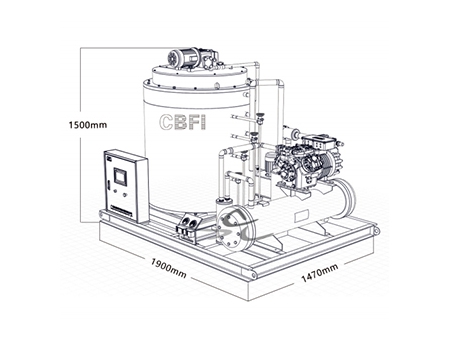

BF5000 Flake Ice Machine

  • Daily output (T/24h): 5
  • Cooling Method: Water
  • Compressor Power: 13.49kw
  • Fan Power for Cooling Tower: 0.75kw
  • Cooling Pump Power: 2.2kw
  • Unit size (L*W*H): 1900*1500*1470 mm
  • Unit N.W. (kg): 1100

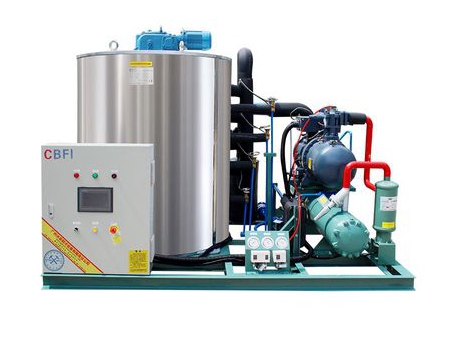

BF10000 Flake Ice Machine

  • Daily output (T/24h): 10
  • Cooling Method: Water
  • Compressor Power: 33.8kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 4kw
  • Unit size (L*W*H): 2500*2000*1860 mm
  • Unit N.W. (kg): 1500

BF15000 Flake Ice Machine

  • Daily output (T/24h): 15
  • Cooling Method: Water
  • Compressor Power: 44.5kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 4kw
  • Unit size (L*W*H): 3350*2150*1960 mm
  • Unit N.W. (kg): 3200

BF20000 Flake Ice Machine

  • Daily output (T/24h): 20
  • Cooling Method: Water
  • Compressor Power: 64kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 5.5kw
  • Unit size (L*W*H): 3400*2220*2230 mm
  • Unit N.W. (kg): 4200

BF30000 Flake Ice Machine

  • Daily output (T/24h): 30
  • Cooling Method: Water
  • Compressor Power: 93.7kw
  • Fan Power for Cooling Tower: 2.2kw
  • Cooling Pump Power: 7.5kw
  • Unit size (L*W*H): 4700*2250*2520
  • Unit N.W. (kg): 5000
Model Daily Output (T/24h) Cooling Method Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unit Size Unit N.W. (kg)
(L*W*H mm)
BF 1000 1 Air 7.44 kW -- -- 1320*900*900 210
BF 2000 2 Air 10 kW -- -- 1750*1100*1050 360
BF 3000 3 Water 8.45 kW 0.37 kw 1.5 kW 1500**1250*1260 1000
BF 5000 5 Water 13.49 kW 0.75 kw 2.2 kW 1900*1500*1470 1100
BF 10000 10 Water 33.8 kW 1.5 kw 4 kW 2500*2000*1860 1500
BF 15000 15 Water 44.5 kw 1.5 kw 4 kw 3350*2150*1960 3200
BF 20000 20 Water 64 kw 1.5 kw 5.5 kw 3400*2220*2230 4200
BF 30000 30 Water 93.7 kw 2.2 kw 7.5 kw 4700*2250*2520 5000
Features
  • Bitzer Compressor
    We use the German Bitzer compressor, known for its reliability and widespread support network. No matter where you are, accessing spare parts and service is straightforward, ensuring continuous operation without significant downtime.

  • Stainless Steel Evaporator
    The stainless steel evaporators ensure that the ice produced is not only clean and healthy but also durable. The stainless steel surface guarantees a long service life while providing consistently high-quality ice.

  • Adjustable Water Spray System
    The adjustable water spray system is designed to control the thickness of the ice. Simply adjust the valves to vary the water flow. Open more valves for thicker ice, giving you flexibility in ice production according to your needs.

  • Flake Ice Scraper
    The flake ice scrapers are made from high-density materials from the USA, designed for a long service life. These scrapers deliver consistent performance, ensuring smooth operation throughout their service life.

  • Ice Rake System
    The ice rake system is used together with ice making equipment, and is normally installed in the cold storage for ice, which makes it possible to serve the urgent demand of large quantity of ice when needed. There are several ice rake systems as below:

    • Ice rake system for chemical manufacturing
    • Ice rake system for cooling concrete
    • Structural steel ice rake system
    • Containerized ice rake system
  • Compressor Brand: Bitzer / Hanbell; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
  • Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
  • Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-18℃.
  • (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
  • (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
