Block Ice Maker Block Ice Machine, BBI Series
- Daily Output: ≥ 3T
- Ice size: Can be customized upon request
- Block Ice Weight: 2.5kg, 5kg, 10kg, 20kg, 100kg (can be customized upon request)
- Environmental refrigerant
- Cooling Method: Water Cooling / Air Cooling
As one of the ice manufacturing equipment, block ice machine is commonly used to produce rectangular solid block ice that has larger size in comparison with other ice products, and a slow melt rate.
Icesource has been pioneering in the field of large block ice machines, the daily production capacity is ≥ 3T to meet customer’s individual production demands. Icesource has successfully developed world’s first large fluorine refrigeration block ice machine with a daily capacity of 100ton, and it was put into operation in Malaysia in 2010.
Our block ice machine can be custom manufactured to meet your specific needs, and the ice blocks can be cracked into a variety of required shapes.
Ice plants, food processing, fresh preservation and cooling of aquatic products, ice sculpture, daily ice consumption, etc.

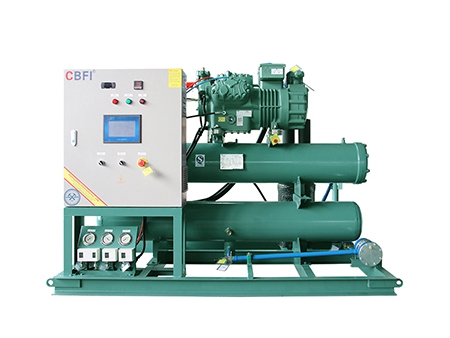

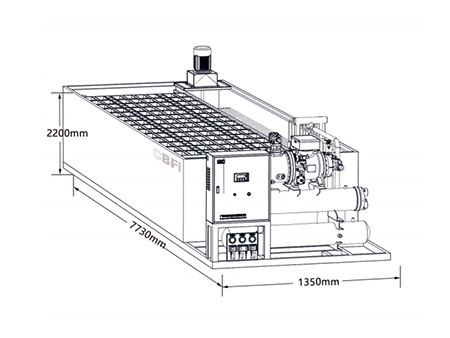

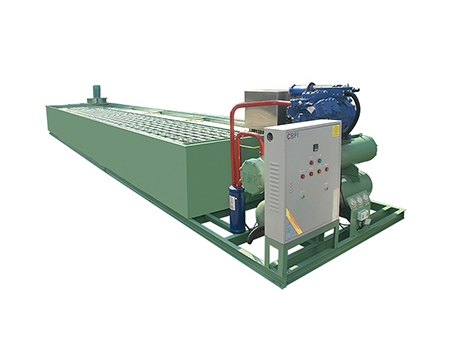

BBI100 Block Ice Machine, BBI Series
- Daily Output (T/24h): 10
- Compressor Power: 34.2kw
- Fan Power for Cooling Tower: 1.5kw
- Cooling Pump Power: 4kw
- Block Ice Weight (kg): 25
- Unit Size (L*W*H mm) (Integrated Type): 8660*2200*1700
- Unit N.W. (kg): 2700

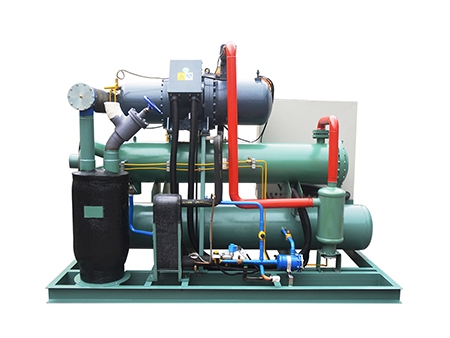

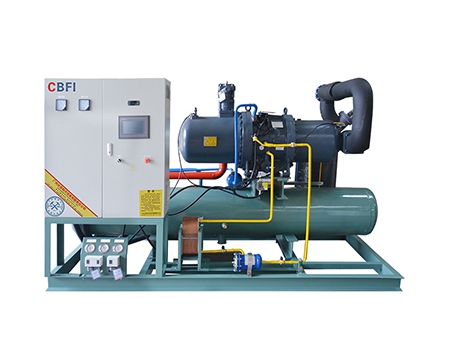

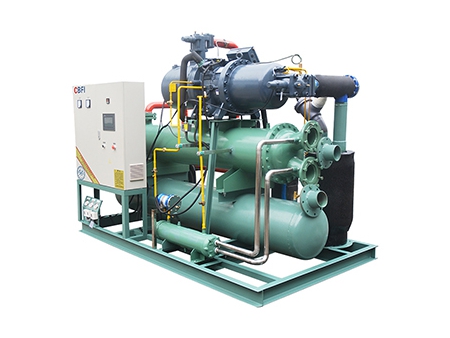

BBI200 Block Ice Machine, BBI Series
- Daily Output (T/24h): 20
- Compressor Power: 68.6kw
- Fan Power for Cooling Tower: 2.2kw
- Cooling Pump Power: 5.5kw
- Block Ice Weight (kg): 25
- Unit Size (L*W*H mm) (Split Type): 3500*1500*2200 (Main Host), 11560*4200*1565 (Brine Tank)
- Unit N.W. (kg): 5500

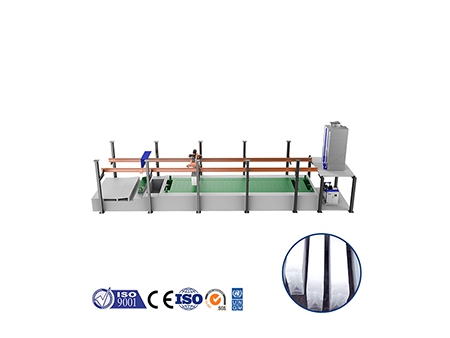

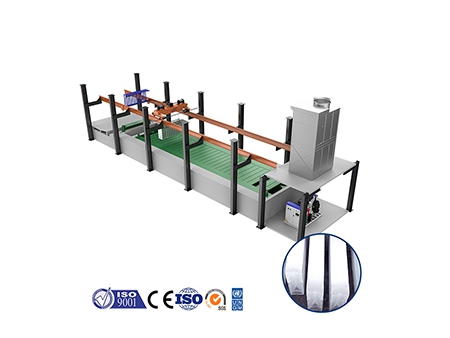

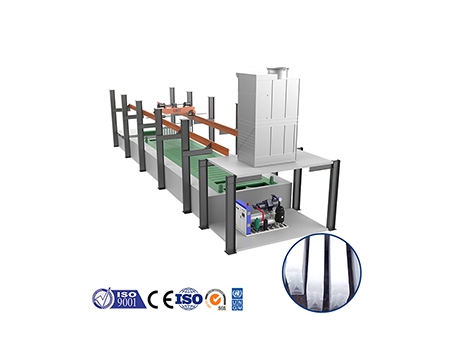

BBI300 Block Ice Machine, BBI Series
- Daily Output (T/24h): 30
- Compressor Power: 104.3kw
- Fan Power for Cooling Tower: 8kw
- Cooling Pump Power: 3kw
- Block Ice Weight (kg): 50
- Unit Size (L*W*H mm) (Split Type): 3000*1500*2000 (Main Host)

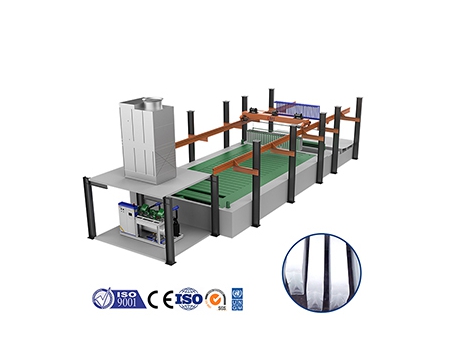

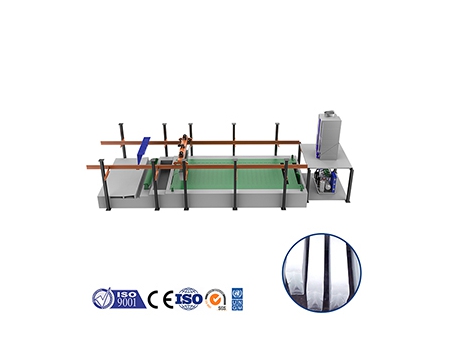

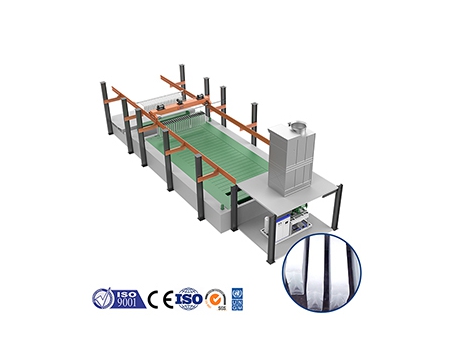

BBI500 Block Ice Machine, BBI Series
- Daily Output (T/24h): 50
- Compressor Power: 181.2kw
- Fan Power for Cooling Tower: 12kw
- Cooling Pump Power: 4kw
- Block Ice Weight (kg): 50
- Unit Size (L*W*H mm) (Split Type): 3950*1750*2310 (Main Host)

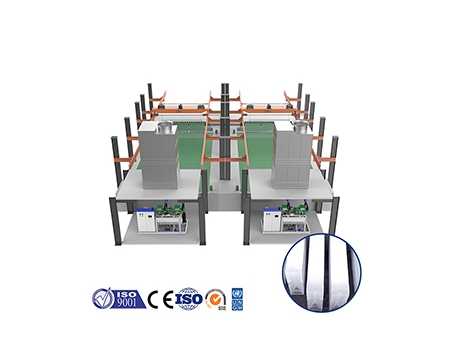

BBI1000 Block Ice Machine, BBI Series
- Daily Output (T/24h): 100
- Compressor Power: 362.4kw
- Fan Power for Cooling Tower: 24kw
- Cooling Pump Power: 8kw
- Block Ice Weight (kg): 100
- Unit Size (L*W*H mm) (Split Type): 3000*1500*2000 (Main Host)
| Model | Daily Output (Ton/24h) | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Block Ice Weight(kg) | Unit Size (L*W*H mm) (Integrated Type) | Unit N.W.(kg) |
| | 10 | 34.2kw | 1.5kw | 4kw | 25 | 8660*2200*1700 | 2700 |
| | 20 | 68.6kw | 2.2kw | 5.5kw | 25 | 3500*1500*2200(Main Host) 11560*4200*1565(Brine Tank) | 5500 |
| | 30 | 104.3kw | 8kw | 3kw | 50 | 3000*1500*2000(Main Host) | Consulting manufacturer |
| | 50 | 181.2kw | 12kw | 4kw | 50 | 3950*1750*2310(Main Host) | |
| | 100 | 362.4kw | 24kw | 8kw | 100 | 3950*1750*2310*2(Main Host) |
- Compressor Brand: Bitzer / Hanbell; Environmental refrigerant; Cooling Method: Water Cooling / Air Cooling;
- Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
- Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-18℃.
- (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
- (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
-

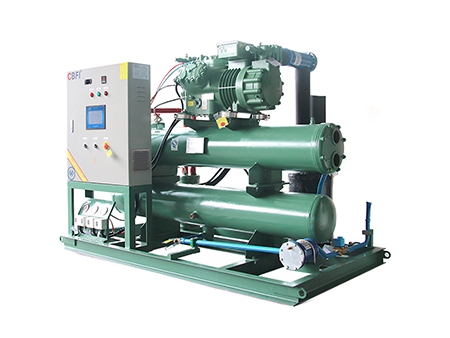

Bitzer Compressor
Our ice making machines include a Bitzer compressor from Germany, known for its reliability. Wherever you are located, you’ll have easy access to spare parts and expert service, keeping your systems operational with minimal interruptions. -
Control System
Our ice making machinery is equipped with a PLC and a touchscreen controller for simplified operations. Operators can quickly learn to control the entire machine, making it easier to manage and operate efficiently. -
Large capacity water reservoir, allowing compressor to run smoothly without water hitting, efficiently protecting the compressor from being damaged;
-
Ice molds (ice cans) is customizable according to your acute market needs;
-
Evaporator tube wall thickness is up to 3mm, reliable and long lifespan of 20 years;
-
Patented design of evaporator, improved ice making efficiency and reduced energy consumption;
Brine tank features a corrosion resistant surface, which is specially treated by coating with two layers of primer coatings and one layer of top coatings. The coating layer is resistant to low temperature and can be immersed in brine water for a long time without falling off. Service life of brine tank is 35% higher than that of other similar tanks;
