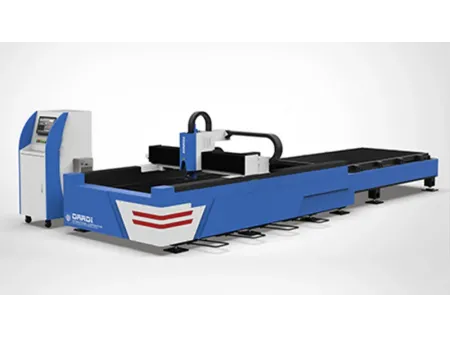

Fiber Laser Cutting Machine with Exchange Table, BF Series
Request a Quote
- Integrated control cabinet with enclosure
- Separate control cabinet without enclosure
Applicable Materials

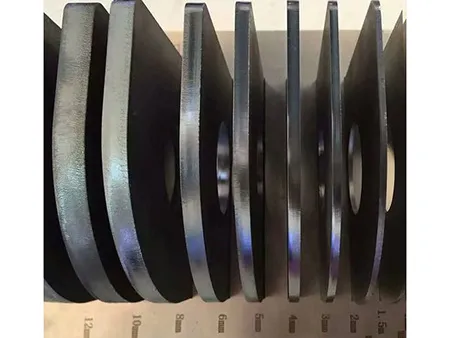

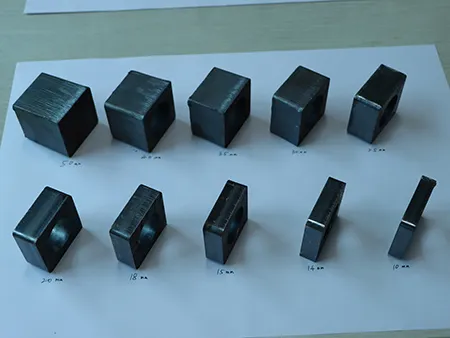

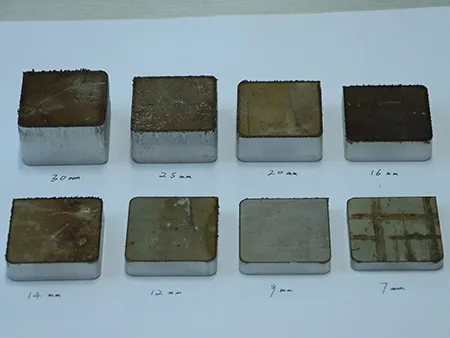

Featuring precision and versatility, these fiber laser cutting machines are ideal for cutting a wide range of metal materials, including carbon steel, stainless steel, galvanized steel, electrolytic plates, aluminum, copper, and silicon steel. These laser cutters can cut materials with a thickness of up to 80mm thick, making them ideal to operate efficiently in demanding environments such as industrial manufacturing, shipbuilding, and the production of heavy-duty equipment. The exchange table design ensures continuous and simultaneous loading and cutting, which significantly enhances productivity and efficiency.
Features
- The automatic exchange table completes the exchange in just 10 seconds, allowing for simultaneous loading and unloading during processing, which significantly boosts operational efficiency.
- The fully enclosed, integrated design ensures operators work safely. It also effectively reduces environmental pollution, creating a safer and cleaner workspace.
- Equipped with an automatic centralized lubrication system, the laser cutter provides timely and precise lubrication, enabling intelligent maintenance and extending the laser cutter’s lifespan.
- Built with high-quality transmission components, including precision rack and pinion systems and reduction gears sourced from internationally renowned brands, ensuring reliable and consistent performance.
Main Parameters
- Laser power: 2kW-20kW
- Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
- Machine power: 9.8kW
- Max. cutting speed: 90m/min-150m/min
- Max. acceleration: 0.8G-2G
- X/Y-axis positioning accuracy: ±0.03mm/m
- X/Y-axis repositioning accuracy: ±0.03mm
- Operating Temperature: 0℃~40℃
- Operating humidity: <90% Non-condensing
- Axes motion: Precision rack and pinion
- Cooling method: Water cooling
Detailed Parameters of Available Models
| Model | | | | | |
| Working area (mm) | 3000*1500 | 4000*2000 | 6000*1500 | 6000*2000 | 6000*2500 |
| Z-axis travel (mm) | 250 | 250 | 250 | 250 | 250 |
| Machine dimensions (mm) | 9225*3020*2330 | 11350*3670*2330 | 15300*3020*2330 | 15300*3670*2330 | 15300*4200*2330 |
| Exchange type | Parallel exchange | Parallel exchange | Parallel exchange | Parallel exchange | Parallel exchange |
| Ingress protection rating | IP54 | IP54 | IP54 | IP54 | IP54 |
