Hospital bed elevators are commonly found in large hospitals, modern medical centers, nursing homes, and healthcare facilities, where time is of the essence. FUJI bed elevator series adheres to a people-oriented approach, applying fuzzy logic and group control technology to the elevator system, enabling intelligent elevator operation and minimizing patient waiting time to the maximum extent possible.
Hospital elevators that work seamlessly behind the scenes
Request a Quote
- Load capacity
450kg, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg
- Speed
1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s
- Stops
2 to 106
- Persons
1 to 26
- Machine room
small machine room or machine room-less
- Features
- Models
- Dimensions
Features
- Intelligent Control System
FUJI intelligent control system accurately measures the real-time position of the elevator car during operation, ensuring optimal travel times. When the elevator accelerates, decelerates, and brakes, it operates more stably, providing reduced travel times, increased level measurement precision, and enhanced riding comfort.
- Signal Processing System
An advanced high-speed digital signal processing system enhances traction speed control sensitivity, minimizing elevator vibrations.
- Emergency Power-off Device Installation
The installation of an emergency power-off device ensures the safe removal of patients from the elevator car even during power outages, guaranteeing uninterrupted patient care.
- Personalized Detail Design
Personalized details such as wide handrails, ion air purification within the elevator car, and a dedicated operation panel for people with disabilities create a cozy and comfortable environment for passengers.
General Specifications of Our Elevator Cabins

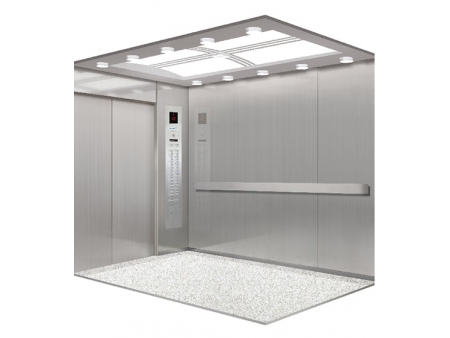

HD-B01 Hospital Bed Elevator
- Ceiling: 304 hairless stainless steel, acrylic arched top panel, downlight
- Car wall: 304 hairline stainless steel
- Handrail: 304 stainless steel flat handrail
- Flooring: Standard PVC (optional marble)

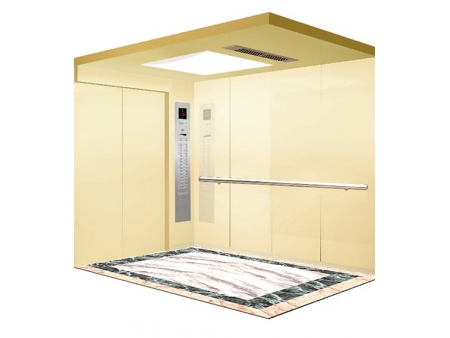

HD-B02 Hospital Bed Elevator
- Ceiling: Painted steel plate (off-white HD-07) acrylic arched top panel
- Car wall: Painted steel plate (off-white HD-07)
- Handrail: 304 stainless steel cylindrical handrail
- Flooring: Standard PVC (optional marble)

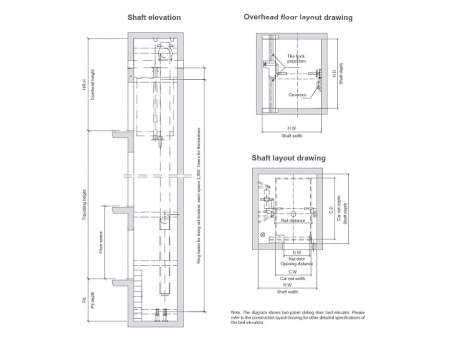

Dimensions
| Persons | Rated capacity (kg) | Rated speed (m/s) | Car size (mm) | Door size (mm) | Shaft size (mm) | Machine room size (mm) | |||
| C.W×C.D×D.H | D.W×D.H | H.W×H.D | HR.H | Pit | MR.W×MR.D | MR.H | |||
| 21 | 1600 | 1.0 | 1400×2400×2300 | 1100×2100 | 2550×2900 | 4500 | 1500 | 2550×2900 | 2500 |
| 1.5/1.75 | 4700 | 1600 | |||||||
| 2.0 | 4900 | 1800 | |||||||
| 2.5 | 5100 | 2000 | |||||||
| 24 | 1800 | 1.0 | 1600×2400×2300 | 1200×2100 | 2750×2900 | 4500 | 1500 | 2750×2900 | 2500 |
| 1.5/1.75 | 4700 | 1600 | |||||||
| 2.0 | 4900 | 1800 | |||||||
| 26 | 2000 | 1.0 | 1700×2400×2300 | 1200×2100 | 2850×2900 | 4500 | 1500 | 2850×2900 | 2500 |
| 1.5/1.75 | 4700 | 1600 | |||||||
| 2.0 | 4900 | 1800 | |||||||
You can also match the hospital bed elevator interior to your liking
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
What are the characteristics of hospital bed elevators?
Hospital bed elevators, also known as hospital lifts, are used in hospitals, nursing homes, and other healthcare facilities to transport patients between floors. They have features of comfort, ample space, easy access to and from the bed, as well as high safety, allowing for safe evacuation of patients even during power outages.
What is the function of a bed elevator in a hospital?
Our hospital bed elevators aim to provide safe and convenient transportation for everyone. The optimal combination of functions ensures efficient operation, meeting the hospital's needs from transporting bedridden patients to moving medical equipment.
What are the components of the elevator system?
Generally, the elevator system consists of the machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, and safety system.
Are hospital bed elevators generally customized?
Yes, hospital bed elevators are typically customized to precisely match the hospital's building requirements. Additionally, customization options include cabin decoration, load capacity, height, speed, and the presence of a machine room.
How is the reliability of the elevator system ensured?
FUJI has over nearly 40 years of experience in the elevator industry and is one of the first elevator manufacturers in China. We ensure the safety and reliability of our elevator systems by incorporating intelligent control systems, digital variable frequency technology, permanent magnet synchronous motor technology, high-precision positioning control systems, and more.
