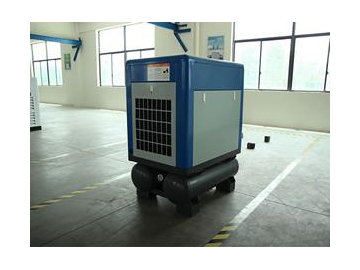

This 2 in 1 tank mounted screw air compressor is featured by strong adaptability and little space occupation.

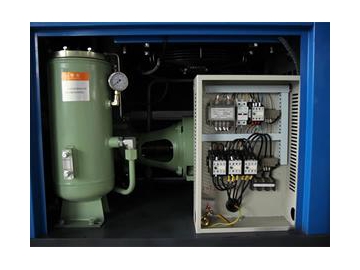

Components of Tank Mounted Rotary Screw Air Compressor
1. The double-screw air-end

Adopt German technology GU air end which is third generation asymmetric double screw air end, axial air-inlet design. The design life of durable NFK bearing is over 120,000 hours.

2. Efficient and reliable motor
Use more efficient and reliable operate continuously motor which have passed the CE authentication, ingress protection IP23, class F insulation grade.

3. High quality and reliable valve
Thousands of reliability and safety testing ensure the quality and durability of inlet valve, minimum pressure valve, thermostatic valve, safety valve.

4. High-quality filter
Adopt own brand oil-air separator, oil filter, air filter element, safe and reliable. Oil-air separator separate thoroughly which oil content less than 3 PPM; Air filter and oil filter are efficiency and long service life.

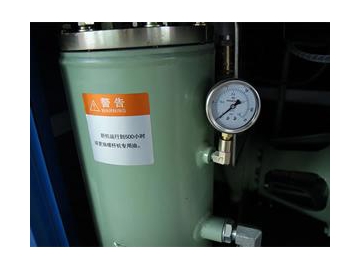

5. Oil-air separator
The highly efficient oil-air separator presents triple separation of centrifugal, gravity and filtration, leading the remaining oil less than 3ppm.

1st Separation: Centrifugal
The mixture of compressed air inside the compressor and the oil revolve in the separator under the centrifugal force.

2nd Separation: Gravity
After the centrifugal separation, the oil-air mixture punches the inside wall of oil-air vessel, and flow to the bottom of the vessel. At the bottom, the magnetic filter removes the iron powder and other small metals sucked together with air, preventing the scratch of separator.

3rd Separation: Filtration
It adopts the folding oil-air separator to increase the area.
With the fiber as the main body, the cylinder filter collects the atomizing lubricant from the air.

6. English/ Chinese LCD microcomputer touching panel
Screw air compressor control system is applied in English and Chinese LCD touching controller. Support the remote control and chain control. Communication port for RS 485, Modbus communication protocols, can choose other communication agreement.

1) Features of microcomputer controller
1. English and Chinese LCD touching panel;
2. All-round protection of motor with short circuit, plugging turn, phase lack, overload, unbalance;
3. The starting and stopping control of the motor;
4. Protection and measurement of compressor reversal protection;
5. The multiple temperature detection and display;
6. Automatic adjustment of compressor loading, ensure the stabilization of pressure;
7. Long-distance or local control;
8. Multi-machine or single machine operation control;
9. RS-485 communication function;
10. GPRS mobile remote control. (Optional)

2) Microcomputer controller warnings and prompt functions
1. Warning indication of air filter replacement;
2. Warning indication of oil filter replacement;
3. Warning indication of oil-air separator replacement;
4. Warning indication of oil replacement.

3) Microcomputer controller safety protection
1. Protection motor: compressor motor protection of short circuit, plugging turn, phase lack, three phase power imbalance;
2. Compressed air high temperature protection;
3. Protection of compressor reversal;
4. Protection of excessive pressure;
5. Protection of temperature sensor and pressure sensor;

Applications of Tank Mounted Rotary Screw Air Compressor
Jufeng air compressor is widely used in all kinds of industries around the world, including electronics, electricity, water, electricity, environmental protection, petroleum, chemical, mining, metallurgy, pharmaceutical, food, aviation, shipbuilding, military, scientific research, wood, textile, printing, glass, construction, building materials and other fields.

Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.
• Consumer grade air compressors can be described as a pancake or single-stage model. They're used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.
• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.
• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Precautions of Tank Mounted Rotary Screw Air Compressor
1. Srandard Power: 380V/50HZ/3PH, 415V/220V/60HZ and other voltage can be customized.
2. Starting method: 10A or below direct starting,15A or above star-delta srarting.
3. Working environment temperature: -5℃-45℃;
4. Driven method: Belt driven / Direct driven.
5. Welcome request & inquiry of customized the pressure up to 16 bar
6. The company on product improvement and reserves the right of design improvement parameters are subject to change without prior notice.

About the maintenance:
1st maintenance: After 500 hours of running
2nd and subsequent maintenance: Every 2000 to 2500 hours of running

Technical Parameters
JF-10AT JF-15AT JF-20AT
Discharge pressure 0.8 Mpa Discharge pressure 0.8 Mpa Discharge pressure 0.8 Mpa
Free Air Deliver (FAD) 1.05 m³/min Free Air Deliver (FAD) 1.52 m³/min Free Air Deliver (FAD) 2.3 m³/min
Cooling method Air Cooling Cooling method Air Cooling Cooling method Air Cooling
Outlet temperature Ambient temperature 12 ℃ Outlet temperature Ambient temperature 12 ℃ Outlet temperature Ambient temperature 12 ℃
Motor Power 7.5 kw Motor Power 11 kw Motor Power 15 kw
Motor RPM 1470 r/min Motor RPM 2900 r/min Motor RPM 2920 r/min
Power 380V / 3PH / 50HZ Power 380V / 3PH / 50HZ Power 380V / 3PH / 50HZ
Starting method Direct start Starting method Y-Δ start Starting method Y-Δ start
Insulation F class Insulation F class Insulation F class
Ingress Protection IP54 Ingress Protection IP23/IP54 Ingress Protection IP 23/54
Ambient temperature -5 ~ 42 ℃ Ambient temperature -5 ~ 45 ℃ Ambient temperature -5 ~ 45 ℃
Driven method Direct driven Driven method Direct driven Driven method Direct driven
Noise 62±2dB(A) Noise 62±2dB(A) Noise 64±2dB(A)
Oil content ≤3ppm Oil content ≤3ppm Oil content ≤3ppm
Volume of oil 4.5L Volume of oil 9L Volume of oil 9L
Air receiver 65L/tank Air receiver 72.5L/tank Air receiver 75L/tank
Diameter of air outlet pipe G1/2" Diameter of air outlet pipe G3/4" Diameter of air outlet pipe G3/4"
Weight 275kg Weight 450kg Weight 480kg
Dimension 1000*700*1270 mm Dimension 1050*750*1400 mm Dimension 1050*750*1380 mm
