Integrated Screw Air Compressor with Dryer & Tank

Integrated Screw Air Compressor with Dryer & Tank
Integrated Screw Air Compressor with Dryer & Tank
Integrated Screw Air Compressor with Dryer & Tank
Request a Quote
  • Air Displacement (m³/min): 1.0~1.68
  • Discharge Pressure (MPa/Bar): 1.5
  • Power (kW) :15~22 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • JG20YPM/15 (stand-alone)
    Integrated Screw Air Compressor with Dryer & Tank 15kW/20HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)
    Air Displacement @ Pressure
    (CFM @ PSI)
    Power
    (kW/HP)
    Dimensions Length*Width*Height
    (mm)
    1.0/1.5 35/218 15/20 1080*780*1030
  • JG30YPM/15 (stand-alone)
    Integrated Screw Air Compressor with Dryer & Tank 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)
    Air Displacement @ Pressure
    (CFM @ PSI)
    Power
    (kW/HP)
    Dimensions Length*Width*Height
    (mm)
    1.68/1.5 59/218 22/30 1080*780*1030
  • JG50YPM/15 (stand-alone)
    Integrated Screw Air Compressor with Dryer & Tank 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)
    Air Displacement @ Pressure
    (CFM @ PSI)
    Power
    (kW/HP)
    Dimensions Length*Width*Height
    (mm)
    3.9/1.5 138/218 37/50 1340*950*1220

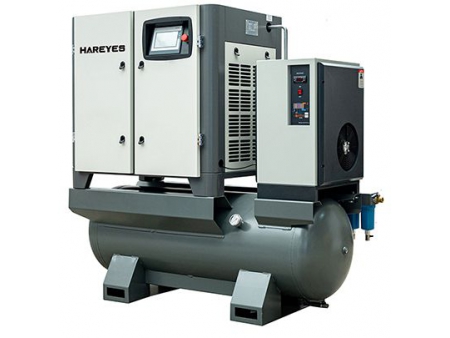

  • JG20YPM/15-400 (four-in-one)
    Integrated Screw Air Compressor with Dryer & Tank 15kW/20HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)
    Air Displacement @ Pressure
    (CFM @ PSI)
    Power
    (kW/HP)
    Air Dryer Dimensions Length*Width*Height (mm)
    Model Power (kW) Air Flow (m³/min) Power Supply Inlet Air Temperature≤ (℃)
    1.0/1.5 35/218 15/20 TR01-HRS 0.37 1.2 220V/50Hz 65 1840*820*1695
  • JG30YPM/15-400 (four-in-one)
    Integrated Screw Air Compressor with Dryer & Tank 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)
    Air Displacement @ Pressure
    (CFM @ PSI)
    Power
    (kW/HP)
    Air Dryer Dimensions Length*Width*Height
    (mm)
    Model Power (kW) Air Flow (m³/min) Power Supply Inlet Air Temperature≤ (℃)
    1.68/1.5 59/218 22/30 TR02-HRS 0.52 2.4 220V/50Hz 65 1840*820*1695
Model JG20YPM/15
(stand-alone)
JG30YPM/15
(stand-alone)
JG50YPM/15
(stand-alone)
JG20YPM/15-400
(Four-in-one)
JG30YPM/15-400
(Four-in-one)
Air Displacement@Discharge Pressure
(M³/min @Mpa/Bar)
1.0/1.5 1.68/1.5 3.9/1.5 1.0/1.5 1.68/1.5
Air Displacement@Discharge Pressure
(CFM@PSI)
35/218  59/218  138/218  35/218  59/218
Cooling Method Fan-cooling
Discharge Temperature (℃) ≤40
Lubricant (L) 10 10 18 10 10
Noise dB(A) 75±2 78±2 75±2
Drive Method Direct Driven
Compression Stage Single stage
Power(KW/HP) 15/20 22/30 37/50 15/20 22/30
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Protection class for Motor IP23 (IP54 is available)
Starting mode Variable frequency starting
Air Tank Capacity (L) 400 Litre
Dimension   L(mm) 1080 1080 1340 1840 1840
W(mm) 780 780 950 820 820
H(mm) 1030 1030 1220 1695 1695
N.W. KG 210 245 420 453 480
Air Outlet Diameter (inch) G3/4" G1" G3/4"

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Features
  • Simplified Configuration

    Our integrated screw air compressor spares you the trouble of independently configuring air tanks, dryers, and filters, eliminating the hassle of dealing with multiple suppliers for separate components.
  • Permanent Magnet VSD Screw Compressor

    Ensuring consistent pressure, our permanent magnet VSD screw compressor guarantees smoother pressure transitions, creating precise, smooth cuts with enhanced processing accuracy.
  • Advanced Filtration and Drying

    Combining the efficiency of plate heat exchanger refrigerated dryer and a 4-stage precision filter, our air compressor guarantees superior-quality. It achieves a low pressure dew point of 2-8°C, contributing to enhanced work efficiency.
  • Enhanced Dampening and Noise Reduction

    The main engine oil pipes employ high-temperature and high-flexibility hoses interconnected with steel pipes for effective noise reduction and vibration dampening.
  • Optimized Variable Frequency Parameters

    By thoroughly optimizing the screw air compressor's variable frequency parameters, we achieve better regulation of lubricating oil temperature and prevents oil emulsification and water accumulation.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
