Anti-clogging mesh with triangle-shaped openings
Watch Video

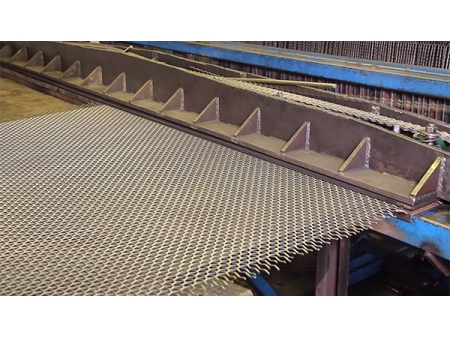

DUNPAI’s triangular pattern self-cleaning screens have triangle-shaped meshes, making them suitable to carry out fine screening at scale. Thanks to the shapes, the self-cleaning wire screens feature marvelous load capacity, while ensures a long service life, three times longer than that of common mining screens with square-shaped apertures. The triangular-pattern screens are applicable not only in mining industry, but also in hot-mix asphalt plants, making them absolutely a cost-effective choice for you.

Features
  • Self-cleaning screen with triangular mesh is suitable for very fine materials with high load bearing capacity;

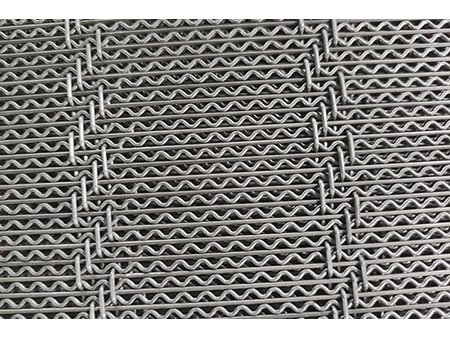

  • Triangular openings formed by alternating straight and crimped wires for better impact absorption;

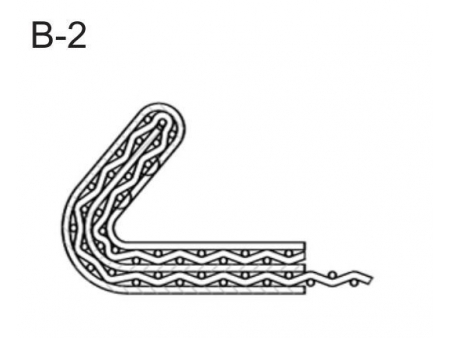

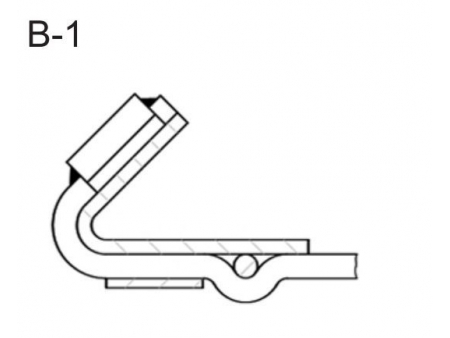

  • Rubber or polyurethane cross bands are optional to strengthen the screening surface and vibration stability;
  • Can last up to three times longer than common screens;
  • Especially suitable for hot-mix asphalt plants;
  • Excellent performance when accurate sizing is required;
  • Opening: 5/64 inch – 7/8 inch;
Specifications
Aperture Width (mm) Wire Diameter(mm) Wire Diameter (inch) Weight/m2 Opening Area Material
2.00 1,20 - 1,60 3/64” - 1/16” 4,3 - 6,3 43 - 36 AR/AISI 304/AISI 316
2.50 1,20 - 2,00 3/64” - 5/64” 3,8 - 8,0 49 - 37 AR/AISI 304/AISI 316
3.00 1,20 - 2,00 3/64” - 5/64” 3,5 - 7,6 54 - 38 AR/AISI 304/AISI 316
3.50 1,20 - 1,60 3/64” - 1/16” 3,4 - 5,4 56 - 47 AR/AISI 304/AISI 316
4.00 1,20 - 2,50 3/64” - 0,098 3,0 - 9,2 60 - 42 AR/AISI 304/AISI 316
4.50 1,50 - 2,50 0,059 - 0,098 4,0 - 7,5 58 - 46 AR/AISI 304/AISI 316
5.00 1,50 - 2,80 0,059 -7/64” 3,9 - 9,1 59 - 45 AR/AISI 304/AISI 316
5.50 1,50 - 2,50 0,059 - 0,098 3,0 - 6,7 65 - 52 AR/AISI 304/AISI 316
6.00 1,50 - 3,15 0,059 -1/8” 3,0 - 10,7 66 - 45 AR/AISI 304/AISI 316
6.30 2,50 - 2,80 0,098 -7/64” 7,4 - 8,2 52 - 51 AR/AISI 304/AISI 316
6.50 2,00 - 2,50 5/64” - 0,098 5,1 - 6,2 59 - 56 AR/AISI 304/AISI 316
7.00 2,00 - 3,15 5/64” -1/8” 4,0 - 11,6 64 - 47 AR/AISI 304/AISI 316
7.50 2,00 - 2,50 5/64” - 0,098 5.50 60 AR/AISI 304/AISI 316
8.00 2,00 - 4,00 5/64” -5/32” 4,4 - 10,9 65 - 50 AR/AISI 304/AISI 316
8.50 2,00 - 2,50 5/64” - 0,098 5.10 64 AR/AISI 304/AISI 316
9.00 2,00 - 3,15 5/64” -1/8” 4,8 - 7,7 65 - 58 AR/AISI 304/AISI 316
9.50 2,50 - 2,80 0,098 -7/64” 6.10 62 AR/AISI 304/AISI 316
10.00 2,00 - 3,15 5/64” -1/8” 4,7 - 7,8 66 - 60 AR/AISI 304/AISI 316
11.00 2,80 - 3,15 7/64” -1/8” 6.70 64 AR/AISI 304/AISI 316
11.50 2,50 - 3,15 0,098 -1/8” 5.9 66.0 AR/AISI 304/AISI 316
12.00 2,50 - 4,00 0,098 -5/32” 4,0 - 9,0 72 - 60 AR/AISI 304/AISI 316
12.50 2,50 - 4,00 0,098 -5/32” 5,6 - 8,3 68 - 62 AR/AISI 304/AISI 316
13.00 2,00 - 3,15 5/64” -1/8” 3,7 - 6,7 73 - 65 AR/AISI 304/AISI 316
14.00 2,80 - 4,00 7/64” -5/32” 5,2 - 7,7 70 - 65 AR/AISI 304/AISI 316
15.00 2,80 - 4,00 7/64” -5/32” 4,4 - 7,3 73 - 67 AR/AISI 304/AISI 316
16.00 3,00 - 4,00 0,118 -5/32” 5,9 - 8,6 70 - 65 AR/AISI 304/AISI 316
17.00 3,00 - 4,00 0,118 -5/32” 6.70 69 AR/AISI 304/AISI 316
18.00 3,00 - 4,00 0,118 -5/32” 6,4 - 8,0 71 - 68 AR/AISI 304/AISI 316
19.00 3,00 - 4,00 0,118 -5/32” 6.20 72 AR/AISI 304/AISI 316
20.00 3,00 - 4,00 0,118 -5/32” 3,2 - 7,5 79 - 70 AR/AISI 304/AISI 316
21.00 3,00 - 4,00 0,118 -5/32” 5.70 74 AR/AISI 304/AISI 316
22.00 3,00 - 4,00 0,118 -5/32” 5,6 - 8,2 74 - 70 AR/AISI 304/AISI 316
23.00 3,00 - 4,00 0,118 -5/32” 5.70 75 AR/AISI 304/AISI 316
24.00 3,00 - 4,00 0,118 -5/32” 5,7 - 7,1 74 - 71 AR/AISI 304/AISI 316
25.00 3,00 - 4,00 0,118 -5/32” 5,5 - 6,6 75 - 73 AR/AISI 304/AISI 316
26.00 4,00 - 4,00 5/32” - 5/32”” 6.50 74 AR/AISI 304/AISI 316
30.00 4,00 - 5,00 5/32” - 13/64” 5,4 - 8,0 78 - 74 AR/AISI 304/AISI 316
  • AISI 304L / EN 1.4307: Austenitic stainless steel with low carbon content.
  • AISI 304 / EN 1.4301: High resistance austenitic stainless steel.
  • AISI 316 / EN 1.4401: Austenitic stainless steel with molybdenum to strengthen corrosion resistance.
  • AR / EN 10270: Wear resistant steel with a high content of carbon and manganese.
  • NUBA Screening Media, at the customer’s request can provide a Quality Inspection Certificate (compliant with EN 10204.3.1.B) showing the chemical and mechanical properties of the materials. Other Aperture/wire combinations and materials such as galvanized steel etc. are available at customer’s request.
