Diamond Pattern Self-Cleaning Screen
Request a Quote
Anti-clogging mesh with diamond-shaped apertures

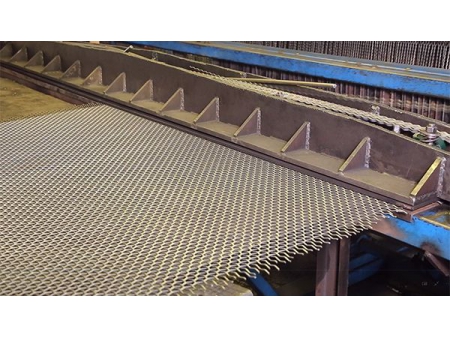

DUNPAI manufactures its diamond pattern screens with mesh shape similar to square. The self-cleaning screens feature uniform aperture size, which allows the wire screens to keep out particles while effectively leaving sheet materials on the surface. Because of this, the diamond-pattern screens can be applied in working sites which involve the screening of fine particles while keeping out sheet materials, for instance, to screen stones on highways.
- Square mesh shape;
- Uniform apertures;
- Precise screening;
- Effectively keep sheet materials out;

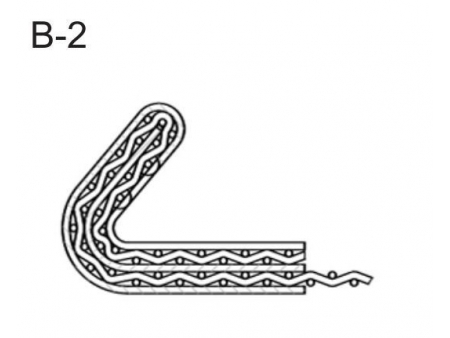

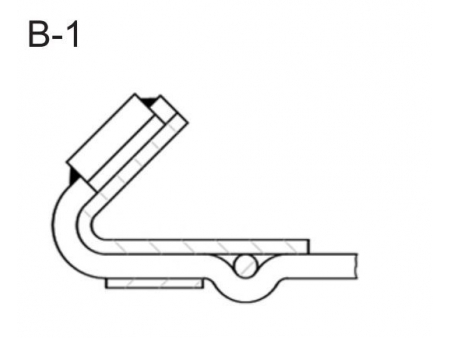

- Rubber or polyurethane cross bands are optional;
- Opening: 3/64 inch – 1 inch – 1/2 inch;
| Aperture Width (mm) | Wire Diameter(mm) | Wire Diameter (inch) | Weight/m2 | Opening Area | Material |
| 1.50 | 1, 20 - 1, 60 | 3/64” - 1/16” | 4,7 - 6,8 | 38 - 31 | AR/AISI 304/AISI 316 |
| 1.75 | 1, 20 - 1, 25 | 3/64” - 0,049 | 4,5 - 4,6 | 40 | AR/AISI 304/AISI 316 |
| 2.00 | 1, 20 - 1, 60 | 3/64” - 1/16” | 4,3 - 6,2 | 43 - 37 | AR/AISI 304/AISI 316 |
| 2.50 | 1, 20 - 2, 00 | 3/64” - 5/64” | 3,9 - 8,2 | 48 - 35 | AR/AISI 304/AISI 316 |
| 3.00 | 1, 20 - 2, 00 | 3/64” - 5/64” | 3,6 - 7,8 | 52 - 40 | AR/AISI 304/AISI 316 |
| 3.50 | 1, 20 - 2, 00 | 3/64” - 5/64” | 3,3 - 7,3 | 56 - 42 | AR/AISI 304/AISI 316 |
| 4.00 | 1, 20 - 2, 00 | 3/64” - 5/64” | 3,1 - 6,9 | 58 - 45 | AR/AISI 304/AISI 316 |
| 4.50 | 1, 20 - 2,50 | 3/64” - 0,098 | 2,9 - 9,23 | 62 - 40 | AR/AISI 304/AISI 316 |
| 5.00 | 1, 20 - 2, 80 | 3/64” - 7/64” | 2,7 - 11 | 65 - 41 | AR/AISI 304/AISI 316 |
| 5.50 | 1, 50 - 2, 50 | 0,059 - 0,098 | 3,7 - 8,1 | 61 - 48 | AR/AISI 304/AISI 316 |
| 6.00 | 1, 50 - 2,80 | 0,059 -7/64” | 3,4 - 9 | 64 - 48 | AR/AISI 304/AISI 316 |
| 6.50 | 1,50 - 3,15 | 0,059 -1/8” | 3,3 - 10,3 | 66 - 47 | AR/AISI 304/AISI 316 |
| 7.00 | 2,00 - 3,15 | 5/64” -1/8” | 4,8 - 9,8 | 61 - 49 | AR/AISI 304/AISI 316 |
| 7.50 | 2,00 - 3,15 | 5/64” -1/8” | 4,6 - 9,4 | 62 - 52 | AR/AISI 304/AISI 316 |
| 8.00 | 2,00 - 3,15 | 5/64” -1/8” | 4,5 - 9,1 | 63 - 53 | AR/AISI 304/AISI 316 |
| 8.50 | 2.50 | 0.098 | 6.10 | 61 | AR/AISI 304/AISI 316 |
| 9.00 | 2,00 - 3,15 | 5/64” -1/8” | 4,1 - 8,5 | 67 - 56 | AR/AISI 304/AISI 316 |
| 9.50 | 2,50 - 3,15 | 0,098 -1/8” | 5,6 - 8,2 | 63 - 57 | AR/AISI 304/AISI 316 |
| 10.00 | 2,00 - 3,15 | 5/64” -1/8” | 3,7 - 8,0 | 69 - 59 | AR/AISI 304/AISI 316 |
| 10.50 | 2,50 - 3,15 | 0,098 -1/8” | 5,0 - 7,7 | 66 - 60 | AR/AISI 304/AISI 316 |
| 11.00 | 2,00 - 3,15 | 5/64” -1/8” | 3,5 - 7,5 | 72 - 61 | AR/AISI 304/AISI 316 |
| 11.50 | 2,50 - 2,80 | 0,098 -7/64” | 5,2 - 6,1 | 66 - 64 | AR/AISI 304/AISI 316 |
| 12.00 | 2,00 - 4,00 | 5/64” -5/32” | 3,3 - 10,8 | 73 - 57 | AR/AISI 304/AISI 316 |
| 12.50 | 2,50 - 4,00 | 0,098 -5/32” | 4,7 - 10,6 | 69 - 58 | AR/AISI 304/AISI 316 |
| 13.00 | 2,00 - 4,00 | 5/64” -5/32” | 3,1 - 10,4 | 75 - 59 | AR/AISI 304/AISI 316 |
| 13.50 | 2.80 | 7/64” | 5.4 | 68.0 | AR/AISI 304/AISI 316 |
| 14.00 | 2,00 - 4,00 | 5/64” -5/32” | 3,0 - 9,6 | 76 - 61 | AR/AISI 304/AISI 316 |
| 14.50 | 2,50 - 4,00 | 0,098 -5/32” | 4,1 - 9,7 | 73 - 62 | AR/AISI 304/AISI 316 |
| 15.00 | 2,50 - 4,00 | 0,098 -5/32” | 4,0 - 9,2 | 74 - 63 | AR/AISI 304/AISI 316 |
| 15.50 | 3,00 - 3,15 | 0,118 -1/8” | 5,6 - 5,9 | 70 - 69 | AR/AISI 304/AISI 316 |
| 16.00 | 3,00 - 4,00 | 0,118 -5/32” | 5,4 - 8,9 | 71 - 64 | AR/AISI 304/AISI 316 |
| 17.00 | 2,50 - 4,00 | 0,098 -5/32” | 3,7 - 8,6 | 76 - 66 | AR/AISI 304/AISI 316 |
| 18.00 | 3,00 - 4,00 | 0,118 -5/32” | 5,0 - 8,3 | 73 - 67 | AR/AISI 304/AISI 316 |
| 19.00 | 2,80 - 4,00 | 7/64” -5/32” | 4,2 - 7,9 | 76 - 68 | AR/AISI 304/AISI 316 |
| 20.00 | 2,50 - 4,00 | 0,098 -5/32” | 3,2 - 7,6 | 79 - 69 | AR/AISI 304/AISI 316 |
| 21.00 | 4.00 | 5/32” | 7.20 | 71 | AR/AISI 304/AISI 316 |
| 22.00 | 2,50 - 4,00 | 0,098 -5/32” | 3,0 - 7,1 | 80 - 72 | AR/AISI 304/AISI 316 |
| 23.00 | 4.00 | 5/32” | 6.80 | 73 | AR/AISI 304/AISI 316 |
| 24.00 | 4.00 | 5/32” | 6.70 | 74 | AR/AISI 304/AISI 316 |
| 25.00 | 4,00 - 5,00 | 5/32” -13/64” | 6,4 - 9,3 | 74 - 70 | AR/AISI 304/AISI 316 |
| 26.00 | 4,00 - 5,00 | 5/32” -13/64” | 6,1 - 9,2 | 75 - 71 | AR/AISI 304/AISI 316 |
| 27.00 | 4.00 | 5/32” | 6.00 | 76 | AR/AISI 304/AISI 316 |
| 28.00 | 3,00 - 4,00 | 0,118 -5/32” | 3,5 - 5,8 | 82 - 77 | AR/AISI 304/AISI 316 |
| 29.00 | 4.00 | 5/32” | 5.60 | 77 | AR/AISI 304/AISI 316 |
| 30.00 | 3,00 - 4,00 | 0,118 -5/32” | 3,3 - 5,6 | 83 - 78 | AR/AISI 304/AISI 316 |
| 32.00 | 4.00 | 5/32” | 5.30 | 79 | AR/AISI 304/AISI 316 |
| 35.00 | 4,00 - 5,00 | 5/32” -13/64” | 4,8 - 7,3 | 81 - 77 | AR/AISI 304/AISI 316 |
| 40.00 | 4,00 - 5,00 | 5/32” -13/64” | 4,3 - 6,6 | 83 - 79 | AR/AISI 304/AISI 316 |
| 44.00 | 4.00 | 5/32” | 4.00 | 84 | AR/AISI 304/AISI 316 |
- AISI 304L / EN 1.4307: Austenitic stainless steel with low carbon content.
- AISI 304 / EN 1.4301: High resistance austenitic stainless steel.
- AISI 316 / EN 1.4401: Austenitic stainless steel with molybdenum strengthen corrosion resistance.
- AR / EN 10270: Wear resistant steel with a high content of carbon and manganese.
- Std.: Standard wires/apertures.
- NUBA Screening Media, at the customer’s request can provide a Quality Inspection Certificate (compliant with EN 10204.3.1.B) showing the chemical and mechanical properties of the materials. Other Aperture/wire combinations and materials such as galvanized steel etc. are available at customer’s request.
