5052 Aluminum Alloy
Request a Quote

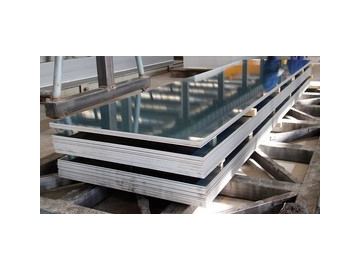

5052 aluminum sheets/plates available size range
- Thickness: 0.2-200mm
- Width: 30-2500mm
- Length: 500-13000mm
- Thickness: 0.2-6.35mm
- Width: 500-2500mm
Application
5052 aluminum alloy excels in the marine industry, electronics and chemical applications, including pressure vessels, marine equipment, electronic enclosures and chassis, hydraulic tubes, medical equipment, hardware signs, aircraft fuel tanks, fan blades, hinges, architectural fascias, etc.
Aluminum alloy state, size and mechanical propertiesAlloy | Temper | Thickness (mm) | Tensile strength (Mpa) | Elongation (%) | |
Chinese standard | Value | ||||
5052 | O | >0.5-1.3 | 170-215 | 175-215 | ≥15 |
>1.3-4.5 | ≥18 | ||||
H22 H32 | >0.5-1.3 | 210-260 | 215-245 | ≥8 | |
>1.3-4.5 | ≥10 | ||||
H24 H34 | >0.5-1.3 | 230-280 | 235-265 | ≥4 | |
>1.3-4.5 | ≥7 | ||||
H26 H36 | >0.5-1.3 | 250-300 | 255-290 | ≥3 | |
>1.3-4.5 | ≥4 | ||||
H18 H38 | >0.5-1.3 | ≥270 | ≥280 | ≥2 | |
>1.3-4.5 | ≥4 |
