Automatic Cord Reels Endurance Testing Equipment HJ0605 Manufacturer

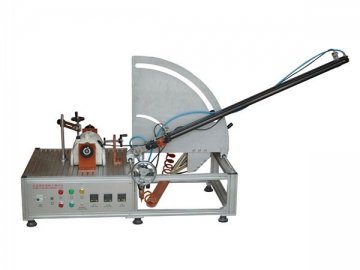

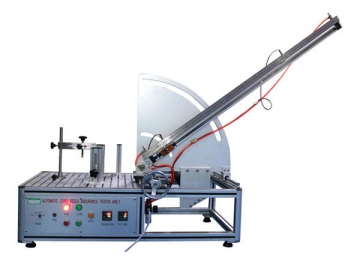

Automatic Cord Reels Endurance Testing Equipment HJ0605

Request a Quote

View All: http://hctestequipment.com

Standard
Clause 22.16 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application
It is used to inspect automatic cord reels and make sure that they are free from
– Undue abrasion or damage to the sheath of the flexible cord
– Breakage of conductor strands
– Undue wear of contacts

Test Sample
Automatic cord reels of household appliances and similar electrical appliances.

Feature
The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most electrical products.

Parameters

Input Power	220V/50HZ

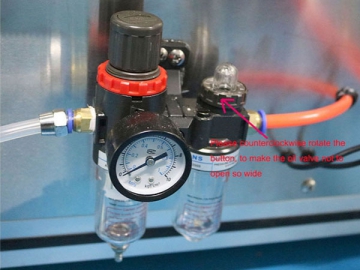

Gas Source	Compressed air 5 ~ 7kg / cm2

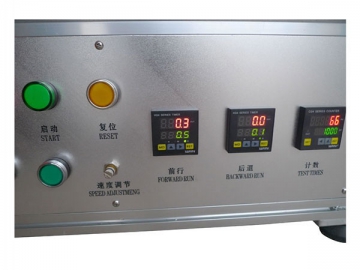

Test Speed	30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)
Test Cycles	0~9999 times, the test device will stop working automatically when the preset test cycles are finished
Drive Mode	Pneumatic
Withdrawable Angle	30~70°, can be preset
Fixture	Quick clamping fixtures, easy for clamping the test sample
Withdrawable Stroke	Maximum 1000mm, can be adjusted
