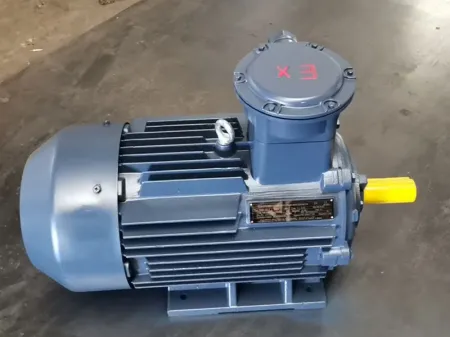

IEC Standard Explosion Proof Motor

IEC Standard Explosion Proof Motor
IEC Standard Explosion Proof Motor
Request a Quote
Electric motor in line with IEC energy efficiency classes for use in potentially explosive atmospheres

Our IEC standard explosion-proof motors are electric motors that comply with IEC energy efficiency classes for use in potentially explosive atmospheres. These motors feature a compact size, lightweight, reliable operation, attractive appearance, high efficiency, large temperature rise margin, low vibration, low noise, high starting torque, and advanced explosion-proof structure. Their power grades and installation dimensions conform to the standards of the International Electrotechnical Commission (IEC).

  • Certification: ATEX, IECEx
  • Rated voltage: 380V (customizable)
  • Rated frequency: 50/60Hz
  • Output power: 0.18-355kW
  • Duty: continuous duty SF1.0 (optional SF1.0-1.3)
  • Cooling method: IC411, IC416
  • Insulation class: class F
  • Application: explosive gas atmosphere, zone 1/zone 2
  • Ambient temperature: -20-50℃ (customizable)
  • Explosion protection: Exd IIB T4 Gb: IP55
    Exd IIC T4 Gb(F#80-255)/ Exd II(H2)Gb(F#250-355): IP55/IP56/IP65/IP66
