5083 Aluminum Alloy
Request a Quote

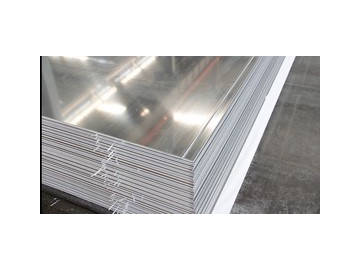

5083 aluminum sheets/plates available size range
- Thickness: 0.2-200mm
- Width: 30-2500mm
- Length: 500-13000mm
- Thickness: 0.2-6.35mm
- Width: 500-2500mm
Application
5083 aluminum alloy is suited for shipbuilding, fireproof pressure vessels, automotive and aircraft welded plates, vehicle bodies, tipper trucks bodies, mine skips & cages, missile parts, armored car, etc.
Aluminum alloy state, size and mechanical properties| Alloy | Temper | Thickness (mm) | Tensile strength (Mpa) | Elongation (%) | |
| Chinese standard | Value | ||||
| 5083 | O | ＞3.0-6.0 | 275-360 | 275-350 | ≥15 |
| ＞6.0-12.5 | ≥16 | ||||
| ＞12.5-50.0 | ≥15 | ||||
| ＞50.0-80.0 | 270-345 | 270-345 | ≥14 | ||
| H32 | ＞3.0-6.0 | 305-380 | 305-380 | ≥8 | |
| H34 | ＞3.0-6.0 | 340-400 | 340-400 | ≥7 | |
| H112 | ＞6.0-12.5 | ≥275 | ≥275 | ≥12 | |
| ＞12.5-40.0 | ≥10 | ||||
| ＞40.0-50.0 | ≥270 | ≥270 | ≥10 | ||
