Used for surface treatment of rubber profiles

JCL-X-I
  • JCL-X-II

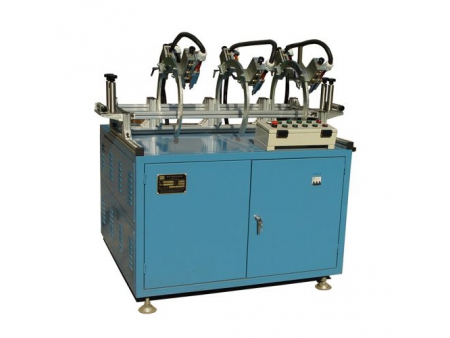

  • JCL-X-I: Simple plasma equipment that can meet basic needs.

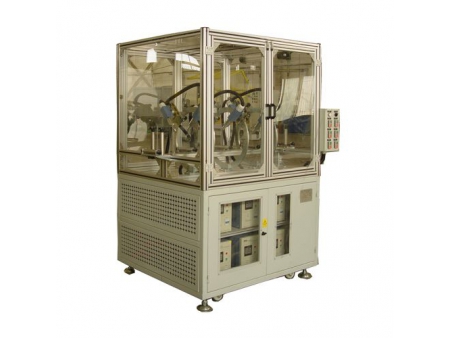

    JCL-X-II:With a protective cover, and the number of plasma torches can be selected according to the process requirements.

    Applications
    Plasma treater is used for surface treatment of rubber profiles.

    Specifications
    Power Each plasma torch has a power of 1000VA
    Tooling Circular support frame with adjustable plasma gun holder and position adjustment with scale.
    Plasma Torch Each torch can handle a width range of 10mm, and the number of plasma torches can be configured according to customer requirements. Compressed air supply.
    Electrical Control The plasma power supply is installed on the equipment frame.
    Frequency 20kHz
    Compressed Air Supply >0.5MPa
    Flow Rate 240L/min per torch
    Temperature Range -10℃~ 50℃
    Relative Humidity < 93% (without condensation)
    Atmosphere Pressure 86~106kPa
