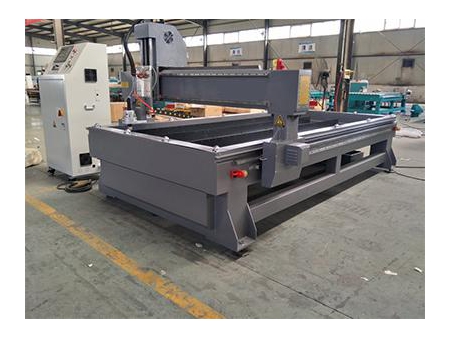

CNC plasma cutters are designed to cut sheet metals. They are a combination of a plasma cutter and digital control system with an excellent precision, efficiency and versatility, thereby providing an ideal alternative to traditional manual cutting.

Materials Cut

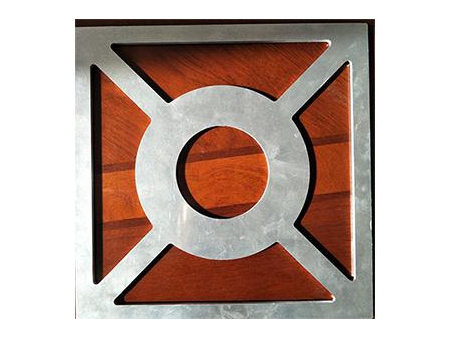

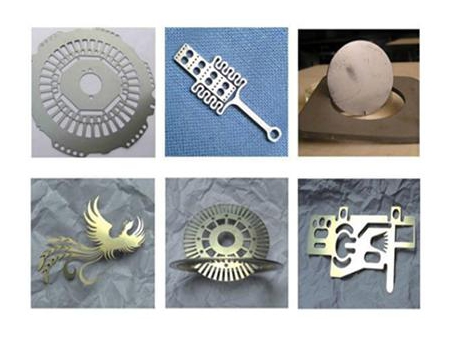

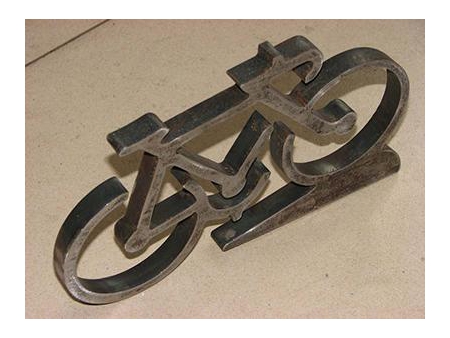

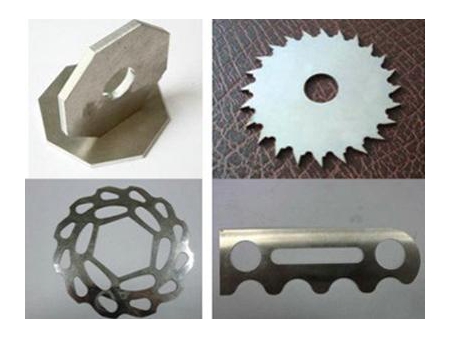

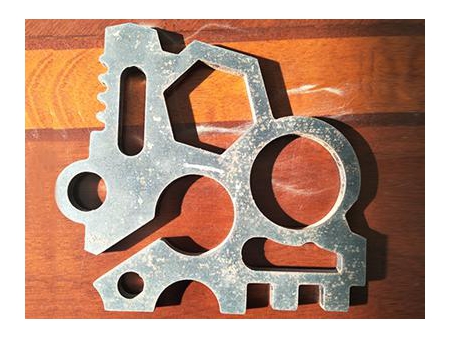

Various metal plates including steel plate, copper plate, iron plate, aluminum plate, galvanized sheet, titanium plate, and more

Applications

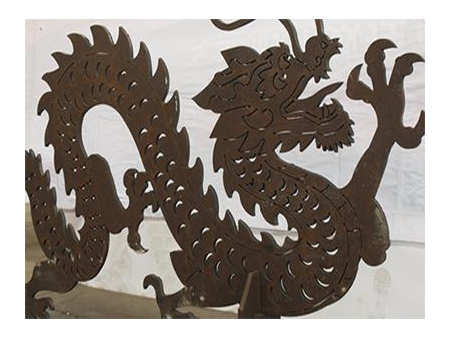

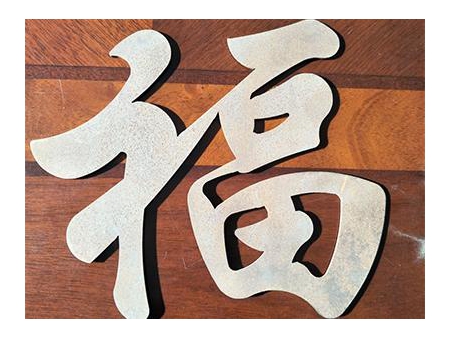

Advertising industry: manufacturing luminous characters, stainless steel business letters, signs and more
Furniture industry: manufacturing security doors, iron gates, stainless steel doors and more
Sheet metal industry: cutting iron plates, aluminum plates, galvanized sheets, white steel plates, titanium plates and more

Features

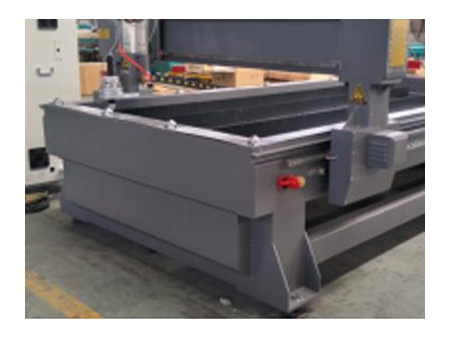

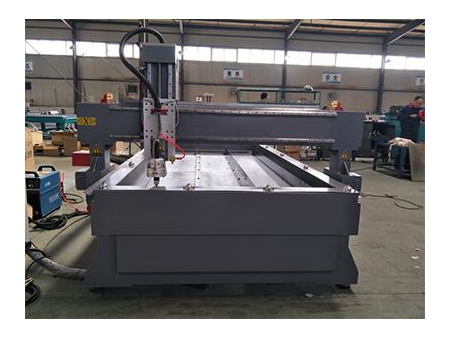

The machine body is seamlessly welded using thick walled square steel after it has undergone a vibration aging treatment. This ensures no deformation, even after long-term use.

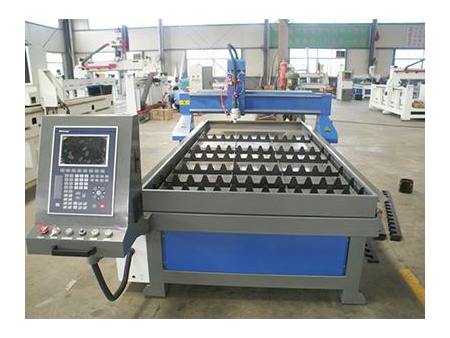

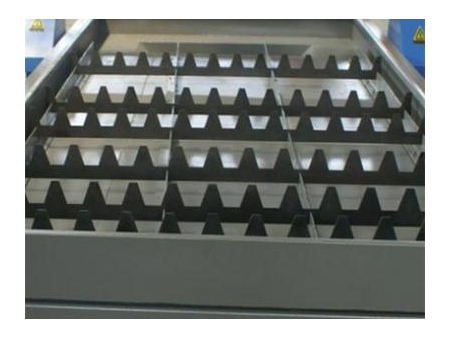

The jagged platform is specially designed for cutting metal materials.

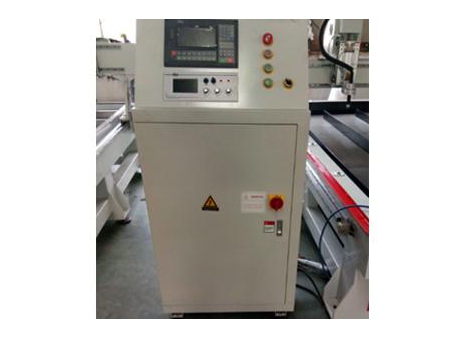

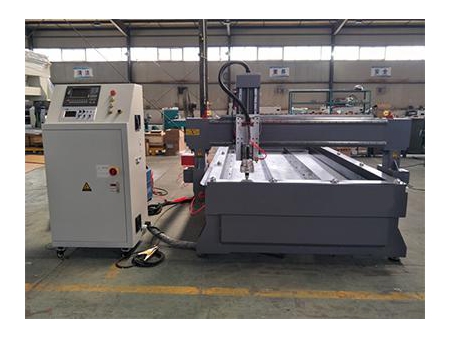

This machine is equipped with an independent control cabinet with a high configuration, stable and easy operation. The arc ignition success rate is more than 99%.

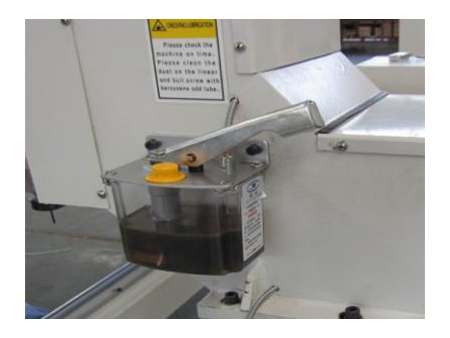

The oil lubrication system lubricates parts to prevent rust. It is easy to use.

Parameters

Model	F8-P1325	F8-P1631
Working area	13002500200mm	16003100200mm
Applicable Materials	iron plate, aluminum plate, galvanized sheet, white steel sheet, titanium plate,
Control system	CC-S3C StatAI
Processing thickness	0.5mm-25mm
Cutting Speed	0-8000mm/min
Working voltage	3 phase 380V/220v
Power frequency	50HZ
Cutting current	60A/100A/120A
File transfer method	USB ports
Working mode	Non-touch pilot arc

Optional Device

A hypertherm plasma power source of 45A/65A/85A/105A is optional.
