CAF aerator is a kind of aeration equipment for sewage treatment. It is mainly used for the efficient aeration of air flotation tank in sewage treatment process.
Instruction
Parameter
| Model | Power (kw) | Oxygenation capacity (m3/h) | Bubble diameter (um) | Pool depth (mm) |
| CAF1 | 1.5 | 1-80 | 20-80 | customized |
| CAF2 | 2.2 | |||
| CAF3 | 3 | |||
| CAF4 | 4 |
Details

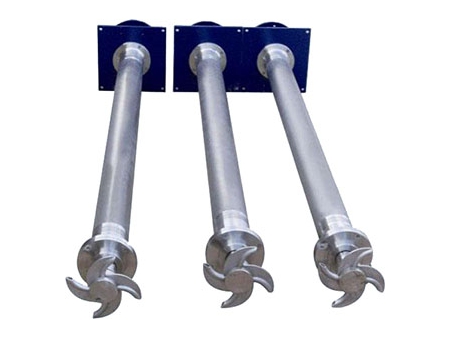

Diffuser impeller
The diffuser impeller of the cavitation air flotation aerator is made of stainless steel or carbon steel, so it’s more corrosion resistant while treating sewage.
Working principle
- With the addition of coagulant and flocculants, the stability of colloidal particles in sewage is destroyed, which promotes colloidal particles contact and forms physical flocculation and chemical flocculation.
- The cavitation air flotation aerator produces micro bubbles into sewage, and bubbles will be distributed evenly in sewage by diffuser impeller made of stainless steel.
- The pollutants in the sewage will float to the surface under the reaction of buoyancy. And the sludge is discharged by scrum removal system.
Characteristics
- The cavitation air flotation aerator produced by BETTER EPT has great capacity and is highly efficient, with a maximum oxygen charge of 80 square meters per hour.
- The cavitation air flotation aerator will aerate into water to remove the odor in the sewage effectively during the treatment process. Meanwhile, the aeration increases dissolved oxygen in the water, which provides favorable conditions for the subsequent treatment.
