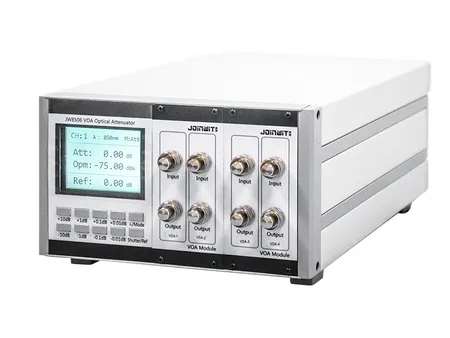

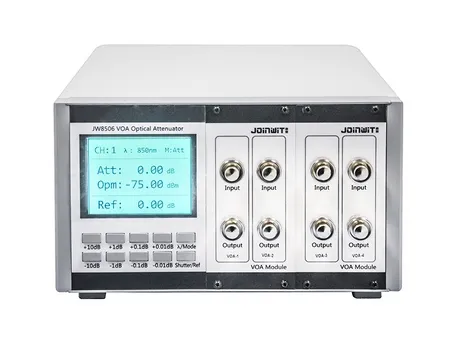

JW8506 Benchtop Variable Optical Attenuator

JW8506

Designed for testing optical transceivers and integrated optical networks, this variable optical attenuator ensures efficient performance with its multi-channel independent attenuation capability, delivering higher data throughput and faster testing rates. Equipped with extensive communication interfaces, it seamlessly integrates with our product lineup. This makes it the perfect choice for sensitivity testing, bit error rate analysis, and precise attenuation measurements in 40G/100G optical modules, optical networks, and optical transmission systems.

Features

Supports multi-channel independent attenuation (customizable channel count)
Compatible with single-mode wavelengths
Includes internal optical power meter functionality
Offers fast output and precise attenuation control
Supports optical output lock function
Features VOA shutdown and zeroing capabilities

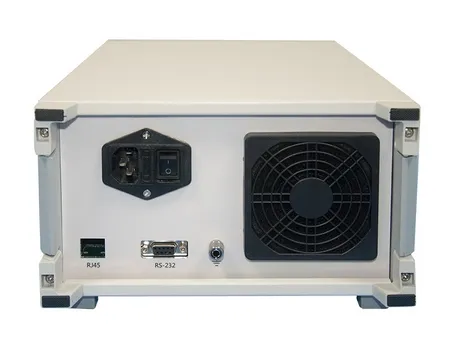

Equipped with RS232 and RJ45 interfaces
Enables Ethernet communication for simultaneous multi-channel control
Provides a comprehensive software protocol for easy system integration

Specifications

Model	JW8506/JW8506S
Type	Single Mode Variable Optical Attenuator
Maximum Attenuation	45dB
Attenuation Linearity	±0.2dB (0 to 30dB) ±0.4dB (30 to 45dB)
Fiber Type	9/125
Insertion Loss	≤1.5dB
Display Resolution	0.01dB
Maximum Allowable Input Level	A: 13dBm C: 27dBm
Optical Connector Type	FC/PC (or APC)
Communication Interface	RS232/RJ45 (optional)
Response Time	< 0.2s
Operating Temperature	-5℃ to 40℃
Storage Temperature	-25℃ to 70℃
Power Supply	AC 220V 50Hz
Dimensions	3U×235×380mm
