Fiber Optic Variable Attenuator with Polarization Maintaining Fiber

PM Mode (Cylindrical Ø5.5)

Enhanced Performance with MEMS VOA with PM Mode
MEMS VOA PM (Polarization Maintaining) is designed to preserve polarization in fiber optic systems. Polarization is an essential aspect of light signals in optical fibers, crucial for industries such as sensing, measurement, and communications. Our MEMS VOA PM attenuates light signals while maintaining polarization within the fiber optic system. Compact in size, high in precision, and operating at high speeds, it allows real-time adjustment of signal power. With exceptional stability, it maintains polarization even in dynamic environments.

Features
  • Proven MEMS durability and reliability
  • Compact size
  • Compliance with Telcordia GR-1221 and RoHS requirements
Applications
  • Distributed power balancing in OADM, multiplexers/DMUX, band equalizers, and channel equalizers
  • Input power adjustment in EDFA (Erbium-Doped Fiber Amplifiers)

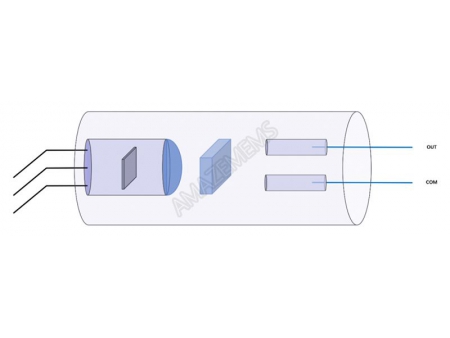

Schematic Diagram
Optical Specifications
PARAMETER UNIT VALUE
Wavelength nm 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650
Test Wavelength nm 1310 / 1550 / 1625
Attenuation Type   Dark or Bright
Attenuation Range dB 0 ~ 40
Attenuation Resolution   Continue
Attenuation Repeatability dB ≤ 0.1
Insertion Loss dB ≤ 0.8
PDL dB ≤ 0.3
WDL dB ≤ 1.0
Extinction Ratio dB ≥ 18
Return Loss dB ≥ 50
Durability cycle ≥ 1 x 109
Maximum Optical Power mW ≤ 500
Latching Type   Non-latching

MEMS VOA is based on micro-electro-mechanical systems (MEMS) technology. It utilizes rotating MEMS mirrors to control the optical coupling between input and output fibers, achieving precise attenuation levels. Our MEMS VOA offers two variants with different default states: bright type and dark type. The bright type exhibits the lowest loss state at 0 V, while the dark type achieves the lowest insertion loss between 4.5-5V voltage range. With a compact package, our VOA ensures high reliability, durability, and long lifespan.
