MEMS MINI VOA Variable Optical Attenuator
Request a Quote

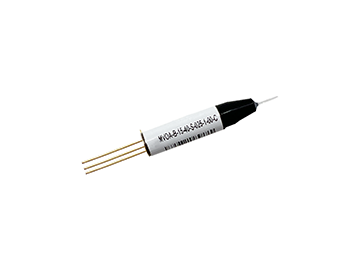

Single Mode (Cylindrical Ø3.5)
Our single mode MEMS MINI VOA is based on micro-electro-mechanical system (MEMS) technology. The MEMS chip consists of an electrically movable mirror on a silicon frame. By applying voltage to the MEMS chip, the mirror rotates, altering the optical coupling between the input and output fibers of the MEMS VOA.
Features
- Proven MEMS durability and reliability
- Ultra-compact size
- Compliant with Telcordia GR-1073-CORE and RoHS requirements
- Direct voltage control
Applications
- Distributed power balancing in OADM, multiplexers/DMUX, band equalizers, and channel equalizers
- Input power adjustment in EDFA (Erbium-Doped Fiber Amplifiers)

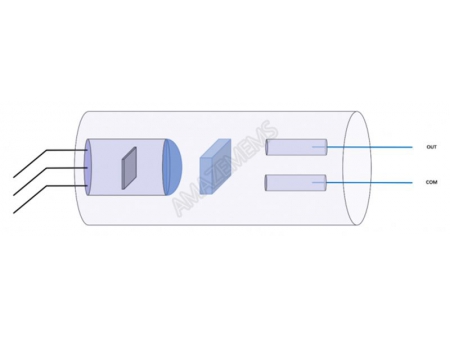

Schematic Diagram
Optical Specifications
| PARAMETER | UNIT | VALUE |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 |
| Test Wavelength | nm | 1310 / 1550 / 1625 |
| Attenuation Type | Dark or Bright | |
| Attenuation Range | dB | 0 ~ 40 |
| Attenuation Resolution | Continue | |
| Attenuation Repeatability | dB | ≤ 0.1 |
| Insertion Loss | dB | ≤ 0.8 |
| PDL | dB | ≤ 0.3 |
| WDL | dB | ≤ 1.0 |
| ≤ 0.5 | ||
| Return Loss | dB | ≥ 50 |
| Durability | cycle | ≥ 1 x 109 |
| Maximum Optical Power | mW | ≤ 500 |
| Latching Type | Non-latching |
