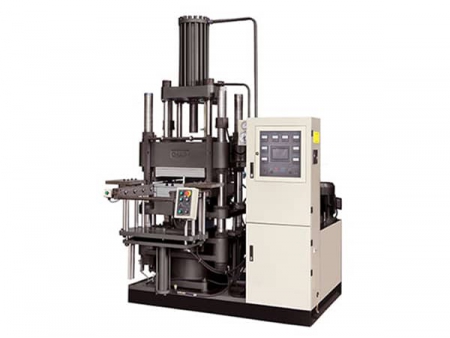

2000KN Thermoset Plastic Transfer Molding Machine
Applications
Having the advantages of high efficiency, high reliability and low noise, CHAP thermoset plastic transfer molding machine is widely used for plastic encapsulation of motors, electrical elements, pneumatic elements, electromagnet, etc.
| YJ-2000 | |
| Clamping force | 2000 KN |
| Clamping stroke | 300 mm |
| Mould opening&closing speed | ≥50 mm/s |
| Work desk effective dimension | 580mm×600mm |
| Platen spacing | 350~800mm |
| Injection stroke | 500 mm |
| Injection force | 400 KN |
| Injection device adjustable range | 190~500 mm |
| Injection pole dia | 100 mm |
| Motor power | 5.5 KW |
| Heating power | Same to mould heating power |
| External dimension (LxWxH) | 1770mm×1255mm×(2550~3300)mm |
| Oil tank capacity | 270 L |
CHAP is a major manufacturer and supplier of thermoset plastic transfer molding machine in China. Our company is located in Ningbo City which provides us with convenient transportation. Therefore, we can deliver our vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, custom rubber machine, etc. to you in time. These products are manufactured in conformity with the standard of ISO, so our worldwide customers can feel secure in inquiring and ordering. In addition, we establish long term cooperative relationship with material suppliers, which helps reduce our material purchasing cost. Therefore, we can provide rubber machinery at reasonable prices. If you have any need, please contact us directly. We look forward to cooperating with you.
