Product introduction
The CRI2000 Rubber injection molding machine is divided into a FILO injection device and a FIFO injection device.
Heating plate size: 550 mm×550 mm.
Clamping force: 2000 KN.

Applications

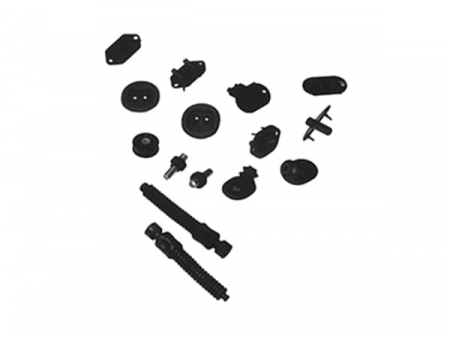

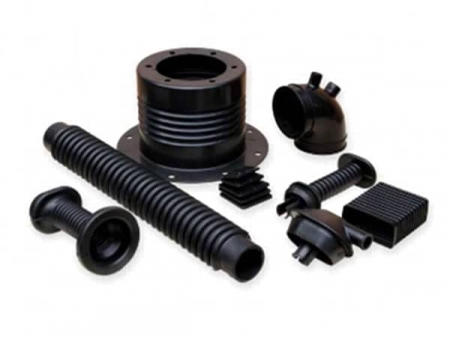

Compact and efficient, CHAP rubber injection molding machine is particularly suitable for producing rubber products that are difficult to mold, like those with complex shapes.

Features
  • The CRI2000 rubber injection molding machine features two operation modes: manual and semi-automatic
  • This rubber injection machine is equipped with a fully enclosed security screen and an infrared light curtain protection device, thus giving the machine a higher level of safety during operation.
  • This machine's preformed plastic injection barrel is heated with hot oil, which can better control machine's temperature.
  • This molding machine features a four-cylinder parallel injection structure which improves the balance during the rubber injection process, and cuts down on the longitudinal space of the injection component. As a result, the injection plunger is easy to remove.
  • This machine is very compact in structure, which significantly improves its adaptability to different applications.
Technical Specifications of Rubber Injection Molding Machine

CRI2000 CRI2000
Clamping force 2000 KN 2000 KN
Heating plate size 550 mm×550 mm 550 mm×550 mm
Heating plate spacing 450~550 mm 450~550 mm
Theoretical injection capacity 2000cm3 2000cc
Screw diameter ¢50 mm ¢45 mm
Screw rotational speed 0~120 r/min 0~120 r/min
Plunger diameter ¢70 mm ¢90 mm
Injection pressure 170 Mpa 170 Mpa
Mould opening stroke 400 mm 400 mm
Motor power 15KW 15KW
Heating power 16.4KW 16.4KW
External dimension (LxWxH) 3200mm×2050mm×4100mm 3320mm×1850mm×4100mm
Oil tank capacity 380L 380L

Beginning its business in 2004, CHAP is one of the rubber injection molding machine manufacturers and suppliers. We can produce various rubber machineries, such as rubber transfer molding machine, C-Frame Transfer type molding machine, plate rubber vulcanizing machine, custom rubber machine, and more. Located in Ningbo City, we are surrounded by transportation facilities like highways, airports, and sea ports. This allows us to conveniently transport our products and effectively reduce our customers' freight charges. If you are interested in our products, please do not hesitate to contact us. We look forward to doing business with you.
