Automatic Drawer Box & Wine Box Making Machine, LY-1632JH

Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Automatic Drawer Box & Wine Box Making Machine, LY-1632JH
Request a Quote

Complete paper box production line

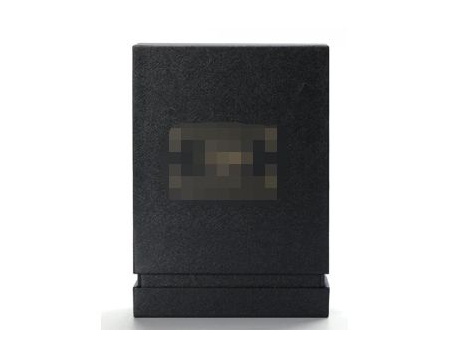

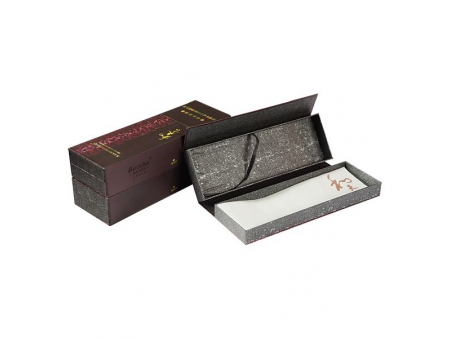

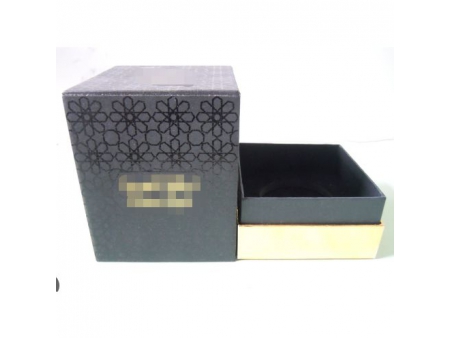

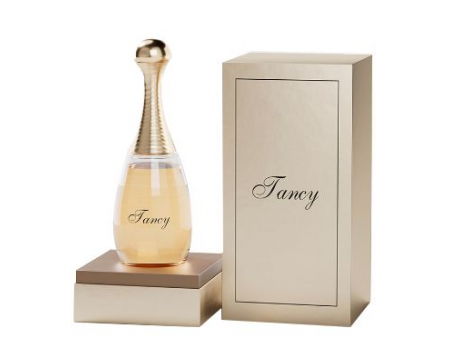

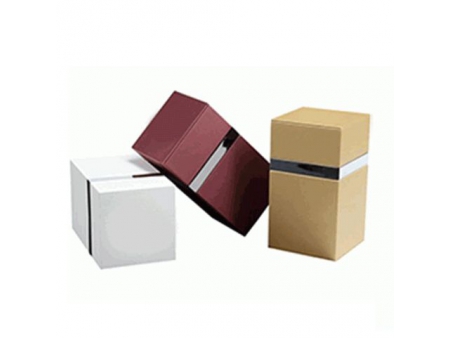

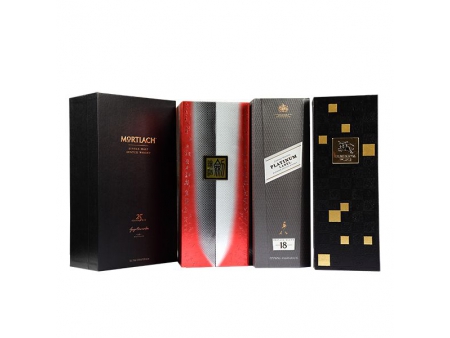

Sample Boxes

The LY-1632JH automatic rigid drawer box making machine is designed with a modular approach, utilizing independent modular visual positioning, robotic arm positioning and rigid box wrapping machine. The box making machine boasts an impressive positioning accuracy of 0.05 mm, making it ideal for making high-quality rigid boxes with sophisticated designs, such as luxury wine boxes, cosmetic boxes, and electronic product boxes.

Get A Quote

Features
  • High Positioning Accuracy
    The LY-485C visual positioning machine uses two industrial cameras with a resolution of 5 million pixels each, plus Japan-made robotic arm, ensuring the positioning accuracy of ±0.05mm.
  • High Wrapping Accuracy
    The platform’s folded edge is accurately located using a visual manipulator, and the straight line position is then directly conveyed to the molding machine for edging. This approach minimizes operational errors in the synchronous belt and ensures precise alignment during the manufacturing process.
  • High Precision Base Plate Positioning
    The base plate is firmly secured by a rotating cylinder as it is pressed onto the mold, which reduces the chances of error due to the base plate deformation.
  • Beautiful Appearance
    During production and processing, the surface paper is wrapped and glued to the box without any defects such as overflowing glue, weak corrugation, wrinkles, scratches, warped corners, or bubbles.
  • High Manufacturing Speed
    Separate HMI (human machine interface) system with a memory function allows for quick mold changes, easy operation, and high efficiency, contributing to the top manufacturing speed of 10-20 pieces per minute.
  • Powerful Host Function
    The host boasts impressive capabilities, including the ability to position flat cardboard for the inner linings of cases, as well as making two-piece boxes and irregular-shaped boxes. Additionally, the host can easily connect to other molding modules from Lishunyuan, which avoid redundant investment in equipment purchase.
Parameters
Product Model LY-1632
Paper Thickness 110-300 g/m2
Paper Size W 300-500 mm
L 300-800 mm
Cardboard Thickness 1-3 mm
Cardboard Size W 240-320 mm
L 400-640 mm
Finished Box Size W 100-160 mm
L 100-170 mm
H 240-320mm
Edge Wrapping Size 15-30 mm
Paper Positioning Accuracy ±0.1 mm
Base Plate Positioning Accuracy ±0.5 mm
Manufacturing Speed 10-20 sheets/min
Production Process
