Automatic Rigid Box Making Machine, LY-HB1200CM
Request a Quote
Complete box line for manufacturing large set-up boxes and hinged-lid boxes
The LY-HB1200CM is an automated box-making machine that is designed for making large high-end rigid boxes quickly and efficiently. The box making machine can produce a variety of rigid box types in large quantities like phone boxes, jewelry boxes, cosmetics boxes, watch boxes, etc. The rigid box making machine is available for boxes of sizes ranging from 85mm to 600mm in length, 70mm to 400mm in width, and 15mm to 120mm in height, making it suitable for meeting the demands of the modern packaging market.

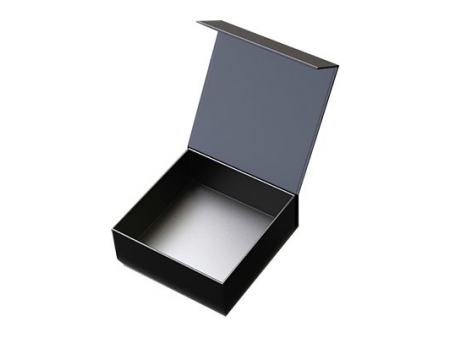

- Jewelry Box

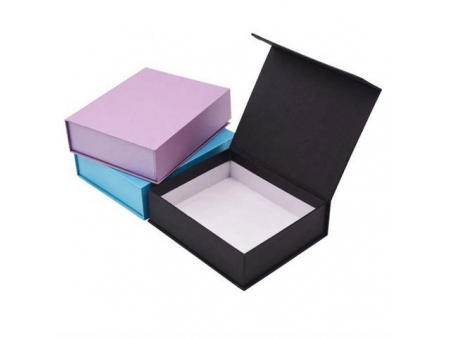

- Book-style Box

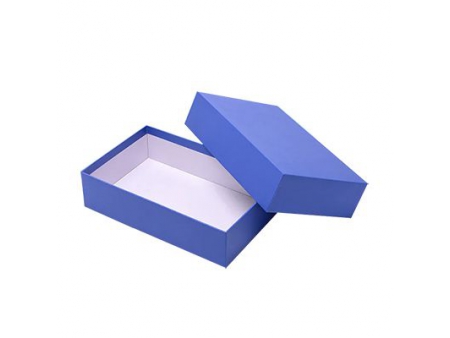

- Two-piece Box

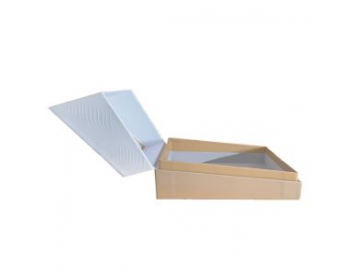

- Hinged Lid Shoulder Box
- Irregular Shaped Box
Features
- The box making machine is innovatively designed with a more appealing appearance.

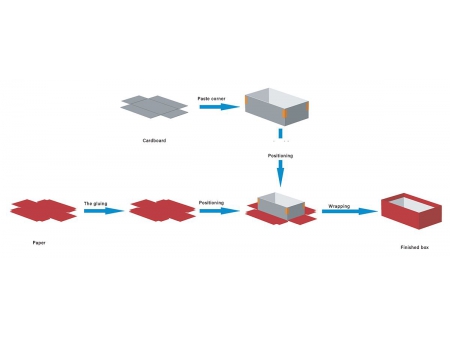

- The rigid box machine features a full servo control system coupled with an advanced image positioning system, allowing for fully automated feeding, gluing, cardboard inserting, corner pasting, positioning, box grabbing, edge wrapping, flap folding, and box forming.
- The feeder, glue applicator, and belt conveyor are equipped with servo drives from well-known brands like Panasonic, allowing for variable speed, high precision, easy adjustment, and time savings.
- The positioning for the corner pasting is equipped with an image positioning system and robotic arm to improve precision and efficiency, with the error range of ±0.05mm, as well as faster positioning and debugging speeds.
- The rigid box wrapping machine uses THK linear guides and virtual electronic cam drive, which is more stable, wear-resistant, and smoother in motion, with a larger size range for folding depth and flap length dimensions.
- The box making machine is suitable for making high-quality paper boxes by interlocking or overlapping the short flaps of the box.
- The box making machine uses a new adhesive application method that is available for both white glue and hot melt adhesive.
- The box making machine is capable of making slotted paper products and completing edge wrapping and folding in one go.
| Product Model | LY-HB1200CM | |
| Paper Size | L | 120mm-880mm |
| W | 95mm-600mm | |
| Paper Thickness | 80-300g/㎡ | |
| Pile Height | 850mm | |
| Cardboard Thickness | 1-3mm | |
| Finished Box Size | L | 85mm-600mm |
| W | 70mm-400mm | |
| H | 15mm-120mm | |
| Positioning Accuracy | ±0.05mm | |
| Manufacturing Speed | 20-30pcs/min | |
| Glue Container Volume | 50KG | |
| Air Pressure | 175L/min | |
| Weight | 6200KG | |
| Overall Size (L*W*H) | 8500 mm*3400 mm*3500 mm | |
- All computer-based settings
- Troubleshooting
- Automatic feeding of papers and cardboards
- 24-hour control for preheating glue
- 999 built-in formulas in the machine
- Separate HMI (human machine interface) of box heat-sealing
- INOVANCE servo control system
- Image positioning system and robotic picking & placing (with an error of ±0.05 mm)
- Automatic box lifting and retrieval
- Automatic system of adhesive viscosity control (optional)
- Convertibility to be equipped with cardboard splicing machine (optional)

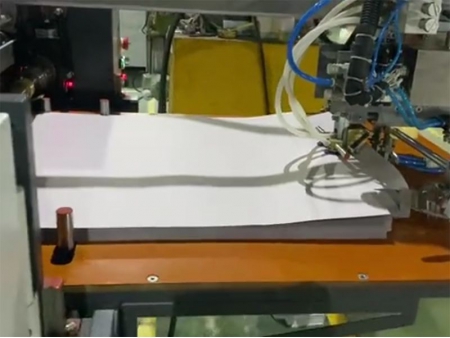

- Paper Feeder
- Full servo controlled dual feeders ensure feeding stability.
- Front-suctioning and rear-blowing feeders avoid double-sheet feeding.
- 620mm wide glue roller allows feeding single or double-sided paper simultaneously.

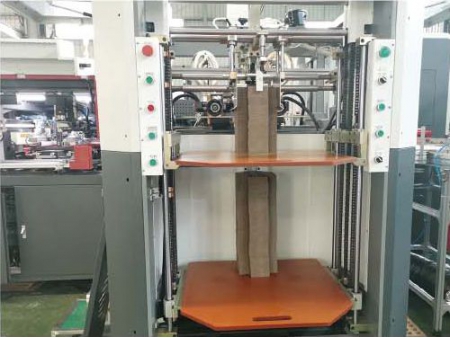

- Paper Pallet
- Less loading pauses as maximum pile height mounting up to 850 mm.

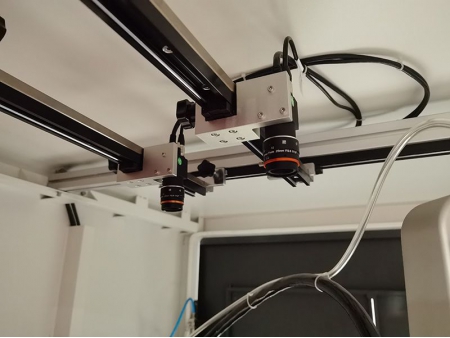

- HD Visual Positioning
- HD visual positioning plus YAMAHA-made robotic arm allow the top manufacturing speed of 30 pieces per minute.
- Robotic arm can pick up two boxes at once with positioning accuracy reaching ±0.05 mm.

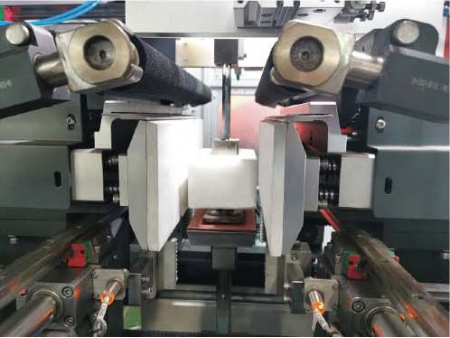

- Automatic Box Wrapping
- The function of automatic box wrapping avoids the paper from scratching when pulling the box.
- The cost is lowered as each forming head can operate separately.
- The box making machine is fully controlled by servo, allowing easy mode switch in just 5 minutes.

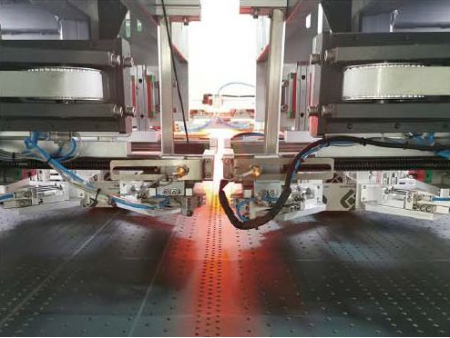

- Double-Layer Edge Folding
- This machine is designed with double-layer edge folding which stabilizes the blade, brush and press plate, saving manufacturing costs.
- The box making machine is fully controlled by servo, and each part can be adjusted through the digital display screen. The high accuracy reduces the need for operators to have technical expertise.
- Full Servo Control
- The box making machine is fully controlled by servo, reducing the need for operators to have technical expertise.
- Continuous Feeding with Dual Pallets
- Feeder allows fast and stable delivery of papers, capable of manufacturing rigid boxes with magnetic closures.
- Continuous feeding prevents costly production downtimes and increases production efficiency.
