SurSurface finishing system for applying color coating on wood panels

The double roller roll coater is designed with a high-density sponge roller to complete colorant transfer coating. The sponge roll has a high water absorption rate and excellent wear resistance, making it ideal for water and oil based paints that traditionally have a poor adhesion.

A wide range of substrates are applicable to this machine, including furniture boards, wooden doors, cabinet panels, floors, inorganic plates, and more.

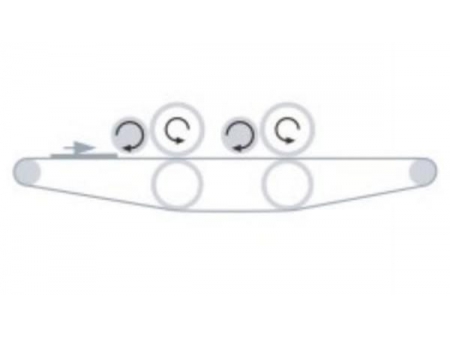

Working principle

The doctor roll ensures the colorant is evenly distributed on the sponge roll, thus ensuring the colorant applied to the produce surface is even.

Specifications
Effective processing thickness 2-80mm
Effective processing width 620/920/1320mm(optional)
Minimum processing length 300mm
Transport speed 0-20m/min
Heating power 3kW
Power supply 380V/50Hz
Paint type Water-based/Oil-based
Features
  • The products coated using this machine feature an even surface coloration.
  • Water-based or oil-based paints are used, which can be quickly dried and are efficient, green and environmentally friendly.
Optional models

SR-R2H series Coloration Coating Machine

Model Effective processing width (mm) Conveying power (kw) Power of coating roll (kw) Power of doctor roll (kw) Outline size (L*W*H)
620 620 0.75 0.75 0.55 1800*1850*1700
920 920 0.75 0.75 0.75 1800*2150*1700
1320 1320 1.5 1.5 0.75 1800*2450*1700
