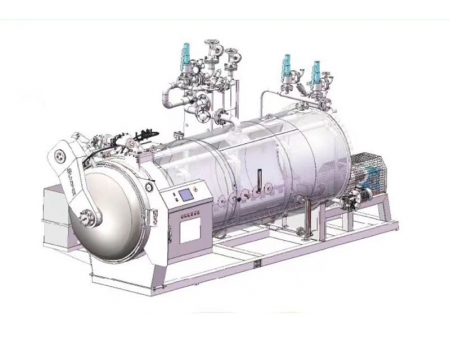

Shaking retort is an oscillating motion sterilizer that enables products to move in a back-and-forth reciprocating motion, thereby accelerating the heat transfer inside the package, reducing the heating and heat penetration time, and improving the taste of the food product. Apart from its ability to provide uniformed heating effect, the oscillating sterilizer also performs horizontal reciprocating agitation to evenly mix food products.

The Shaking retort is more suitable for high-viscosity foods or semisolid foods (liquid containing soft particles) packaged in bottles, boxes and pouches.

Applications

Shaking retort is applicable to sauces, soups, bottled beverages, baby foods, infant supplements and more food products requiring high processing quality.

Specifications
Model Dimension (mm) Retort wall thickness (mm) Max. working pressure (MPa) Max. working temperature (°C) Approx. retort weight (kg) Approx. operating weight (kg) Capacity (m3) Power (kW) Voltage (V)
L W H
PLJ12-4
5650 1700 1850 5 0.3 130 1860 3300 4.46 5.5 7.5 380
PLJ13-4
5050 1800 2100 6 0.3 130 2300 4000 5.81 7.5 11 380
PLJ14-4
6000 1900 2200 6 0.3 130 2500 4460 6.77 7.5 11 380
PLJ15-4
6300 2000 2400 6 0.3 130 2900 5900 7.82 11 15 380
PLJ15-5
7350 2000 2400 6 0.3 130 3250 6000 9.59 11 15 380
PLJ15-6
8200 2000 2400 6 0.3 130 3500 6700 11.35 11 15 380
Features
  • Efficient heat penetration and reduced processing time, retaining the original taste and nutrients such as vitamin C and PPO (polyphenol oxidase) of foods;
  • Can prevent heat damage to the food surface and its packaging;

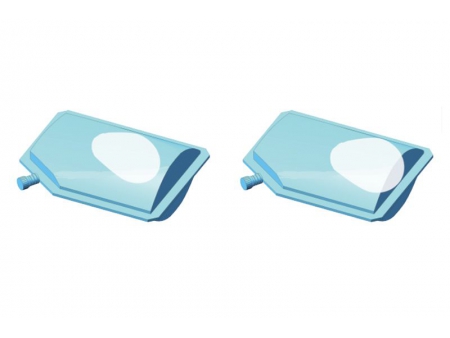

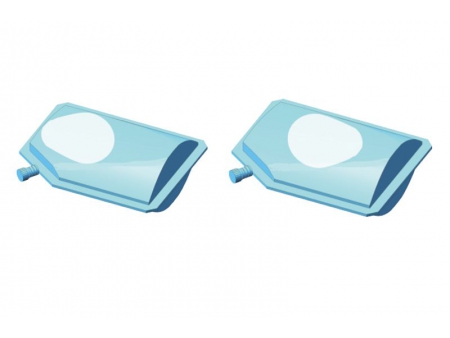

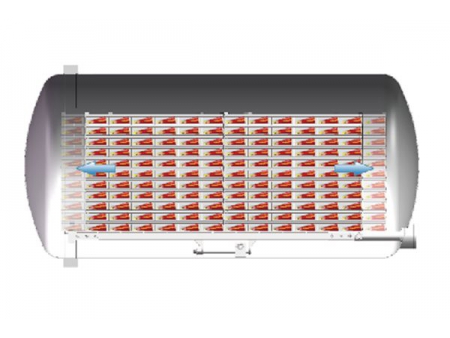

Working Principle
FAQ

This technology's gentle shaking motion stands out due to its simplicity. Ideal for liquid or liquid-particle mixtures, the oscillating feature accelerates heat transfer, resulting in faster processing and superior product quality. It is suitable for various containers, including pouches, cups, bowls, and paperboard.

This food sterilization equipment is adept at sterilizing sauces, soups, bottled beverages, baby foods, and infant supplements.

Certainly. Besides our standard shaking retort, we can tailor the product based on your requirements, such as heating methods, component pipelines, and controller installation positions.

Our food processing equipment has earned numerous national patents, European CE certification, and ASME certification. We have also passed the ISO 9001 management system certification, making our equipment more reliable.

A total of 1157 clients from countries such as Malaysia, Mexico, Colombia, Ecuador, the Philippines, South Korea, Germany, and various other nations have chosen Sumpot food processing equipment, consistently appreciating its dependable performance.
