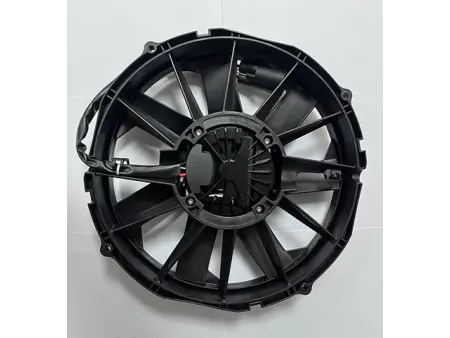

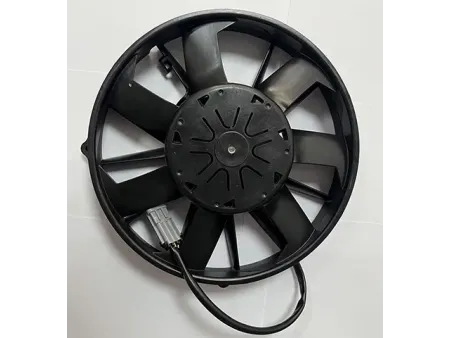

Automotive Low Voltage Electric Fan
Brushless electric fans for auxiliary cooling in new-energy commercial vehicles and traditional internal combustion engine (ICE) vehicles
Saiensi specializes in the R&D and manufacturing of automotive low voltage electric fans. With a CNAS-certified laboratory, an 80% in-house production rate, and rigorous control over materials, cost, delivery, and quality, the company produces electronic cooling fans engineered for both new energy commercial vehicles and conventional fuel vehicles. These fans, typically operating at 12V or 24V, are motor-driven and electronically controlled to adjust rotational speed, providing reliable cooling support for engines and air-conditioning systems.
- Conventional vehicles: Installed at the front of the engine compartment, working with the radiator or coolant tank to assist engine cooling.
- Battery pack cooling: Mounted within the battery system, integrating waterproof fans and liquid cooling for efficient heat dissipation.
- Drive motor cooling: Positioned near the motor housing or coolant channels to maintain stable motor temperatures.
- Power electronics cooling: Supports air or liquid cooling combinations to protect critical electronic components.
| Model | | | | |
| Test Voltage | 27V | 27V | 14V | 27V |
| Voltage Range | 18V-32V | 18V-32V | 9V-16V | 18V-32V |
| Load Current | 18A±5% | 30A±5% | 23A±5% | 10A±5% |
| Speed | 1000-4100rpm±5% | 1200-4750rpm±5% | 800-3500rpm±5% | 800-3400rpm±5% |
| Max Airflow | OPA 3600m³/h±5% | OPA 4300m³/h±5% | OPA 3000m³/h±5% | OPA 2800m³/h±5% |
| Power | 500W±5% | 800W±5% | 300W±5% | 300W±5% |
| Control Method | PWM (50-500HZ) | PWM (50-500HZ) | PWM (50-500HZ) | PWM (50-500HZ) |
| Static Current | 50uA | 50uA | 50uA | 50uA |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
Axial Fan Airflow Performance Curve Report No.: SES-100066
- Speed: 4100 rpm
- Air Density: 1.2 kg/m3
- Enhanced efficiency: DC brushless fans achieve over 85% average efficiency, significantly higher than traditional AC fans (70%), reducing energy consumption and improving cooling performance.
- Environmental compatibility: Meets strict emission and ESG standards through intelligent speed regulation that minimizes energy waste.
- Smart temperature control: Integrated PWM or ECU controller adjusts fan speed in real time based on temperature feedback, preventing overheating and energy loss.
- Low noise design: Optimized blade geometry and aerodynamic design reduce tonal noise by up to 30%.
- Durability: Built with Japanese NSK bearings and ADC12 die-cast aluminum, ensuring 20,000–50,000 hours of service life and stable performance under –40°C to 130°C.
What are the technical advantages of Saiensi’s low-voltage electric fans?
The DC brushless fan achieves over 85% efficiency, outperforming conventional AC fans. It uses high-quality NSK bearings and ADC12 aluminum materials for extended service life (20,000–50,000 hours) and high-temperature endurance (–40°C to 130°C).
