Automatic Oral Thin Film Cassette Packaging Machine, KZH-60
Oral thin film cassette packaging and labeling

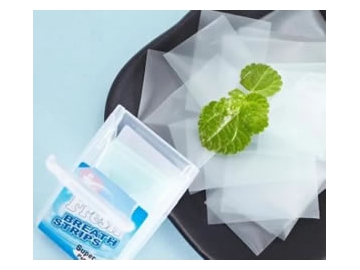

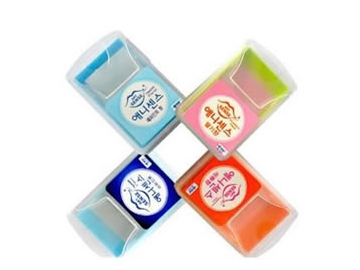

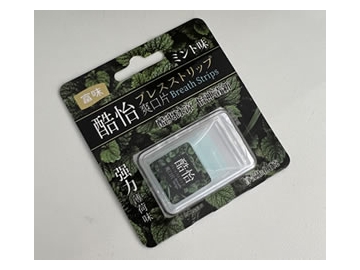

KZH-60 automatic cassette packaging machine is primarily used for packaging oral thin films, edible films or mouth melting strips into small cassettes. This oral thin film cassette packaging machine is designed in response to the market need for the development and improvement of edible oral films in food, pharmaceutical and health products industry sectors. This edible film packing machine is a great option for your projects of edible and oral film packaging, effectively filling the gap in the market. With its significant advantages in both practicality and economy, this automatic oral thin film cassette packaging machine can satisfy packaging needs for various products such as mouth freshener strips, mouth dissolving films, vitamin strips, collagen strips, and so on.

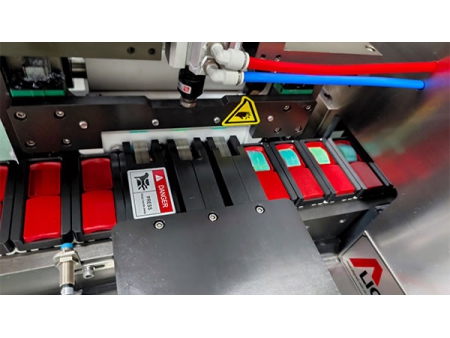

The oral thin film cassette packaging machine is featured by multiple functions of cutting and cartoning, and the parameters including speed, strips per pack and productivity can all be adjusted via PLC touch screen.
- Separated structure with modular design enables easy assembling, therefore making machine cleaning and transportation more conveniently.
- Mold changeover is simple and easy since the mold is designed separately from guiderail.
- Servo motor is used in traction mechanism to ensure the stable operation of the oral thin film cassette packaging machine, desired product size can be easily adjusted within a rated range.
- Thanks to the functions of automatic alarm and emergency stop, operator's safety is guaranteed when products or packaging materials are used up or damaged.
- All parts in contact with materials are made from 316 stainless steel in full compliance with the requirements of GMP standard.
| Model | KZH-60 |
| Conveyor belt length | 1200mm |
| Packing number | 6-24 pieces/pack |
| Cartoning speed | 60-120 packs/min |
| Total power | 220V 3.5kW |
| Dimensions | 2100*1480*1920mm |
| Weight | 750kg |
