30kW-2400kW Diesel Generator Sets Manufacturer

30kW-2400kW Diesel Generator Sets

Request a Quote

View All: http://db-dieselgenerators.com/1-6-yuchai-engine-series.html

Powered by Yuchai diesel engines

As a comprehensive manufacturer of diesel generator sets, we specialize in the design, supply, commissioning, and maintenance of units ranging from 30kVA to 3375kVA, powered by Yuchai Engines. These generators are distinguished by their compact design, substantial power reserve, high reliability, and excellent speed regulation capabilities, embodying advanced engineering to meet diverse operational demands.

Key Specs

Power Range: 30-2400kW

Fuel Type: Diesel

Frequency: 50 & 60HZ

Build Type: Silent Generator & Open Generator

Standards

The Yuchai engine series diesel generator sets comply with international standards such as ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.

Our Yuchai engine series diesel generator sets are available in a variety of power capacities.

50Hz Selection Table

Genset Model	Genset Power					Engine Model	Engine Power
	Prime			Standby			Prime	Standby
	kW		kVA	kW	kVA		kW	kW
DB-16GF	16	20		17.6	22	YC4V35-D20	23	25
DB-24GF	24	30		26.4	33	YC4V45Z-D20	30	33
DB-30GF	30	37.5		33	41.25	YC4V55Z-D20	38	42
DB-16GF	16	20		17.6	22	YC4V35-D20	23	25
DB-24GF	24	30		26.4	33	YC4V45Z-D20	30	33
DB-30GF	30	37.5		33	41.25	YC4V55Z-D20	38	42
DB-30GF	30	37.5		33	41.25	YC4D60-D21	40	44
DB-30GF	30	37.5		33	41.25	YC4D60-D25	40	44
DB-50GF	50	62.5		55	68.75	YC4D90Z-D21	60	66
DB-50GF	50	62.5		55	68.75	YC4D90Z-D25	60	66
DB-60GF	60	75		64	80	YC4A100Z-D20	70	73.5
DB-60GF	60	75		64	80	YC4A100Z-D25	70	77
DB-80GF	80	100		90	112.5	YC4A140L-D25	100	110
DB-100GF	100	125		110	137.5	YC4A180L-D20	120	132
DB-100GF	100	125		110	137.5	YC6B180L-D20	120	132
DB-120GF	120	150		130	162.5	YC6B205L-D20	138	152
DB-130GF	130	162.5		150	187.5	YC6A230L-D20	155	170.
DB-150GF	150	187.5		160	200	YC6A245L-D21	165	181
DB-200GF	200	250		220	275	YC6MK350L-D20	235	258.5
DB-250GF	250	312.5		280	350	YC6MK420L-D20	281	309
DB-300GF	300	375		320	400	YC6MJ500L-D21	334	367
DB-360GF	360	450		400	500	YC6MJ600-D30	401	441
DB-400GF	400	500		440	550	YC6K660-D30	441	485
DB-450GF	450	562.5		500	625	YC6TD780-D31	520	572
DB-500GF	500	625		550	687.5	YC6TD840-D31	561	616
DB-550GF	550	687.5		600	750	YC6TD900-D31	605	665
DB-600GF	600	750		660	825	YC6TD1000-D30	668	735
DB-650GF	650	812.5		700	875	YC6TD1100-D30	741	815
DB-730GF	730	912.5		800	1000	YC6TH1220-D31	815	897
DB-800GF	800	1000		900	1125	YC6TH1320-D31	880	968
DB-900GF	900	1125		990	1237.5	YC6C1520-D31	1016	1118
DB-1000GF	1000	1250		1100	1375	YC6C1660-D31	1110	1221
DB-1100GF	1100	1375		1200	1500	YC12VTD1830-D30	1220	1342
DB-1200GF	1200	1500		1320	1650	YC12VTD2000-D30	1345	1480
DB-1350GF	1350	1687.5		1500	1875	YC16VTD2270-D30	1520	1672
DB-1500GF	1500	1875		1650	2062.5	YC16VTD2510-D30	1680	1850
DB-1700GF	1700	2125		1800	2250	YC12VC2700-D31	1805	1985
DB-1800GF	1800	2250		2000	2500	YC12VC3000-D30	2005	2206
DB-2000GF	2000	2500		2200	2750	YC16VC3300-D31	2205	2426
DB-2200GF	2200	2750		2400	3000	YC16VC3600-D31	2405	2646
DB-2400GF	2400	3000		2600	3250	YC16VC4000-D31	2673	2940
DB-2500GF	2500	3125		2800	3500	YC16VC4200-D30	2808	3089
DB-2700GF	2700	3375		3000	3750	YC16VC4500-D30	3010	3311

60Hz Selection Table

Genset Model	Genset Power				Engine Model	Engine Power
	Prime		Standby			Prime	Standby
	KW	KVA	KW	KVA		KW	kW
DB-16GF	16	20	18	22	YC4V35-D21	23	25
DB-24GF	24	30	26	33	YC4V45Z-D21	30	33
DB-30GF	30	38	33	41	YC4V55Z-D21	38	42
DB-16GF	16	20	18	22	YC4V35-D21	23	25
DB-24GF	24	30	26	33	YC4V45Z-D21	30	33
DB-30GF	30	38	33	41	YC4V55Z-D21	38	42
DB-30GF	30	38	33	41	YC4D65-D20	44	48
DB-45GF	45	56	50	63	YC4D80Z-D20	55	60.5
DB-55GF	55	69	60	75	YC4D100Z-D20	66	72.6
DB-70GF	70	88	80	100	YC6B130Z-D20	88	97
DB-90GF	90	113	100	125	YC6B160Z-D20	107	118
DB-120GF	120	150	130	163	YC6B210L-D20	140	154
DB-150GF	150	188	160	200	YC6A245L-D20	165	181
DB-200GF	200	250	220	275	YC6MK360L-D20	240	26
DB-250GF	250	313	280	350	YC6MK420L-D21	281	309
DB-300GF	300	375	320	400	YC6MJ515L-D22	346	380
DB-400GF	400	500	440	550	YC6T660L-D21	441	485
DB-450GF	450	562.5	500	625	YC6TD780-D32	520	572
DB-500GF	500	625	550	687.5	YC6TD840-D32	561	616
DB-550GF	550	687.5	600	750	YC6TD940-D32	628	691
DB-600GF	600	750	660	825	YC6TD1020-D32	680	748
DB-650GF	650	812.5	710	887.5	YC6TH1070-D33	715	787
DB-730GF	730	912.5	800	1000	YC6TH1220-D33	815	897
DB-800GF	800	1000	900	1125	YC6TH1350-D33	900	990
DB-1100GF	1100	1375	1200	1500	YC12VTD1860-D32	1240	1364
DB-1200GF	1200	1500	1350	1687.5	YC12VTD2070-D32	1380	1520
DB-1500GF	1500	1875	1650	2062.5	YC16VTD2510-D32	1680	1850
DB-1600GF	1600	2000	1800	2250	YC16VTD2700-D32	1805	1985

For more details, please contact us!

Details

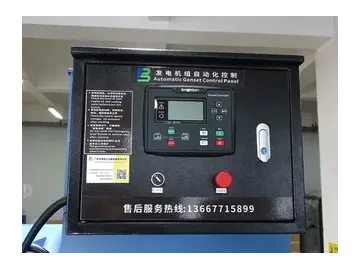

Intelligent Protection and Control System
Our generator sets are equipped with the SmartGen/Deep Sea control system, which incorporates a multi-function LCD module. This module includes all standard features and configurations of a traditional manual control panel. Functionalities include parallel operation capability, and auto/stop/manual operations, along with start and shutdown delays. The system is also designed to provide comprehensive protection functions such as overspeed, high water temperature, low oil pressure, underfrequency, phase loss, overload, start failure, output voltage failure, and charging failure, all accompanied by respective alarms and automatic shutdown. An emergency stop button is included to ensure immediate response in critical situations.

Efficient Oil Cooling System
Incorporates a full-flow oil cooler that boosts heat dissipation efficiency by 30%, maintaining oil at optimal temperatures for lubrication and minimizing friction losses.

Precision Fuel Injection
Utilizes an advanced, mature electronic single-cylinder pump to ensure precise control over fuel injection and optimal air intake, resulting in full combustion, lower fuel consumption, and reduced emissions across varying load conditions.

Innovative Piston Design
Features pistons with internal coolant oil channels, which significantly lower piston temperatures, thereby extending their lifespan.

Robust Chassis Construction
The chassis is crafted from thickened steel plate, ensuring it remains heavy and non-deformable. This robust construction provides excellent shock absorption and is treated with a corrosion-resistant spray paint for enhanced durability.

Features

Advanced digital control system for superior intelligence and automation.
Designed for low vibration, minimal noise, and reduced emissions.
Durable construction with high-strength cylinder block, forged alloy steel crankshaft, alloy steel connecting rod, and pistons with internal coolant oil channels. Features a high and low temperature water cooling system to enhance engine longevity, all within a compact and lightweight structure.
Exceptional fuel and oil efficiency surpassing similar domestic models.

Cases

500kW silent containerized Yuchai engine series diesel generator sets exported to Iraq
Silent Yuchai engine series diesel generator sets exported to South America
