Intelligent 2-in-1 Rigid Box Making Machine(60-70 pcs/min), LY-HB3000CZ
A rigid box production line for premium lid-and-base packaging boxes.
- Working mode: Single-station or double-station box making
- Single-station production speed: 60–70 pcs/min
- Double-station production speed: 30–35 pairs/min
- Paper thickness: 80–300 g/m²
- Pile height: 800 mm
- Cardboard thickness: 1–3 mm
Production Process
The LY-HB3000CZ intelligent 2-in-1 rigid box making machine is designed for high-volume production of lid-and-base boxes and drawer boxes. Developed by Lishunyuan after two years of refinement, this machine is backed by more than 10 years of experience in high-end packaging machinery design and manufacturing.
The machine automatically completes wrap paper feeding, cardboard feeding, corner pasting, cardboard gluing, box lifting, side wrapping, edge turning-in, corner folding, and forming. It is suitable for producing rigid boxes for smartphones, cosmetics, jewelry, pastries (e.g. mooncakes), tea, and other premium packaging applications.
The feeding, gluing, and conveying systems are servo-controlled for stable and coordinated operation. The machine supports single-station and double-station intelligent wrapping and forming. In double-station mode, it can produce box lids and bases simultaneously, reaching a production speed of up to 25 pairs/min; while in single-station mode, it can produce up to 70 boxes/min. Format changeover takes about 30 minutes. Vision-guided robotic arms with a multi-camera system deliver positioning accuracy of ±0.05 mm. The integrated inline air-bubble pressing module eliminates the need for a separate bubble press, helping reduce equipment footprint.
Technical Parameters| Specification | Single-station Box Making | Double-station Box Making | |
| Paper Size | W | 60-420 mm | 60-820 mm |
| L | 120-700 mm | 120-700 mm | |
| Paper Thickness | 80-300 g/㎡ | 80-300 g/㎡ | |
| Pile Height | 800 mm | 800 mm | |
| Cardboard Thickness | 1-3mm | 1-3mm | |
| Positioning Accuracy | ±0.05 mm | ±0.05 mm | |
| Finished Box Size | L | 55-450 mm | 55-450 mm |
| W | 55-300 mm | 55-300 mm | |
| H | 12-160 mm | 12-160 mm | |
| Manufacturing Speed | 60-70 pcs/min | 30-35 pairs/min | |
| Glue Container Volume | 50 kg | 50kg | |
| Air Pressure | 0.5-0.7 MPa (1.0-1.2m3/min) | 0.5-0.7 MPa (1.0-1.2m3/min) | |
| Power Supply | 380V/50Hz | 380V/50Hz | |
| Max. Power | 37 kW | 37 kW | |
| Machine Weight | 7200 kg | 7200 kg | |
| Overall Size (L*W*H) | 8100 mm*6500 mm*3200 mm | 8100 mm*6500 mm*3200 mm | |

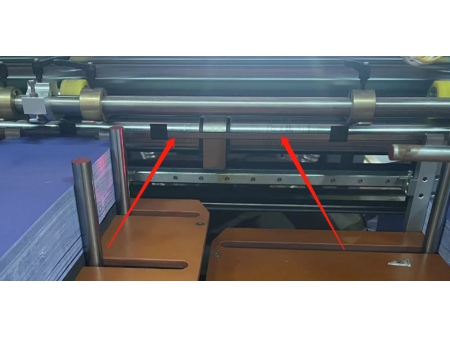

- Paper Feeder
- The servo-controlled feeder independently controls paper feeding and roller movement.
- The feeder prevents length deviation between consecutive sheets.
- Full-servo rear-suction feeding helps prevent double-sheet feeding and improves feeding stability.
- The integrated glue guide channel is easy to clean and maintain.
- Visual Positioning
- Features Yamaha robotic arms for precise positioning.
- The 10-megapixel visual positioning system delivers positioning accuracy of up to ±0.05 mm.
- Four cameras and dual robotic arms work with XY-axis screw-drive modules for accurate positioning.

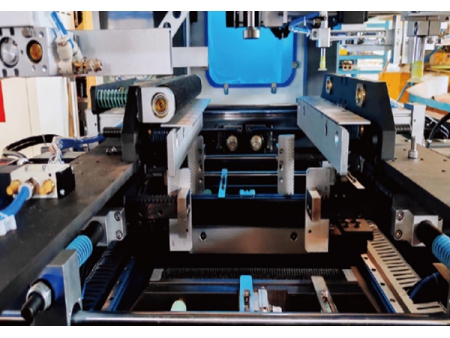

- Dual-Station Box Forming
- Automatic servo setup allows the operator to input product dimensions, after which the machine adjusts automatically.
- The dual-station intelligent wrapping and forming unit reduces setup time and increases output.
- The collision detection alarm system includes parameter memory and recall, with up to 999 sets of data that can be saved and retrieved to shorten adjustment time.
- The side-clamping box transfer system helps prevent scratches on the paper surface.
- Electric Control System
- Servo motor control supports stable machine operation.
- Quick format changeover and simplified machine adjustment reduce setup time.
LISHUNYUAN provides all kinds of components in the rigid box production line. The products include visual positioning machines, feeding and gluing machines, notching machines, and etc.
