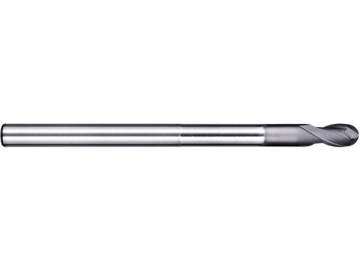

G-B2 Solid Carbide End Mill for Graphite Machining - Ball Nose - 2 Flutes
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Ball Radius (R) | Length of Cut (Lc) | Overall Length (L) | Shank Diameter (d) | Type |
G-B2-00502 | 0.5 | 0.25 | 2 | 50 | 4 | A |
G-B2-00602 | 0.6 | 0.3 | 2 | 50 | 4 | A |
G-B2-00803 | 0.8 | 0.4 | 3 | 50 | 4 | A |
G-B2-01003 | 1 | 0.5 | 3 | 60 | 4 | A |
G-B2-01505 | 1.5 | 0.75 | 5 | 60 | 4 | A |
G-B2-02006 | 2 | 1 | 6 | 60 | 4 | A |
G-B2-03008 | 3 | 1.5 | 8 | 60 | 4 | A |
G-B2-04016 | 4 | 2 | 16 | 60 | 4 | B |
G-B2-06016 | 6 | 3 | 16 | 60 | 6 | B |
G-B2-08020 | 8 | 4 | 20 | 80 | 8 | B |
G-B2-10025 | 10 | 5 | 25 | 100 | 10 | B |
G-B2-12025 | 12 | 6 | 25 | 100 | 12 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
