  • S66286
  • 1.4980
Nickel AlloyInconel A-286
Mechanical Properties
Tensile Strength
610 (σb/MPa)
Yield Strength
270 (σp0.2/MPa)
Elongation
30 (σ5/%)
Product Forms and Standards
Bar
ASTM B638
Forging
ASTM B638
Sheet/Strip
-
Wire
-
Pipe
-

The Incoloy A-286 nickel alloy is an iron-nickel-chromium alloy with additions of molybdenum, titanium, aluminum, vanadium and trace amount of boron that stiffen the alloy matrix, thus providing high mechanical strength. At the temperature under 650℃, the alloy A-286 boasts extremely high yield strength and creep-rupture strength as well as great fabrication characteristics and weldability.

These superior prosperities of this high temperature alloy make it useful for high temperature bearing components of aircraft engine, such as turbine disc, compressor disc, rotor blade and fastener.

Stock and Supply of Various Incoloy A-286 Nickel Alloy

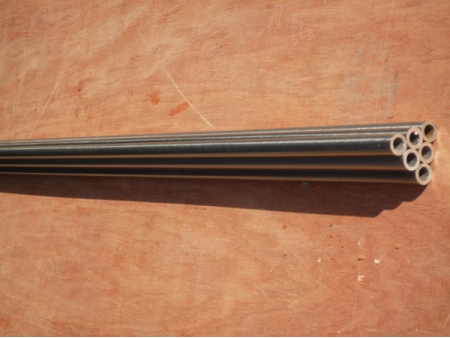

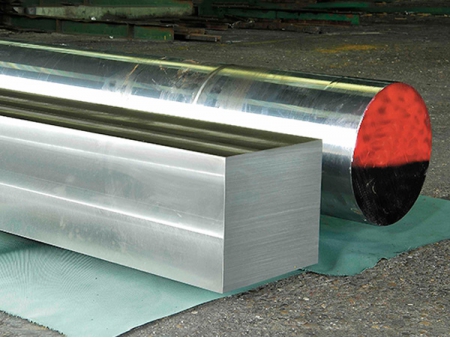

Common forms include tube, wire, bar, plate, etc.

  • Nickel Alloy Wire
  • Nickel Alloy Bar
  • Nickel Alloy Pipe & Tubing
Chemical Compositions
Ni 24.00%- 27.00% Cr 13.50%- 16.00% Mo 1.00%- 1.50% B 0.001%- 0.01% P 0.03% Max. Al 0.40% Max. Ti 1.75%- 2.35%
C 0.08% Max. Mn 2.00% Max. Si 1.00% Max. V 0.10%- 0.50% S 0.02% Max. Fe Bal.
