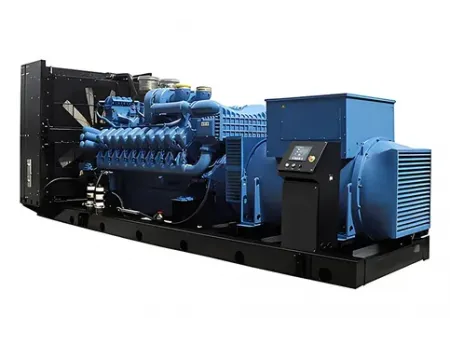

1400kW-2500kW Diesel Generator Sets
Powered by MTU diesel engines
As a trusted brand in the diesel generator industry, DINGBO specializes in the integration of design, supply, commissioning, and maintenance. Our MTU engine series diesel generator sets range from 1750kVA to 3125kVA, known for their reliability and economical operation. These gensets feature extended maintenance intervals, low emissions, and high power output, suitable for environments up to 50 degrees Celsius. Ideal for a wide range of applications, our MTU engine series ensures sustained performance and reduced operational costs.
Key Specs
- Power Range: 1400-2500kW
- Fuel Type: Diesel
- Frequency: 50 & 60HZ
- Build Type: Silent Generator & Open Generator
Standards
The MTU engine series diesel generator sets comply with international standards such as ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.
50Hz Selection Table
| Genset Model | Diesel Generator Set | MTU Engine Model | Engine Power | ||
| Output power | Prime | Standby | |||
| kW | kVA | kW | kW | ||
| 1400 | 1750 | 12V4000G23 | 1420 | 1575 | |
| 1500 | 1875 | 12V4000G63 | 1570 | 1750 | |
| 1800 | 2250 | 16V4000G23 | 1798 | 1968 | |
| 1900 | 2375 | 16V4000G63 | 1965 | 2185 | |
| 2200 | 2750 | 20V4000G23 | 2200 | 2420 | |
| 2400 | 3000 | 20V4000G63 | 2420 | 2670 | |
| 2500 | 3125 | 20V4000G63L | 2590 | 2850 | |
For more details, please contact us!

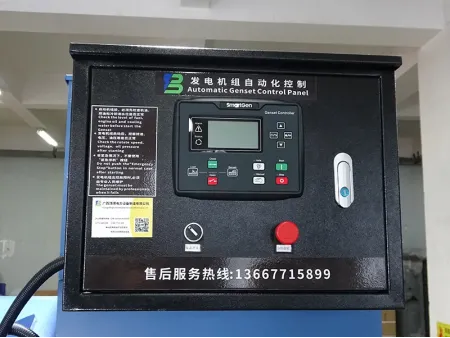

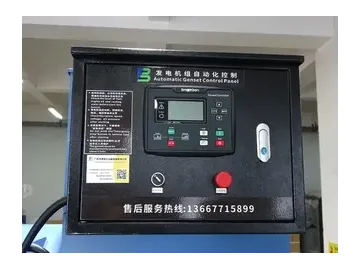

- Intelligent Protection and Control System Our generator sets come equipped with advanced SmartGen/Deep Sea control systems. These systems feature a multifunctional LCD module that replicates the functionalities of a traditional manual control panel. Capabilities include parallel operation, as well as automatic, manual, and stop operations, enhanced with start and shutdown delay options. The system ensures comprehensive safety through protection functions for overspeed, high water temperature, low oil pressure, underfrequency, phase loss, overload, start failure, output voltage failure, and charging failure. Each issue triggers an alarm and automatic shutdown. Additionally, an emergency stop button is provided for immediate response in urgent situations.

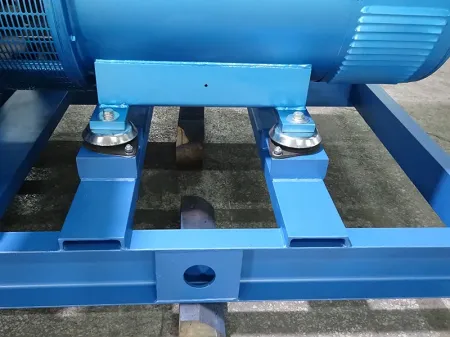

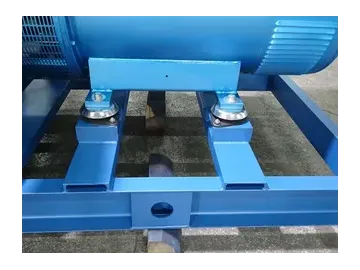

- Chassis Features a high-strength, bending-resistant chassis made from thickened iron plate, offering heavy-duty durability and excellent shock absorption. The chassis is also coated with corrosion-resistant spray paint to ensure long-lasting performance.
- High-Voltage Common Rail EFI Technology Utilizes high-pressure common rail technology for optimal fuel atomization. This system supports one combustion cycle with three injections, ensuring complete combustion, improved emissions, and a lower failure rate.
- Superior Transient Response and High Reliability Provides exceptional emergency power capabilities, achieving load capacity in 6 seconds and full load in 15 seconds, coupled with an extremely low failure rate and prolonged maintenance intervals.
- Economical and Environmentally Friendly Features low fuel consumption at only 188g/kw.h, significantly reducing operational costs while promoting more efficient combustion and improved emissions. Includes a closed crankcase design to prevent environmental pollution.
- Exceptional Availability
Engineered for continuous, round-the-clock operation with minimal downtime, ensuring maximum efficiency. - Extended Service Life
These generators have long service intervals and simplified maintenance procedures, which enhance operational reliability and reduce maintenance costs.
- MTU engine series diesel generator sets in a factory
- MTU engine series diesel generator sets in data center
