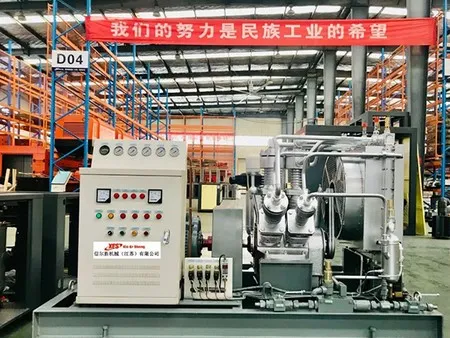

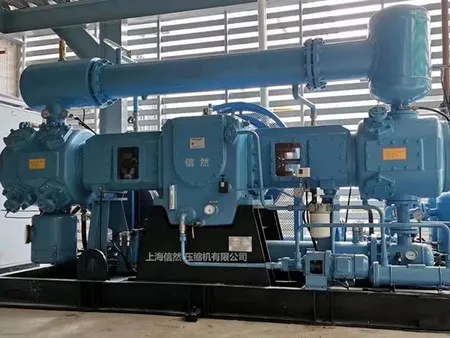

PET Bottle Blowing Compressor
Xinran PET air compressor is a crucial component in blow molding machine setups, designed to convert mechanical energy from a prime mover (typically an electric motor) into pneumatic pressure energy. It specifically generates the compressed air required for operating bottle blowing machines. After extensive operational testing across various conditions, PET air compressor has proven to offer higher efficiency, stronger reliability with capability of continuous 24-hour operation without shutdown, longer lifespan, lower noise levels, minimal vibration, lower discharge temperatures, and reduced oil consumption.
- Free air delivery
0.6-6m³/min
- Power
7-6×11kW
- Discharge pressure
3.0-8.0MPa
Xinran bottle blowing compressors have been widely adopted by numerous beverage manufacturers due to their reliability and efficiency. Notable clients include Master Kong, Wahaha, Nongfu Spring, Uni-President, Dali Group, Coca-Cola, PepsiCo, Huiyuan Juice, Yeshu, Red Bull, Minute Maid, 7UP, Watsons, Wanglaoji, Lulu, Nestlé, Suntory, Wellcome, Bright Dairy, Yili, and Mengniu.
Technical Data| Model | Free Air Delivery (m³/min) | Discharge pressure (Mpa) | Power (kW) | Speed (rpm) | Dimensions (L×W×H) (mm) | Weight (kg) |
| | 0.7 | 3 | 7.5 | 680 | 1240×630×780 | 310 |
| | 1 | 3 | 11 | 600 | 1470×780×885 | 430 |
| | 1.2 | 3 | 15 | 760 | 1470×780×885 | 450 |
| | 1.5 | 3 | 18.5 | 790 | 1530×765×1105 | 520 |
| | 1 | 4 | 11 | 790 | 1400×840×840 | 470 |
| | 0.65 | 3.5 | 9 | 800 | 1800×630×1140 | 420 |
| | 0.7 | 3 | 7.5 | 680 | 1800×630×1140 | 410 |
| | 1 | 3 | 11 | 600 | 2005×795×1260 | 530 |
| | 1.1 | 3.5 | 11 | 605 | 2005×795×1260 | 550 |
| | 1.2 | 3 | 15 | 760 | 2005×795×1260 | 550 |
| | 1.3 | 3.5 | 18.5 | 680 | 1140×735×1450 | 520 |
| | 1.5 | 3 | 18.5 | 790 | 1140×735×1450 | 520 |
| | 2 | 3 | 2×11 | 600 | 2050×1570×980 | 1050 |
| | 2.2 | 3.5 | 2×15 | 605 | 1880×1180×1440 | 1080 |
| | 2.4 | 3 | 2×15 | 760 | 2050×1570×980 | 1080 |
| | 2.6 | 3.5 | 2×18.5 | 700 | 1880×1180×1440 | 1150 |
| | 3 | 3 | 2×18.5 | 790 | 1880×1180×1440 | 1150 |
| | 3.6 | 3 | 3×15 | 700 | 2350×1570×1880 | 1580 |
| | 5 | 3.5 | 4×18.5 | 680 | 2520×1920×1540 | 2400 |
| | 6 | 3 | 4×18.5 | 790 | 2520×1920×1540 | 2400 |
| | 0.6 | 6 | 11 | 555 | 1420×830×840 | 320 |
| | 0.65 | 3.5 | 7.5 | 800 | 1250×760×800 | 475 |
| | 0.9 | 7 | 15 | 735 | 1420×830×840 | 467 |
| | 0.93 | 10.5 | 15 | 900 | 1100×815×1405 | 470 |
| | 0.94 | 9.8 | 15 | 900 | 1100×815×1405 | 470 |
| | 1 | 5.5 | 15 | 790 | 1420×830×840 | 470 |
| | 1 | 8 | 15 | 800 | 1420×830×840 | 467 |
| | 1.1 | 3.5 | 11 | 900 | 1420×830×840 | 475 |
| | 1 | 4 | 11 | 790 | 1420×830×840 | 475 |
| | 1.7 | 4 | 2 | 735 | 1140×710×1500 | 550 |
| | 1.9 | 4 | 25 | 860 | 1140×735×1650 | 550 |
| | 1.8 | 7 | 2×15 | 735 | 1880×1430×1000 | 1480 |
| | 2 | 5.5 | 2×15 | 790 | 1880×1430×1000 | 1480 |
| | 2 | 8 | 2×15 | 800 | 1950×1180×1440 | 1480 |
| | 2.2 | 3.5 | 2×11 | 800 | 1880×1430×1000 | 1500 |
| | 4 | 4 | 4×11 | 790 | 2020×1570×2000 | 2400 |
| | 6 | 4 | 6×11 | 790 | 3495×1565×2000 | 3600 |
