High Speed Oral Dissolving Film Packaging Machine
Request a Quote
Technical Specifications
| Model | KFM260L-DZ |
| Cutting speed | 380-400 strips/min |
| Packaging film width | 480–520 mm |
| Unwinding diameter | ≤⌀300mm |
| Rewinding diameter | ≤⌀240mm |
| Total installed power | 18kW |
| Machine dimensions (L×W×H) | 7840 mm×1480mm×2220 mm |
| Machine weight | 6000kg |
| Power supply | 380 V, 3-phase, 50 Hz |
Performance & Features
- Its precision servo control allows for meticulous adjustments to the heat sealing speed and temperature, ensuring the seal's consistency and reliability across all operations.

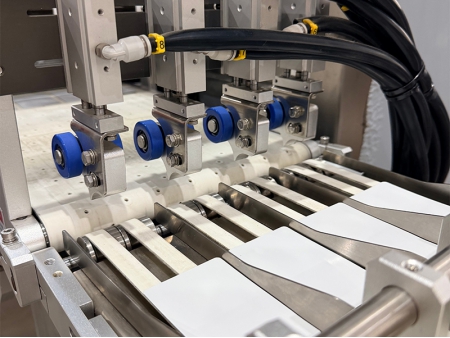

- Equipped with a finished product conveyance system that optimizes the transfer process with a vacuum adsorption mechanism and a pneumatic scrap ejection device, thereby ensuring only high-quality finished products are delivered.
- Its design allows for a significant boost in production efficiency, capable of producing at rates six times that of older models, thanks to the advanced reciprocating heat sealing that speeds up the process.
- Accurate layer alignment during the packaging of oral dissolving films is crucial, and the machine guarantees that the printed top and bottom layers are perfectly synchronized, ensuring high-quality packaging every time.
- The automatic alignment station improves the alignment of packaging materials and film, maintaining precise heat sealing positions which heighten the acceptance rate of finished products.
- A vision inspection system is integral to the packaging machine, identifying and eliminating any defects in the film material such as missing pieces, notches, or damage, thereby ensuring the highest standards of product quality.
