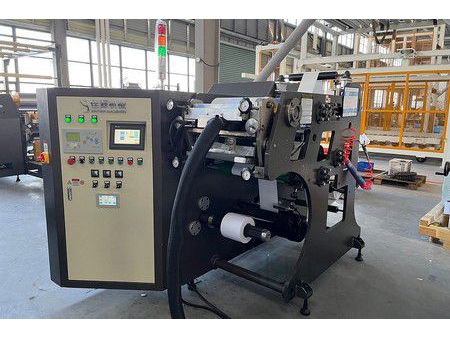

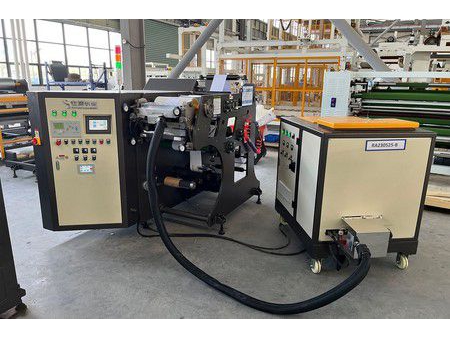

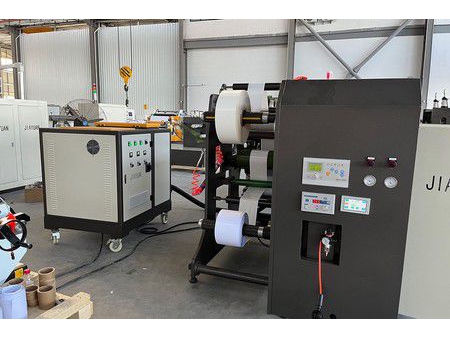

Self-Adhesive Label Coating Machine, JYT320

Self-Adhesive Label Coating Machine, JYT320
Self-Adhesive Label Coating Machine, JYT320
Self-Adhesive Label Coating Machine, JYT320
Self-Adhesive Label Coating Machine, JYT320
Self-Adhesive Label Coating Machine, JYT320
Self-Adhesive Label Coating Machine, JYT320
Request a Quote

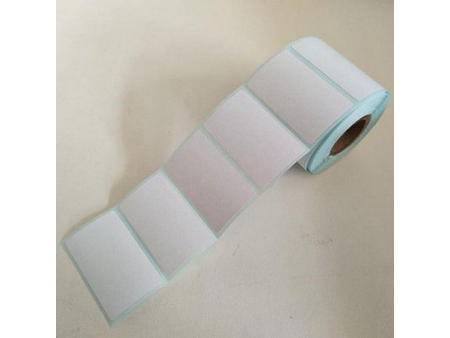

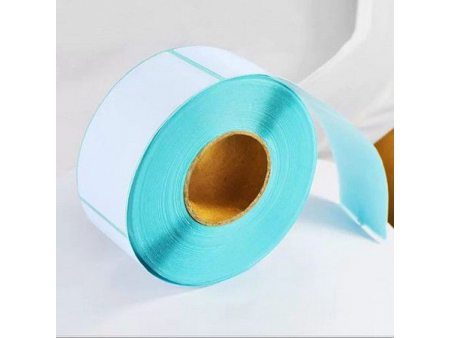

JYT320 self-adhesive label coater is suitable for coating processes on labels, tapes, zippers, etc. Ideal for research, small batch production, testing various types of adhesives, or developing new products due to its low cost and compact size.

Specifications
Model JYT320
Roller Width 370mm
Max. Coating Width 320mm
Max. Diameter of Substrate 400mm
Paper Core Diameter 76mm
Unwind Device 2 sets
Rewind Device 1 set
Coating Weight 7g/m²-120g/m²
Coating Speed 50-150m/min
Max. Power 9.5kW
Length 2200mm
Width 980mm
Height 1300mm
Power Supply 380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.
