Hot melt coating machine suitable for making toe puffs and counters

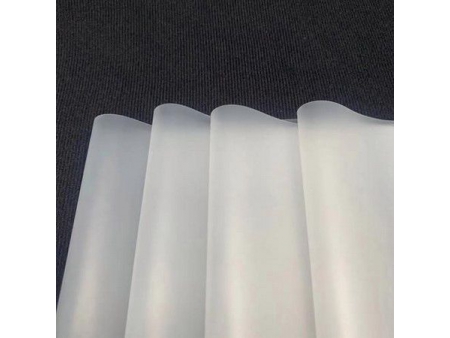

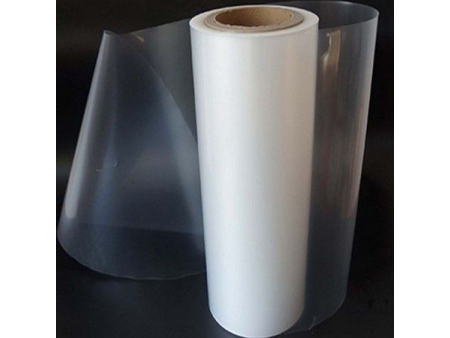

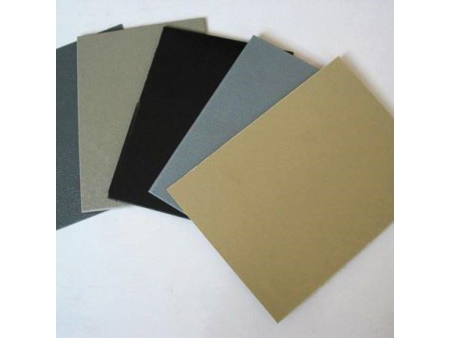

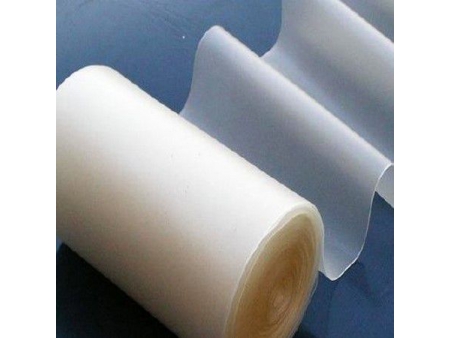

Our JSP hot melt adhesive film extrusion coater, designed and manufactured based on advanced technologies from worldwide, primarily features major parts made from nitrided 38CRMOALA alloy steel for wear and corrosion resistance. Screw with optimized aspect ratio ensures excellent plastification performance, producing highly uniform adhesive film. Ideal for the manufacturing of hot melt adhesive film, hot melt adhesive toe puffs, fine fabric, etc.

Specifications
Model JSP-1000 JSP-1500
Coating Width 400-1600mm
Coating Weight 20-2000g/m²
Film Width 1000mm 1500mm
Film Thickness 0.3-2.0mm 0.3-2.0mm
Screw Diameter 115mm 120mm
Main Motor Power 55kw 75kw
Max. Yield 400kg/h 500kg/h
Total Power 80kW 100kW
Dimensions 12×12×2.4m 13×12×2.4m
Power 38-60kW
Power Supply 380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • Major parts including screw, screw barrel, applicator head, etc. are made from nitrided 38CRMOALA alloy steel, ensuring excellent wear and corrosion resistance.
  • Optimized screw aspect ratio ensures adhesive layer uniformity.
  • Applicator head employs a motorized up-and-down device for filter web replacement, ensuring convenience and efficiency. (Automatic feeding system is available upon customer request.)
