Request a Quote
Paper Bag Machinery Manufacturer
Request a quote
Paper Bag Making Process

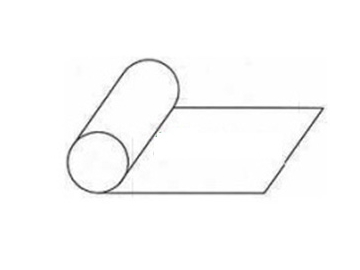

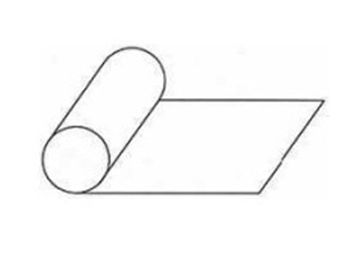

  • Material loading
  • Inline Printing

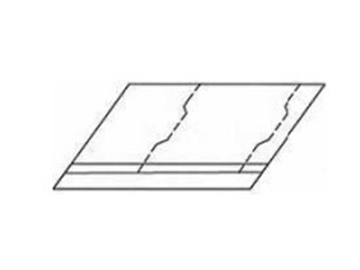

  • Side glue

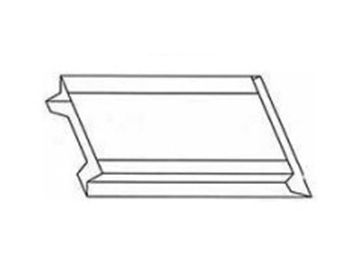

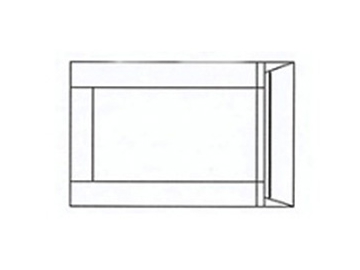

  • Forming
  • Interrupt

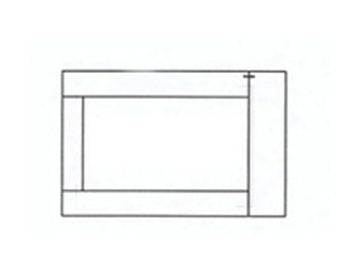

  • Bottom glue

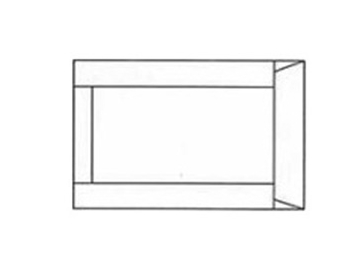

  • Bottom folding
  • Finished product
Specifications
  • Model: XKJD400
  • Paper bag length: 120-480mm(L)
  • Paper bag width: 70-260mm(W)
  • Paper thickness: 40-80g/㎡
  • Machine speed: 60-400pcs/min
  • Paper roll width: 200-740mm
  • Side gusset depth: 20-100mm
  • Machine power: 7.5kW
  • Machine weight: 1850kg
  • Machine size: 4640x1470x1700mm
Features

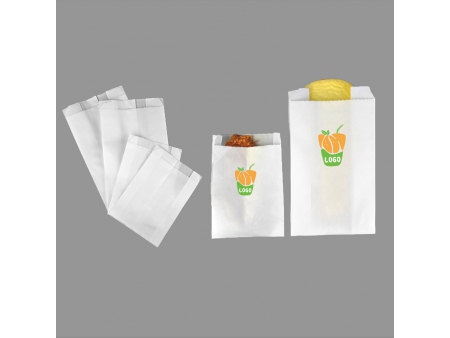

  • The paper bag machine is specially designed for making pointed bottom paper bags with/ printed patterns. The paper bags are mostly used for packing food such as bread, pastries, treats.
  • Paper bags with various specifications can be made by the bag making machine.
  • Featuring high production efficiency, this paper bag making machine is an ideal choice for bag manufacturers.
  • It’s integrated with many functions including hydraulically controlled roll loading, unwinding, web guiding system, tension control, inline printing, side gluing, photoelectric sensor.
  • The paper bag making machine features a PLC control system with HMI touch screen for precise control, and a servo system for the control of paper bag length.
  • The machine comes with constant tension control for unwinding, servo motor, variable frequency drive, inverter motor, etc.
  • The paper bag machine will stop automatically when no material is fed to the machine.
  • Designed with an enclosed automatic gluing and forming system;
  • Side mounted work table makes it easy to operate.
Details
    1. 2 Color inline printing

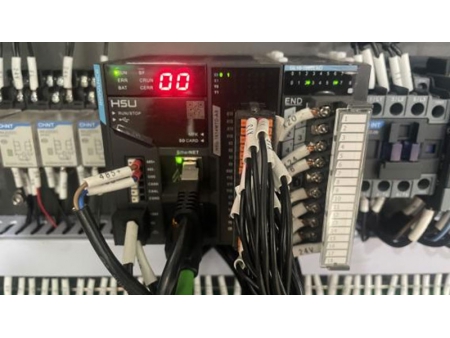

    1. PLC-based motion controller

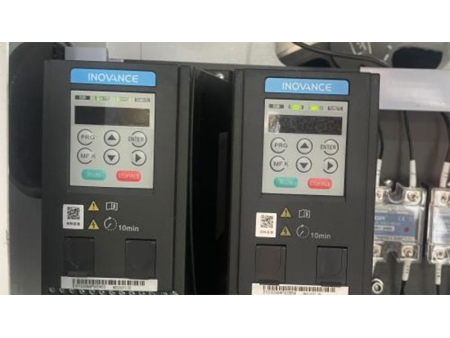

    1. Inverter

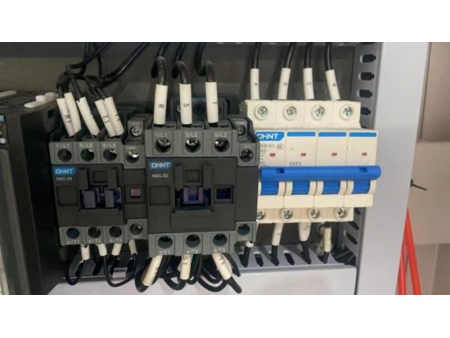

    1. Low-voltage electrical products
    1. Web guiding system

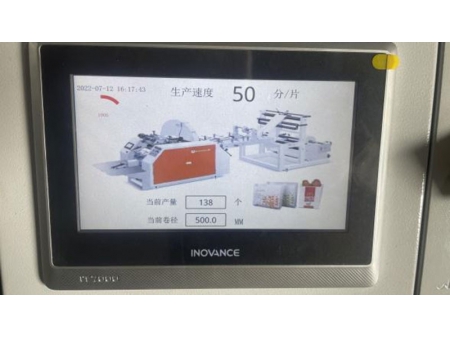

    1. HMI touchscreen

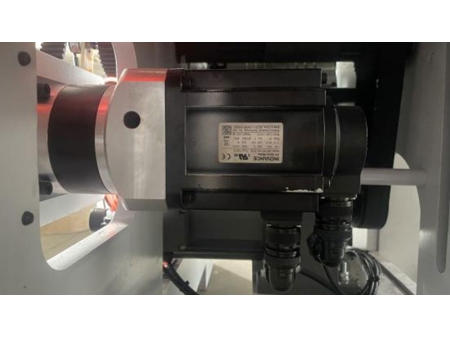

    1. Servo motor
  • Bag counting unit
