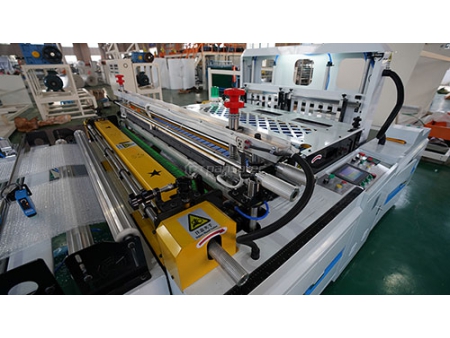

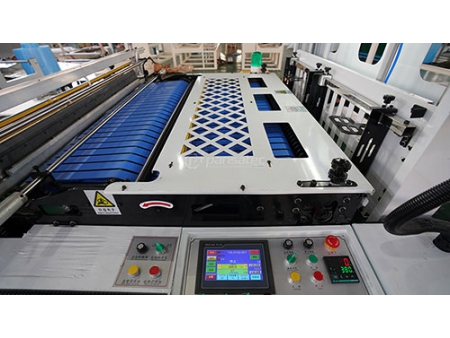

Air Bubble Bag Making Machine, 2-side Sealing

Air Bubble Bag Making Machine, 2-side Sealing
Air Bubble Bag Making Machine, 2-side Sealing
Air Bubble Bag Making Machine, 2-side Sealing
Air Bubble Bag Making Machine, 2-side Sealing
Air Bubble Bag Making Machine, 2-side Sealing
Air Bubble Bag Making Machine, 2-side Sealing
Request a Quote
Features
  • Adopting high-stability electric control and transmission system, ensuring smooth operation;
  • Output up to 220 bags per minute;
  • Advanced mechanical design saves your maintenance cost;
  • The air bubble bag machine can be custom-manufactured, accommodating your individual demands of bubble pouch production;
  • Easy to operate, user can operate the equipment with only one-hour training;
Details
Specifications

Model: PTZD-S2-600
Bag depth (with flap) (mm): 100-550
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 4.5
Dimension (L×W×H) (m): 5.00×1.20×1.5
Weight (kg): 1000

Model: PTZD-S2-800
Bag depth (with flap) (mm): 100-750
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 6
Dimension (L×W×H) (m): 5.50×1.40×1.75
Weight (kg): 1100

Model: PTZD-S2-1000
Bag depth (with flap) (mm): 100-950
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 7
Dimension (L×W×H) (m): 6.00×1.60×2.00
Weight (kg): 1200

Model: PTZD-S2-1200
Bag depth (with flap) (mm): 100-1150
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 9
Dimension (L×W×H) (m): 6.50×1.80×2.20
Weight (kg): 1300

Model PTZD-S2-600 PTZD-S2-800 PTZD-S2-1000 PTZD-S2-1200
Bag depth (with flap) (mm) 100-550 100-750 100-950 100-1150
Bag width (mm) 60-2000 60-2000 60-2000 60-2000
Output (bags/min) 20-220 20-220 20-220 20-220
Power (kW) 4.5 6 7 9
Dimension (L×W×H) (m) 5.00×1.20×1.5 5.50×1.40×1.75 6.00×1.60×2.00 6.50×1.80×2.20
Weight (kg) 1000 1100 1200 1300
