This bag making machine is designed for the automatic production of paper shopping bags with twisted handles, which is an ideal choice for bag making operations looking to minimize operating costs without sacrificing quality.

Parameters
Model
ZD-F200Q
ZD-F260Q
ZD-F350Q
ZD-F450QX
ZD-F450Q
ZD-F550Q
Roll paper width 280-650 mm 360-910 mm 420-1090 mm 670-1370 mm 650-1330 mm 670-1670 mm
Max. diameter of paper roll φ1500 mm φ1500 mm φ1500 mm φ1500 mm φ1500 mm φ1500 mm
Roll core diameter φ76 mm φ76 mm φ76 mm φ76 mm φ76 mm φ76 mm
Paper gram 50/65-150g/㎡ 50/65-150g/㎡ 60/80-150g/㎡ 70/80-150g/㎡ 80/90-150g/㎡ 80/90-150g/㎡
Paper bag width 80/110-200 mm 100/130-260 mm 130/180-350 mm 230-450 mm 230-450 mm 240-540 mm
Cut off length 190-(370mm with handle height) 260-(530mm with handle height) 260-(530mm with handle height) 280-(630mm with handle height) 380-(780mm with handle height) 380-(770mm with handle height)
Gusset width 50-110mm 65-180mm 65-180mm 80-220mm 90-200mm 80-280mm
Handle height 70-100mm 70-100mm 90-120mm 90-120mm 90-120mm 90-120mm
Handle rope diameter φ2.5-5 mm φ3-5 mm φ3-5.5 mm φ3-6 mm φ3-6 mm φ4-6 mm
Handle patch length 95mm 114mm 152mm 190mm 190mm 190/202 mm
Handle patch width 42.5-50 mm 42.5-50 mm 42.5-50 mm 42.5-50 mm 42.5-50 mm 42.5-50 mm
Handle hole distance 47.5mm 57mm 76mm 95mm 95mm 95/101 mm
Roll paper diameter (patch) dia φ1200 mm φ1200 mm φ1200 mm φ1200 mm φ1200 mm φ1200 mm
Handle patch width 85-100 mm 85-100 mm 85-100 mm 85-100 mm 85-100 mm 85-100 mm
Paper gram of handle patch 80-150 g/㎡ 80-150 g/㎡ 80-150 g/㎡ 80-150 g/㎡ 80-150 g/㎡ 80-150 g/㎡
Max. production speed 100-150 bags/min 100-150 bags/min 100-150 bags/min 100-140 bags/min 90-130 bags/min 80-130 bags/min
Total power 30 KW 30 KW 30 KW 30 KW 30 KW 30 KW
Machine weight 15500 KG 17500 KG 18500 KG 19500 KG 20500 KG 21500 KG
Overall dimensions ( L*W*H ) 12500*5500*2500 mm 13500*5600*2500 mm 13500*5700*2500 mm 14500*5800*2500 mm 15000*6000*2500 mm 15500*6200*2500 mm

The handles making part forms the cord and paper roll to handles, which are delivered to handle pasting section to perforate. The plain or printed paper and glue are fed to main machine for side gluing, tube forming, cut-off, bottom creasing, bottom gluing, bag forming and bag collection. The Mitsubishi electrical control system, servo motor and drive ensure its high precision and stability, simple maintenance and high efficiency.

    1. FEEDING UNIT

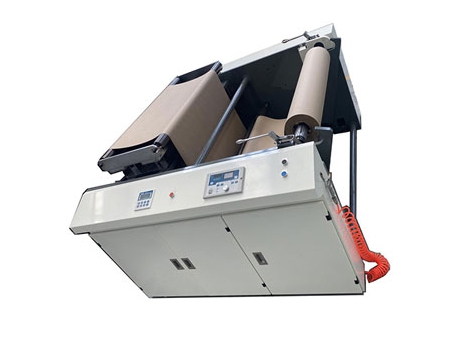

      The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.

    1. HANDLE MAKING UNIT

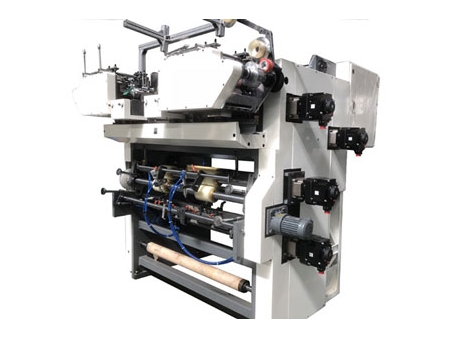

      It pastes twisted paper ropes and paper together to create a handle.

    1. HANDLE PASTING UNIT

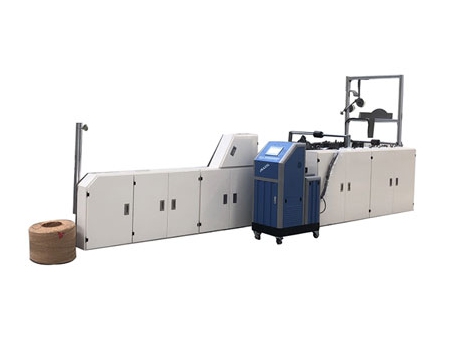

      The handle pasting machine can automatic pasting the twisted handle into the required position of bag body with the use of glue and then presses it firmly on the bag body before pre-creasing.

    1. BAG FORMING UNIT

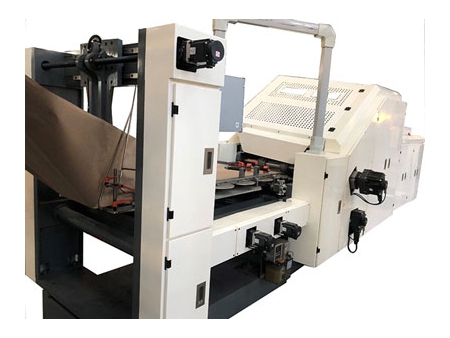

      Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tube will be sent to the drum to open the four corners, then bottom gluing, sealing and form the square shape consequently.

    1. BAG COLLECTING UNIT

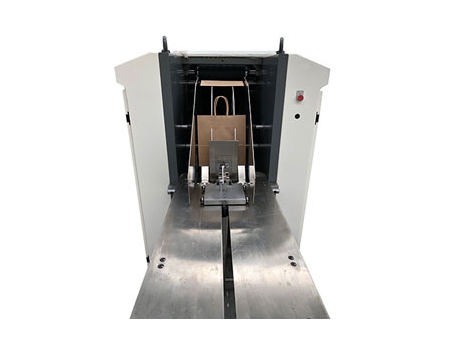

      Compress the bags and outlet the bags. The number of paper bags can be processed and presented by the automatic collection and counting system.

Optional inline print press can be added to achieve printing function.
