Automatic Bottom Seal Loop Handle Bag Making Machine

Request a Quote

View All: http://plastic-bagmachines.com/1-4-3-automatic-bottom-seal-loop-handle-bag-making-machine.html

Video

This automatic bottom seal loop handle bag making machine is designed to make soft loop handle bags with side gussets, allowing for an increased load capacity.

A PLC from Taiwan controls the bag making machine, operating with a Delta inverter and a servo motor. This results in the long service life of the machine.

Technical Parameters

Product width	250-550 mm
Product length	350-580 mm
Max. sealing width	600 mm
Max. cutting length	600 mm
Max. coil diameter	800 mm
Bag thickness	0.05-0.2 mm
Bag making speed	45-60 pcs/min
Power supply	A/C 380V 50Hz
Dimension	450036001700
Weight	2600kg
Handle length	330-370 mm (default 350 mm)
Handle width	25-50 mm (default 30 mm)

Applications

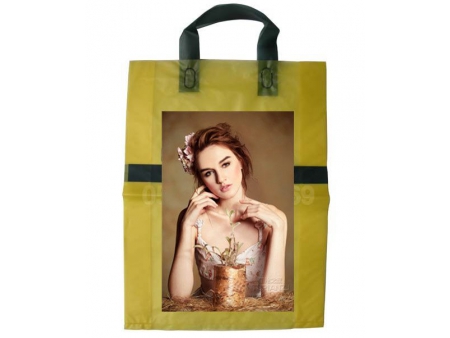

This automatic bag making machine is designed for the production of soft handle loop bags.

Details

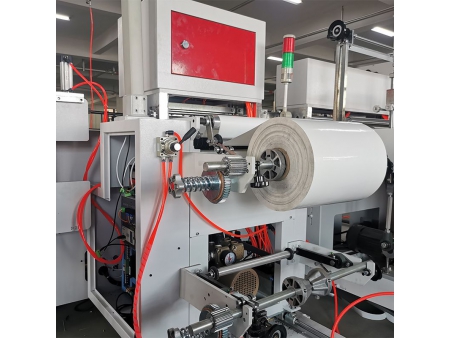

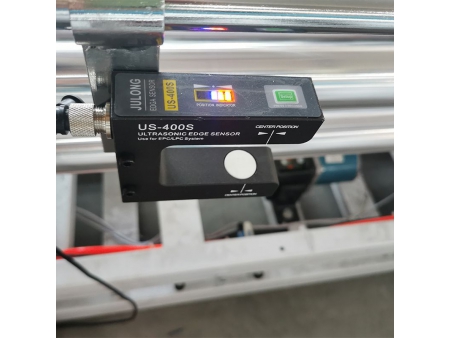

Unwinder With automatic tension control and EPC, featuring AC motor controller and a dancing roller

Sealing Unit Double sealing bar to reinforce the seal on the side for added durability
Using superior quality copper, a sealing knife is employed to seal various parts, while the bottom is heated separately, allowing for precision and accuracy when creating perfect seals

Cutting Unit Flying knife cutting method

Loop Handle Sealing Unit

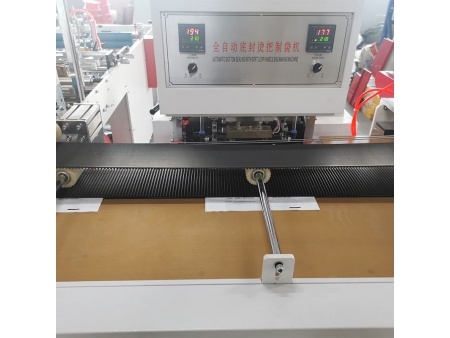

Collect Table

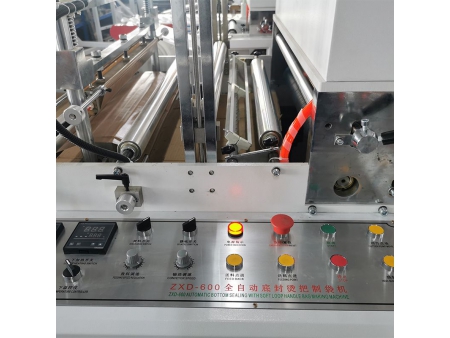

Control Panel
