Wind Power Busway

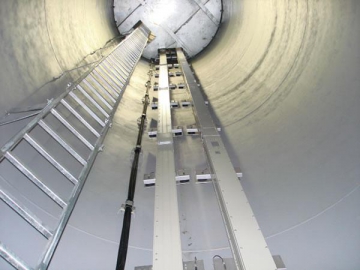

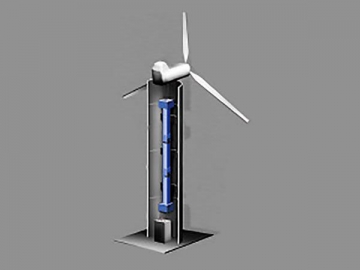

The Wetown WLK series wind power busway is an air insulated type power transmission conduit that is specifically designed for the transference of electrical energy generated from wind power. It is suitable for systems with rated voltage 1000V, rated current 500A single to 2300A, frequency 50 ~ 60Hz. Three-phase three-wire, three-phase, four-wire and three-phase five-wire systems are optional for 750kW to 3.6 MW wind turbine stator and rotor outlets.
Features of WLK Series Wind Power Busway

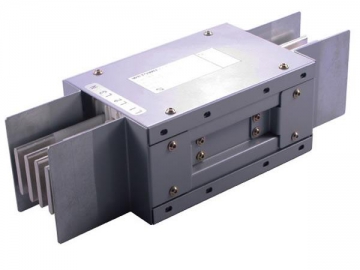

1. The WLK series busway features an air enhanced composite structure that prevents short circuiting and boasts high quality insulation effects with its galvanized steel housing and aluminum conductors.

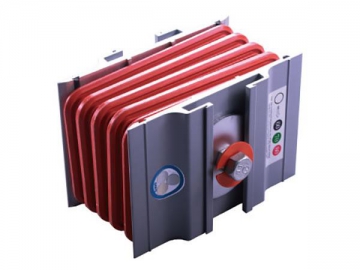

2. A Color coded temperature indicator is installed at the busway joint to give an early warning when overheating occurs at the joint.

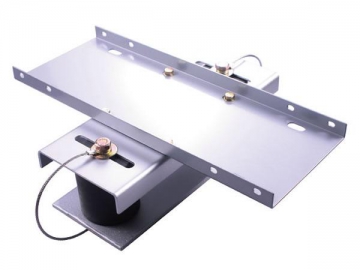

3. A special elastic support bracket is installed in the busbar of the unit that provides a uniform load and removes low frequency vibration on the structure.
4. The units are modular, making the system extremely easy to install.
