Gem Refractometer
Request a Quote
Gemological Instruments
Gemstone identification tools for measuring refractive index
A gemstone’s chemical composition and crystal structure determine its refractive index, making this one of the most stable optical properties used for identification. The gem refractometer is an essential instrument designed to measure the refractive index (RI), birefringence, and optical properties of gemstones with high precision. By providing accurate RI values, it serves as a critical tool in gem identification and classification.
Application

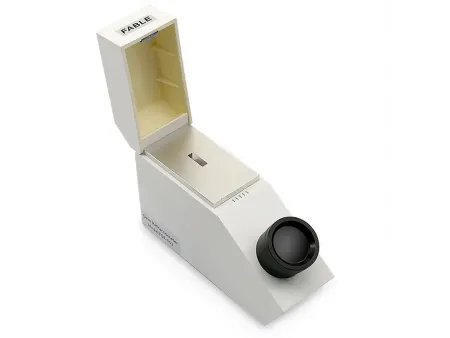

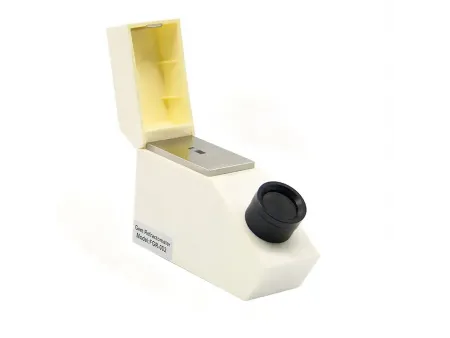

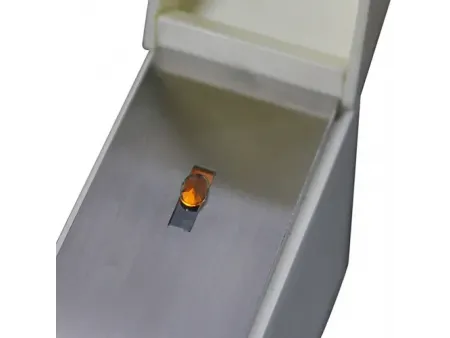

Our gem refractometers are a compact and portable instrument used for measuring the refractive index of polished gemstones within a range of 1.30 to 1.81. In addition to determining refractive index, it helps identify whether a gemstone is isotropic or anisotropic, distinguishing between single-axis and double-axis optical characteristics.
| Color | White |
| Finer scale | 1.40, 1.45, 1.50, 1.55 ... |

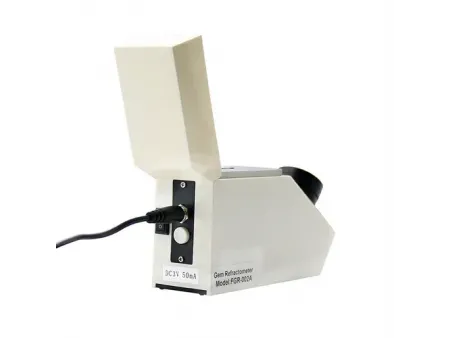

| Input voltage | 2×AAA batteries or DC3V direct current supply |
| Accuracy | ≤±0.002 |
| Measurement range | 1.35-1.85 (resolution factor 0.01) |
| Dimensions | 140(L)×42(W)×95(H)mm |
| Prism size | 14(L)×4(W)mm |
| Weight | 390g |

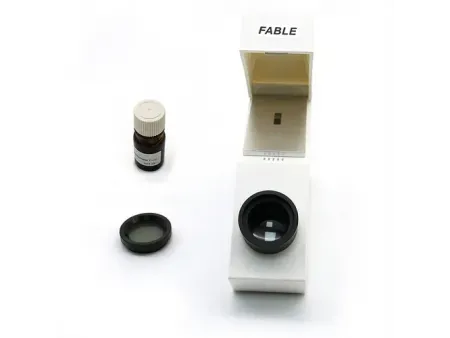

| Standard accessories included | Polarizer (1 pc) Refractive index liquid (1 bottle, 2ml, RI: 1.785±0.005) Power supply (or power cord) |
Features

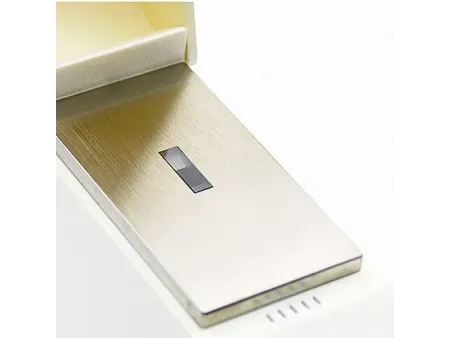

- Comes with stainless steel faceplate (size: 37×68mm), making it corrosion resistant, easy to clean
- Adjustable dual-level light source to optimize refractive index measurements for different gemstones.
- Built-in quasi-monochromatic LED light source, wavelength 589±3nm
- Prism made of synthetic cubic zirconia (CZ), featuring high hardness, abrasion resistant, long service life
- Eyepiece: 32mm in diameter, 4x magnification, wide field

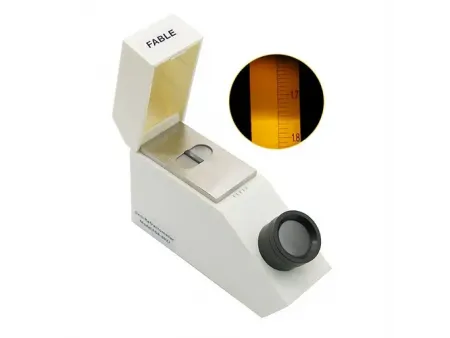

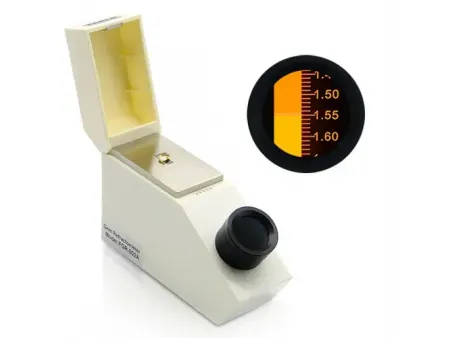

- Enhanced scale precision, with markings every 0.05 interval for easier and more accurate readings.
| Color | White |
| Scale | 1.40, 1.50, ... |

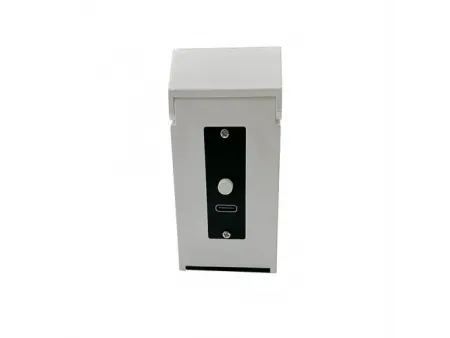

| Input voltage | 2×AAA batteries or Type-C 5V direct current supply |
| Accuracy | ≤±0.002 |
| Measurement range | 1.35-1.85 (resolution factor 0.01) |
| Dimensions | 140(L)×42(W)×95(H)mm |
| Prism size | 14(L)×4(W)mm |
| Weight | 390g |
| Standard included | Polarizer (1 pc) Refractive index liquid (1 bottle, 2ml, RI: 1.785±0.005) Power supply (or power cord) |
Features
- Comes with stainless steel faceplate (size: 37×68mm), making it corrosion resistant, easy to clean
- Built-in quasi-monochromatic LED light source, wavelength 589±3nm
- Prism made of synthetic cubic zirconia (CZ), featuring high hardness, abrasion resistant, long service life
- Eyepiece: 32mm in diameter, 4x magnification, wide field
| Color | White |
| Scale | 1.40, 1.50, ... |
| Input voltage | 2×AAA batteries or Type-C 5V direct current supply |
| Accuracy | ≤±0.002 |
| Measurement range | 1.35-1.85 (resolution factor 0.01) |
| Dimensions | 140(L)×42(W)×95(H)mm |
| Prism size | 14(L)×3(W)mm |
| Weight | 390g |
| Standard included | Polarizer (1 pc) Refractive index liquid (1 bottle, 2ml, RI: 1.785±0.005) Power supply (or power cord) |
Features
- Comes with stainless steel faceplate (size: 37×68mm), making it corrosion resistant, easy to clean
- Built-in quasi-monochromatic LED light source, wavelength 589±3nm
- Prism made of synthetic cubic zirconia (CZ), featuring high hardness, abrasion resistant, long service life
- Eyepiece: 32mm in diameter, 4x magnification, wide field

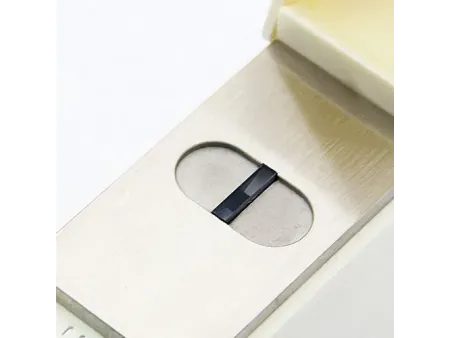

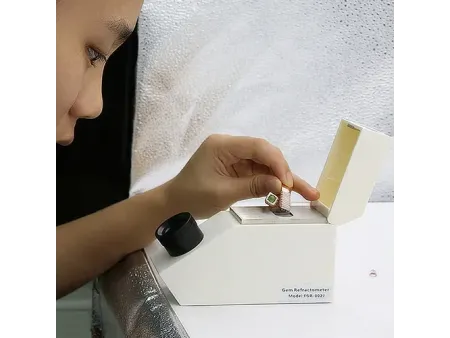

- With a raised prism only 3mm wide, it enables the measurement of mounted gemstones.
| Color | White |
| Scale | 1.40, 1.50, ... |
| Input voltage | 2×AAA batteries or Type-C 5V direct current supply |
| Accuracy | ≤±0.003 |
| Measurement range | 1.35-1.85 (resolution factor 0.01) |
| Dimensions | 140(L)×42(W)×95(H)mm |
| Prism size | 14(L)×4(W)mm |
| Weight | 330g |
| Standard included | Polarizer (1 pc) Refractive index liquid (1 bottle, 2ml, RI: 1.785±0.005) Power supply (or power cord) |
Features
- Comes with aluminum alloy faceplate (size: 37×68mm), making it corrosion resistant, easy to clean
- Built-in quasi-monochromatic LED light source, wavelength 589±3nm
- Prism made of synthetic cubic zirconia (CZ), featuring high hardness, abrasion resistant, long service life
- Eyepiece: 32mm in diameter, 4x magnification, wide field
| Color | Black |
| Scale | 1.40, 1.50, ... |
| Input voltage | Built-in rechargeable lithium battery, Type-C 5V charging port |
| Accuracy | ≤±0.003 |
| Measurement range | 1.35-1.85 (resolution factor 0.01) |
| Dimensions | 140(L)×42(W)×80(H)mm |
| Prism size | 14(L)×4(W)mm |
| Weight | 300g |
| Standard included | Polarizer (1 pc) Refractive index liquid (1 bottle, 2ml, RI: 1.785±0.005) Power supply (or power cord) |
Features
- Comes with aluminum alloy faceplate (size: 37×68mm), making it corrosion resistant, easy to clean
- Built-in quasi-monochromatic LED light source, wavelength 589±3nm
- Prism made of synthetic cubic zirconia (CZ), featuring high hardness, abrasion resistant, long service life
- Eyepiece: 32mm in diameter, 4x magnification, wide field
Accessories
Refractometer Fluid (Refractive Index Liquid)
Polarizer
