On-Board Charger (OBC)
Installed in PHEV and BEV electric vehicles to convert AC to DC for battery charging
The on-board charger (OBC) is an internal system installed in plug-in hybrid (PHEV) and battery electric vehicles (BEV) to convert alternating current (AC) into direct current (DC) required for battery charging. It plays a crucial role in allowing EVs to charge their high-voltage batteries while parked, ensuring greater driving range through improved battery capacity and energy efficiency.
With battery voltage levels standardizing around 450V, and rising to higher voltages, OBCs help shorten charging times and minimize internal wiring. Whether using AC power at home or public/private charging stations, today's OBCs range from 1kW single-phase to 22kW three-phase converters. These chargers are designed to ensure high efficiency and fast charging, making them an essential component for maximizing vehicle range and performance.
- Power: 1kW-22kW
- Output Voltage: 30V-850V
- Cooling method: natural cooling/air cooling/liquid cooling
- Bidirectional charging

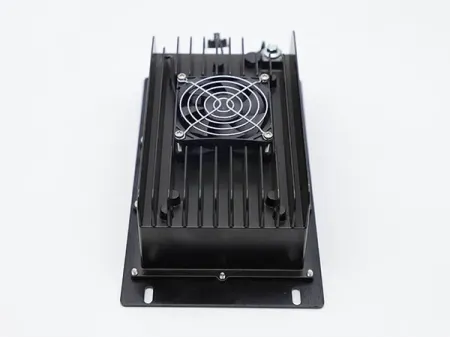

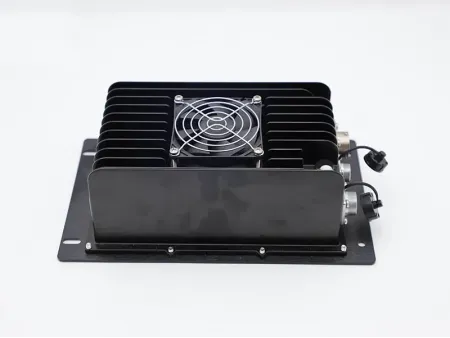

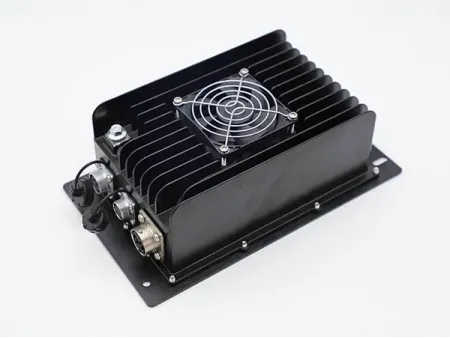

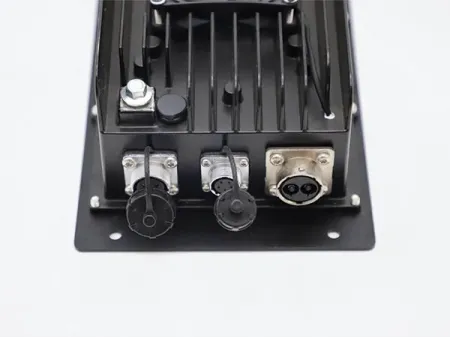

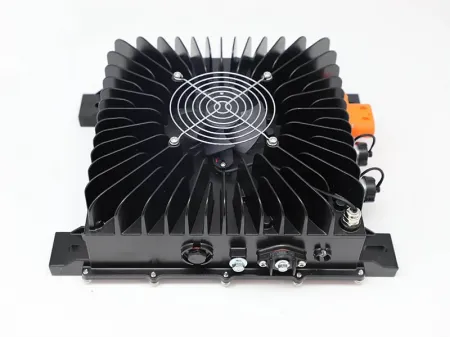

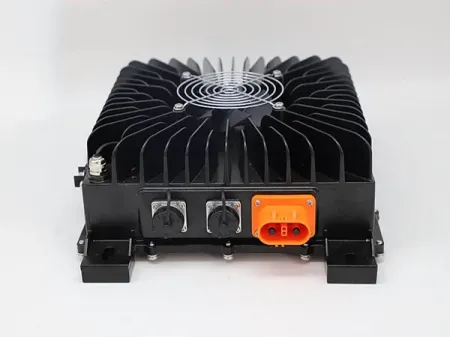

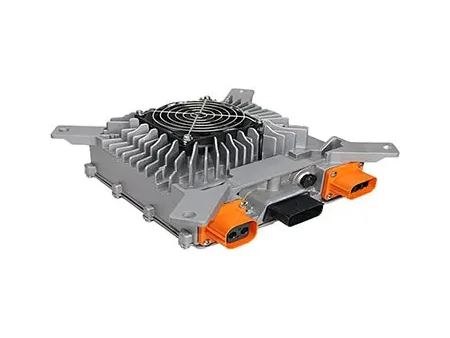

| Model | ||||||
| Nominal Output Voltage | 24V | 60V | 80V | 108V | 144V | 360V |
| Output Voltage Range | 0-36VDC | 0-80VDC | 0-105VDC | 0-140VDC | 0-180VDC | 0-450VDC |
| Max. Output Current | 60A | 35A | 25A | 18A | 13A | 6A |
| Model | |||||
| Cooling Method | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Output Voltage | 48V | 72V | 108V | 144V | 312V |
| Output Voltage Range | 35-70V | 50-107V | 80-161V | 100-215V | 200-450V |
| Output Current | 40A | 40A | 32A | 23A | 10A |
| Output Power | 2000W@220VAC 1600W@110VAC | 3300W@220VAC 1650W@110VAC | 3300W@220VAC 1650W@110VAC | 3300W@220VAC 1650W@110VAC | 3300W@220VAC 1650W@110VAC |
| Power | 3.3kW | ||||
| Weight | 4.6kg | ||||
| Model | ||||||
| Nominal Output Voltage | 360V | 144V | 108V | 72V | 48V | 24V |
| Output Voltage Range | 0-500VDC | 0-180VDC | 0-135VDC | 0-95VDC | 0-68VDC | 0-40VDC |
| Max. Output Current | 9A | 22A | 30A | 45A | 60A | 100A |
| Model | ||||||
| Nominal Output Voltage | 24V | 60V | 80V | 108V | 144V | 360V |
| Output Voltage Range | 0-36VDC | 0-80VDC | 0-105VDC | 0-140VDC | 0-180VDC | 0-450VDC |
| Max. Output Current | 120A | 70A | 50A | 36A | 26A | 12A |
| Type | Model | Nominal Output Voltage | Output Voltage Range | Max. Output Current |
| 24V | 0-36VDC | 180A | ||
| 60V | 0-80VDC | 105A | ||
| 80V | 0-105VDC | 75A | ||
| 108V | 0-140VDC | 54A | ||
| 144V | 0-180VDC | 39A | ||
| 360V | 0-450VDC | 18A | ||
| 24V | 0-36VDC | 180A | ||
| 80V | 0-105VDC | 75A | ||
| 108V | 0-140VDC | 54A | ||
| 144V | 0-180VDC | 39A | ||
| 360V | 0-450VDC | 18A |
| Type | Model | Nominal Output Voltage | Output Voltage Range | Max. Output Current |
| 72V | 0-95VDC | 90A | ||
| 48V | 0-68VDC | 120A | ||
| 24V | 0-40VDC | 200A | ||
| 720V | 0-850VDC | 9A | ||
| 540V | 0-720VDC | 12A | ||
| 360V | 0-500VDC | 18A | ||
| 144V | 0-180VDC | 44A | ||
| 108V | 0-135VDC | 60A | ||
| 80V | 0-105VDC | 80A |
| Model | ||||
| Cooling Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Output Voltage | 115V | 144V | 312V | 540V |
| Output Voltage Range | 70-177V | 95-202V | 200-450V | 400-618V |
| Output Current | 58A | 46A | 20A | 14A |
| Output Power | 6000W@220VAC 3300W@110VAC | 6000W@220VAC 3300W@110VAC | 6000W@220VAC 3300W@110VAC | 6000W@220VAC 3300W@110VAC |
| Power | 6.6kW | |||
| Weight | 8.5kg | |||
| Model | |||
| Nominal Output Voltage | 312V | 540V | 600V |
| Output Voltage Range | 200V-450V | 400V-680V | 400V-800V |
| Max. Output Current | 20A | 14A | 12A |
| Type | Model | Nominal Output Voltage | Output Voltage Range | Max. Output Current |
| 720V | 0-850VDC | 27A | ||
| 540V | 0-720VDC | 36A | ||
| 360V | 0-500VDC | 54A | ||
| 144V | 0-180VDC | 132A | ||
| 108V | 0-135VDC | 180A | ||
| 80V | 0-105VDC | 240A | ||
| 720V | 0-850VDC | 27A | ||
| 540V | 0-720VDC | 36A | ||
| 360V | 0-500VDC | 54A | ||
| 144V | 0-180VDC | 132A | ||
| 108V | 0-135VDC | 180A | ||
| 80V | 0-105VDC | 240A |

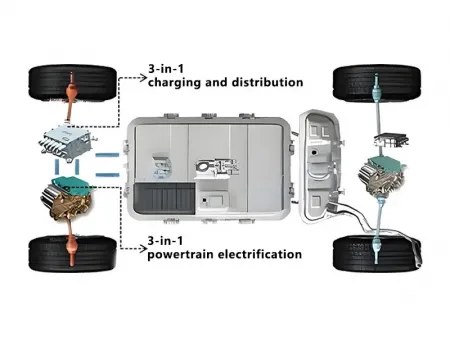

- Motor Controller
- OBC
- PDU
- DC-DC
- Gearbox
- Front Motor
-
High efficiency
The 3.3kW and 6.6kW OBC models offer excellent energy conversion efficiency, minimizing power loss during the charging process and ensuring a more sustainable energy transfer.
-
Compact design
With a lightweight and compact structure, our on-board charger easily integrates into various vehicle architectures without compromising space or adding unnecessary weight.
-
Advanced safety features
Equipped with multiple safety protocols, including over-voltage, over-current, and temperature protection, the OBC ensures safe and reliable operation under all conditions.
-
Smart charging
Supporting smart charging protocols, our on-board charger is compatible with diverse grid standards, offering flexibility and convenience for users.
-
Reliable performance
Designed to operate in a range of environmental conditions, our EV on-board charger withstands extreme temperatures, humidity, and vibrations, ensuring long-term durability.
-
Global compatibility
Compliant with international standards and regulations, the 3.3kW and 6.6kW OBC models are built for the global market, making them suitable for various regions worldwide.

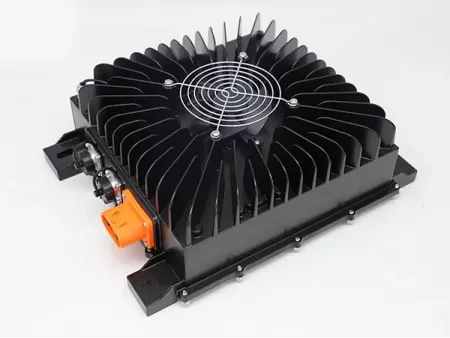

Our EV charging solutions are highly versatile, making them ideal for a range of applications, including passenger cars, commercial electric vehicles, yachts, electric motor engineering equipment, charging stations, and energy storage systems. Our on-board chargers are perfect for any setting that requires efficient voltage conversion. In particular, the 3.3kW on-board charger is the optimal solution for reliable and efficient charging on the go.

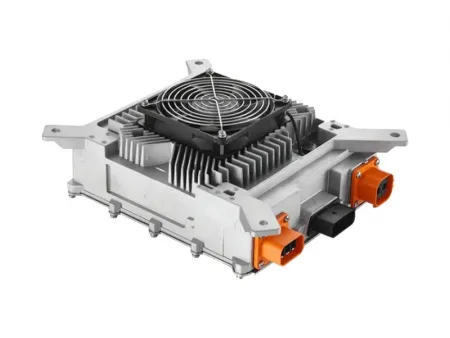

- Achieves up to 95% power efficiency and over 93% full-load efficiency, ensuring optimal energy usage during charging
- Supports input voltage range ofAC90V~AC264V 45~65Hz, making it compatible with global standards and allowing for grid fluctuations and vehicle export requirements
- Prevents battery damage during charging or shut down by using smart temperature control, significantly extending battery life
- Waterproof design and high protection level of IP67, offering protection from dust and immersion up to a depth of 1 meter
- Operates in temperatures ranging from -40°C to 85°C, with storage capabilities from -55°C to 85°C, meets automotive-grade standards for shock and vibration resistance (QC/T 895-2011)
- Features built-in thermal sensor and control with automatic recovery through thermal protection
- Equipped with extensive high-voltage and functional safety features for secure operation
- Includes LED charging indicators for real-time charging status display
- Supports various battery types, including LiFePO4 and lithium-ion batteries, with programmable charging modes. It can communicate in real-time with Battery Management Systems (BMS) via CAN communication or automatic control.
- Input current: 16A
- Input power factor: ≥0.99, very low THD
- Charging control: CAN communication or automatic enable
- Dimensions: 198mm (L) x 244mm (W) x 95mm (H) (air cooling)
- Weighs only 4.6 kg, making it easy to integrate into various vehicle systems
- Input over-voltage/undervoltage/reverse polarity protection
- Output overcurrent/short circuit protection, over-temperature protection
-

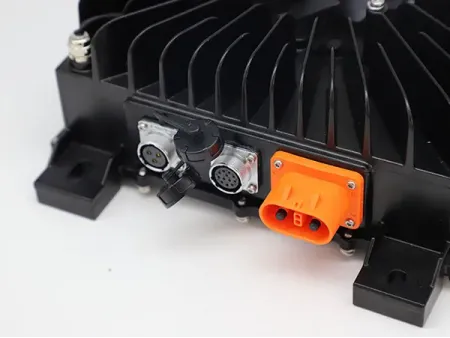

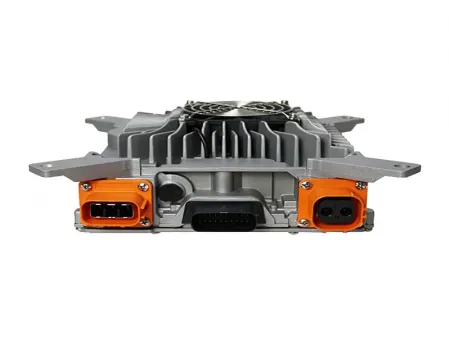

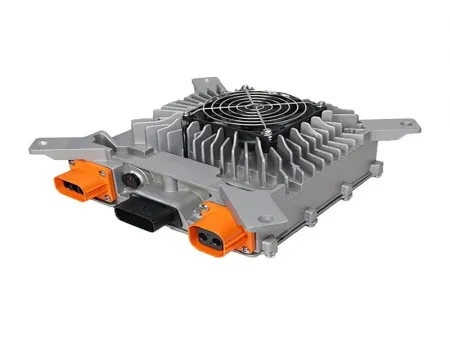

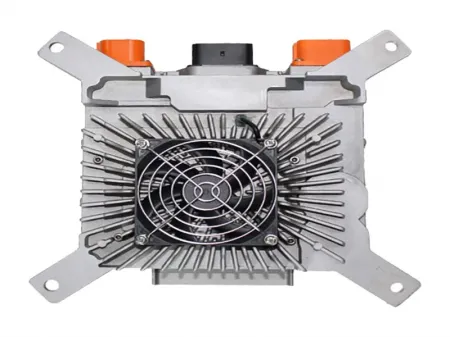

- Plastic high-voltage connector
-
- Molex 20-pin connector
-
- Plastic high-voltage connector
-
- Crimp terminals
