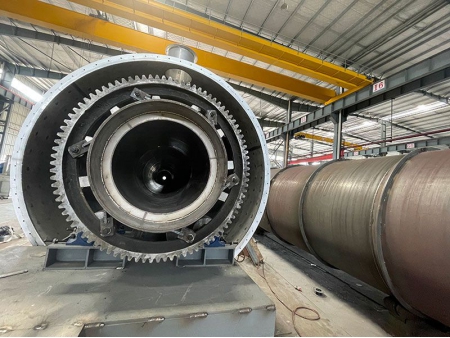

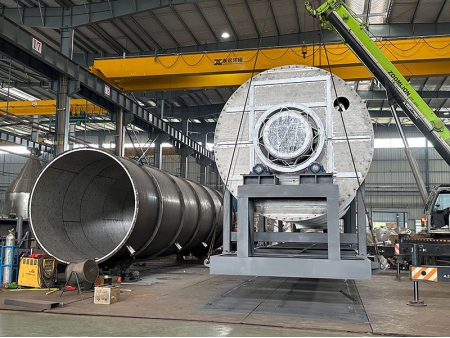

HYG Series Rotary Kiln Dryer/Calciner
Capable of tackling the challenges of drying and calcining heavy-duty materials, the rotary kiln dryer/calciner transforms wet materials into a uniformly processed product through an innovative design. Internal lifters move the materials through a rotating drum, where they interact with streams of hot air. Whether working with dense metals or chemical compounds, the system efficiently handles high-demand operations while optimizing heat transfer and energy use.
Applications
- Ideal for drying and calcining in industries like chemicals, mining, and metallurgy. Common materials include blast furnace slag, coal, metal powders, phosphate fertilizers, and ammonium sulfate
- Suitable for specialized processes involving unique powders and granules, such as HP foaming agents, distiller's grains, light calcium carbonate, activated clay, magnetite, graphite, and pharmaceutical residues
Specifications
| Rotary kiln diameter (mm) | Rotation speed (rpm) | Power (kW) | Temperature (℃) | Type |
| Ø400×6000 | 0.5-5 | 2.2-3 | 350~1050 | Electric heater |
| Ø600×8000 | 0.5-4 | 22-3 | Electric heater | |
| Ø800×10000 | 0.5-4 | 3-4 | Electric heating / Gas burner | |
| Ø1000×12000 | 0.5-3 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1200×14000 | 0.5-3 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1400×16000 | 0.5-2 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1600×18000 | 0.5-2 | 7.5-11 | Electric heating / Gas burner | |
| Ø1800×20000 | 0.5-2 | 7.5-11 | Electric heating / Gas burner | |
| Ø2000×22000 | 0.5-2 | 15-22 | Electric heating / Gas burner | |
| Ø2200×24000 | 0.5-1.5 | 15-22 | Electric heating / Gas burner | |
| Ø2400×26000 | 0.5-1.5 | 18.5-22 | Electric heating / Gas burner | |
| Ø2600×28000 | 0.5-1.5 | 18.5-22 | Electric heating / Gas burner | |
| Ø2800×30000 | 0.5-1.5 | 22-30 | Electric heating / Gas burner | |
| Ø3000×32000 | 0.5-1.5 | 22-30 | Electric heating / Gas burner |
Features
- High automation and substantial production capacity ensure smooth operations
- Optimized energy use thanks to low resistance to airflow within the drum
- Flexible enough to handle a wide variety of material characteristics
- Stable performance with low operational costs, delivering uniform and reliable drying results
Process Flow Diagram
